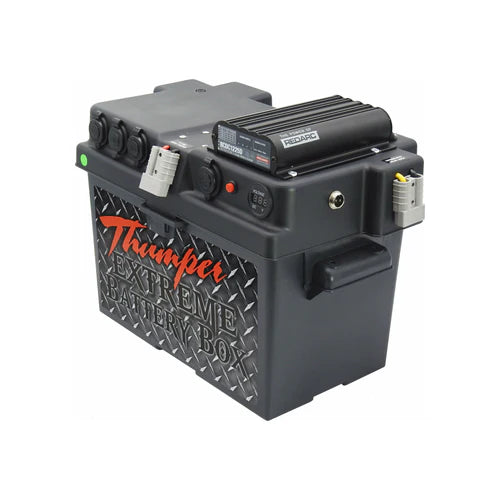

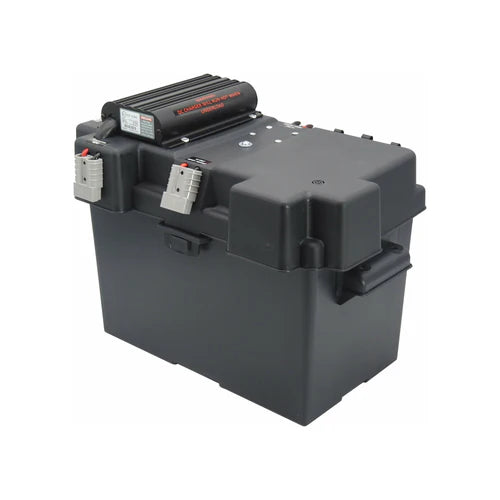

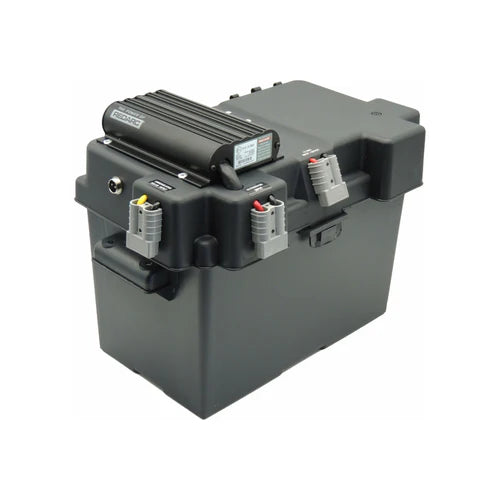

Built with the Dual Chemistry RedArc BCDC1225D, the Thumper DC Battery Box REDARC allows for In vehicle & solar charge via the use of a DC charger.
Designed for the use of lithium, GEL or AGM batteries; Altering the charging profile from AGM / GEL to LITHIUM is now as simple as changing one spade connection inside the Battery Box and that's it!

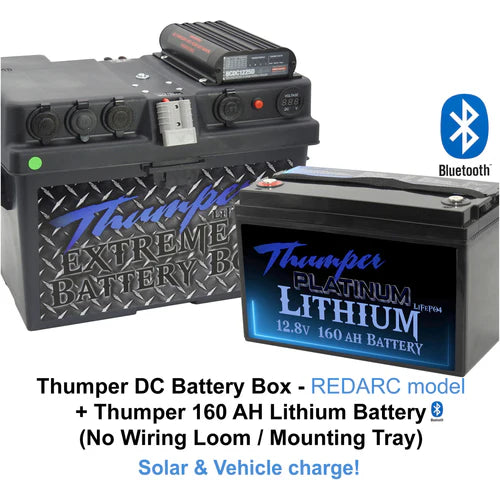

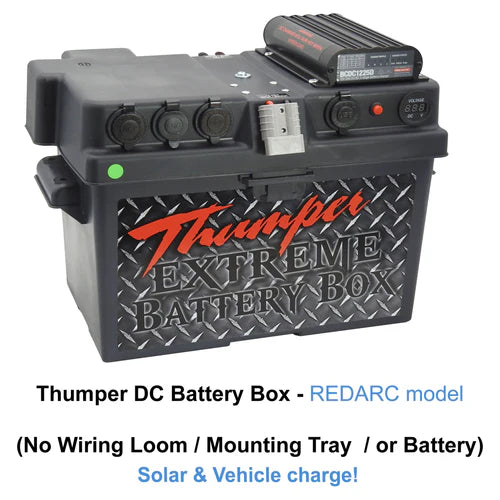

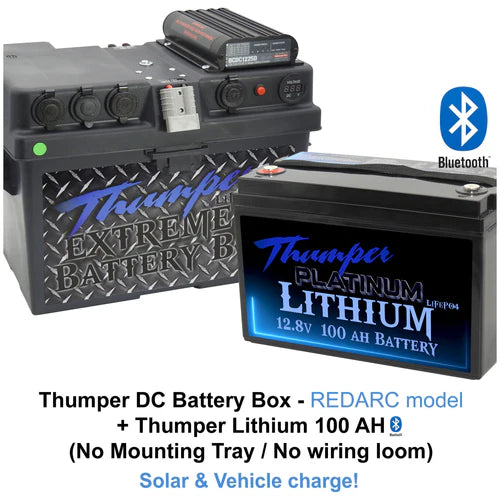

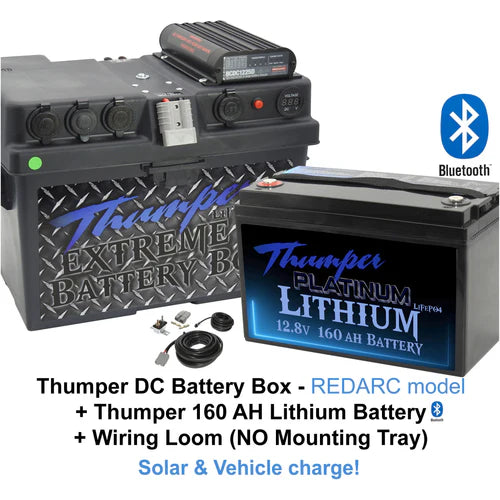

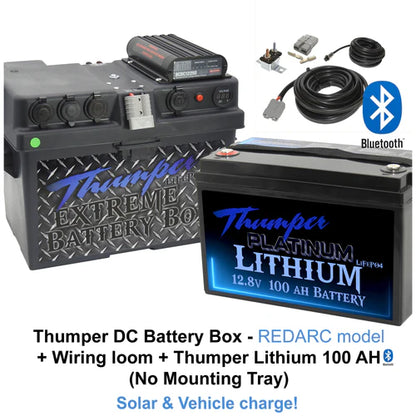

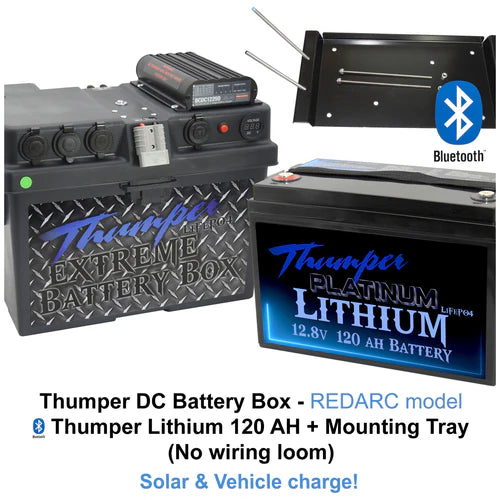

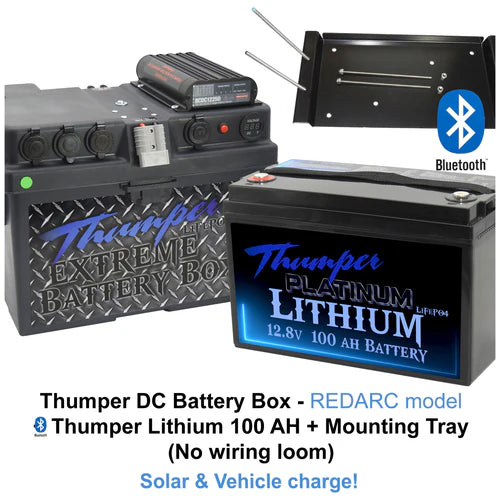

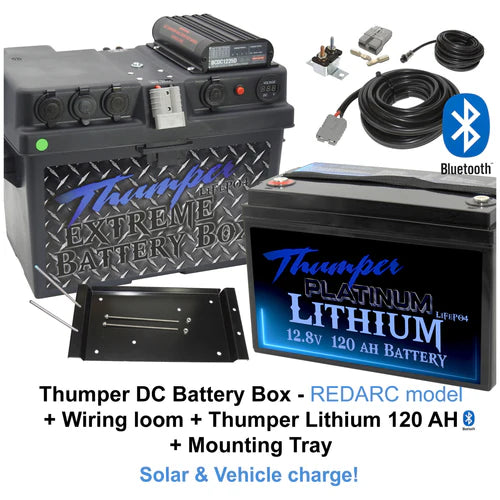

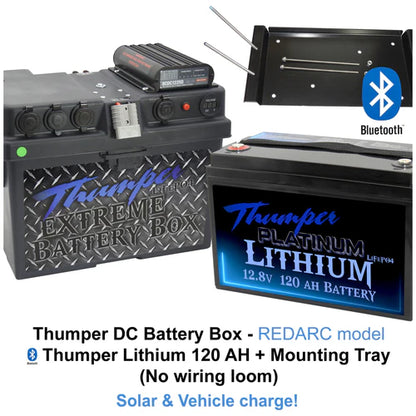

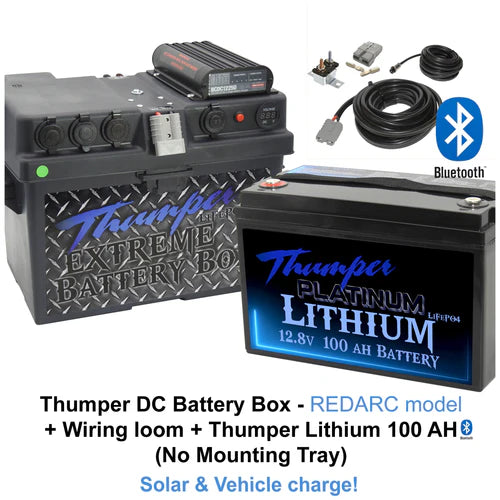

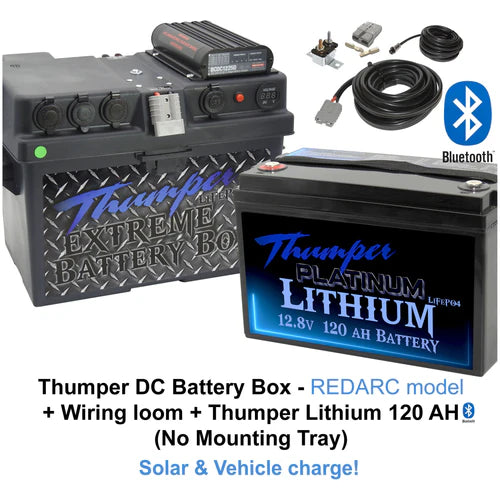

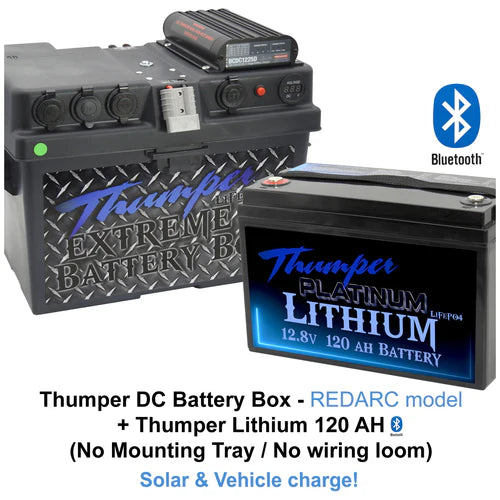

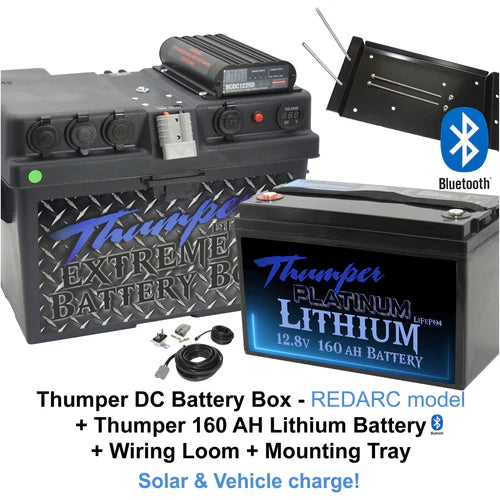

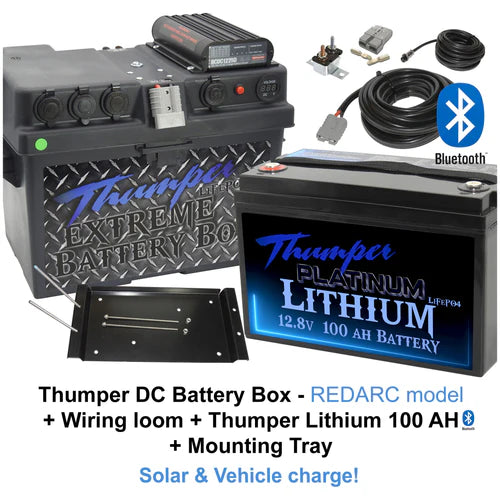

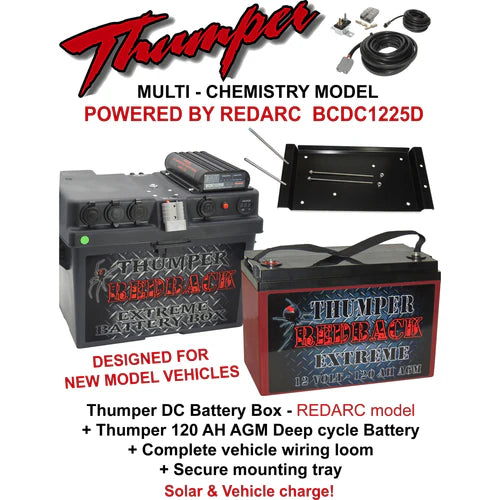

Available to purchase in multiple packages such as the DC box only, or packages to include Lithium or AGM batteries!
This unique battery box design is packed with numerous features and outlet sockets to accommodate for every individual.
Key Features
Built with the Redarc BCDC25D DC charger
Designed to suit new model vehicles with smart / variable alternators
Also compatible with older model vehicles
Will increase low voltage output from vehicle output to allow battery to reach 100%
Will act to isolate from the vehicle's main battery once ignition has been switched off
Designed with an independent Anderson connector for vehicle input
Designed with an independent Anderson connector for solar panel input (regulated connection - up to 400-450watts of solar)
Internally wired and protected with circuit breaker protection, allowing for an easy connection direct to the battery

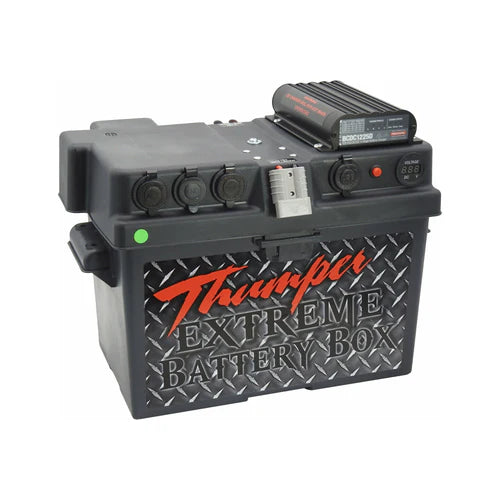

Equipped with multiple outlet sockets for running 12 Volt appliances

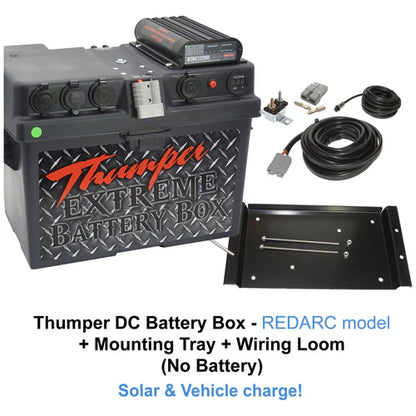

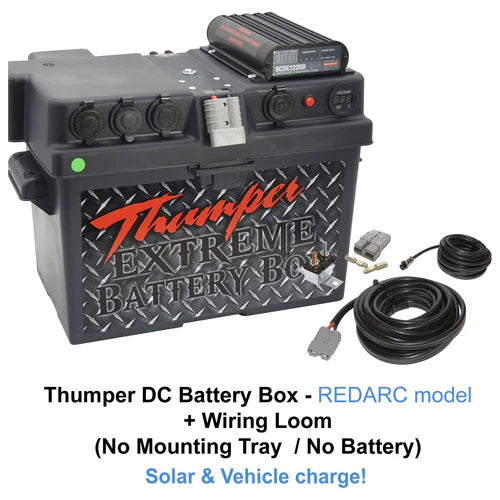

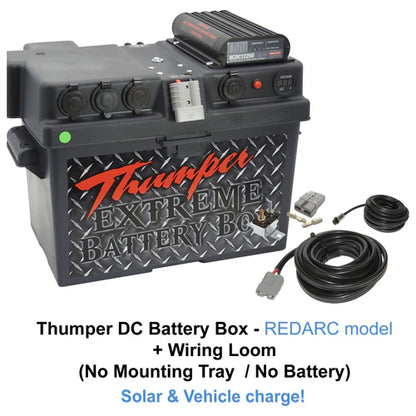

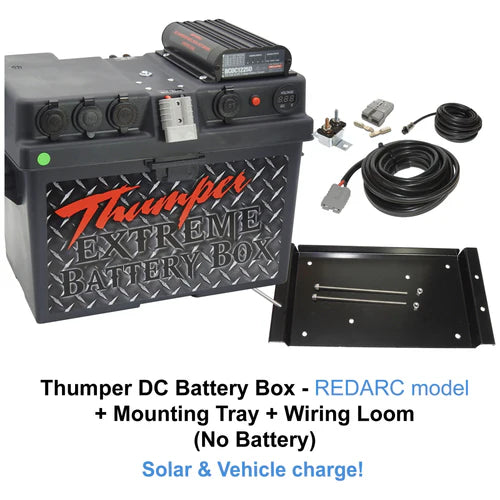

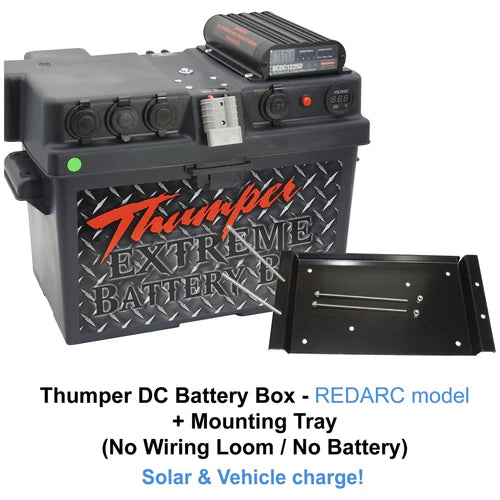

Available in multiple packages with and without wiring looms / mounting trays and battery.
This particular model suits a DUAL CHEMISTRY of both Lithium & AGM:
Comprising of:
1

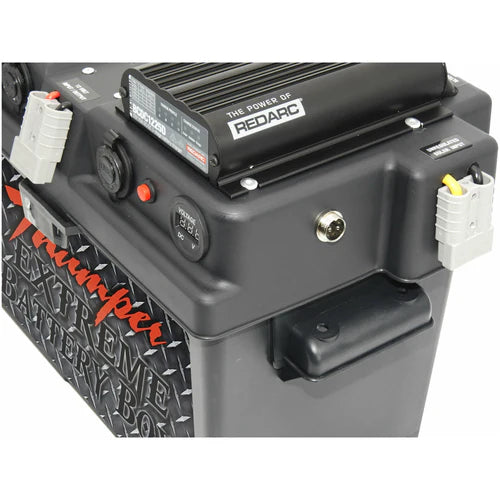

Redarc BCDC1225D 25Amp DC Battery charger (solar and vehicle compatible charge)
- suitable for Lithium / Gel / AGM / Calcium
2
Marine grade Cigarette socket - rated to 16 Amps Includes rubber cap design to protect all sockets
1
Engel Fridge type socket (2 prong design) - rated to 16 Amps
1
Dual USB socket - rated to 2.2Amp (min rating) - used to illuminate the Volt meter gauge and activate the USB
2
50 Amp Anderson connectors - Labelled "Input/Output" (one fitted to front of box and one on rear)
1

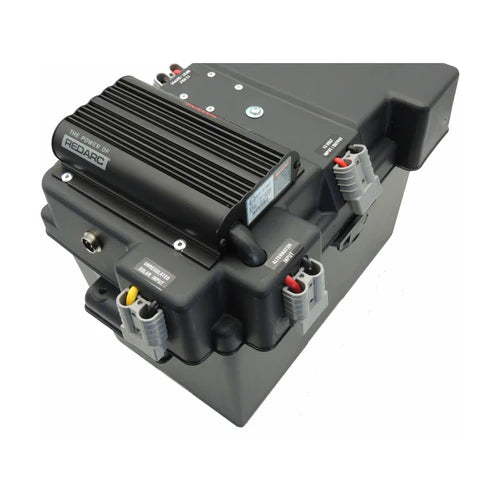

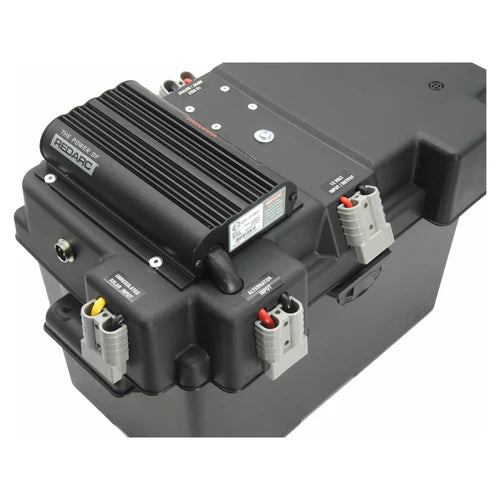

50 Amp Anderson connectors - designed purely for solar panel input - labelled "Unregulated solar input"
1
50 Amp Anderson connectors - designed purely for vehicle (alternator) input - labelled "Alternator input"
1
All internal cabling to allow you to simply connect straight to the battery terminals
1
2 year manufacturing warranty

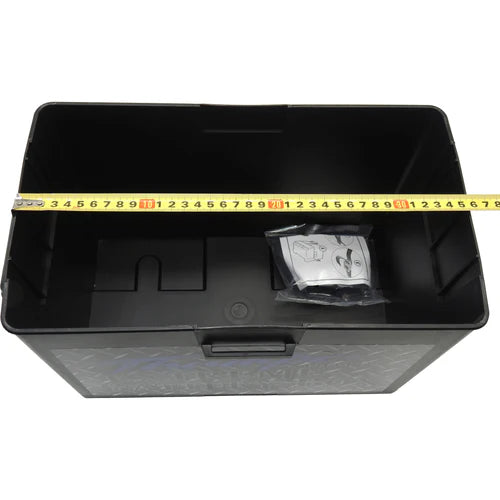

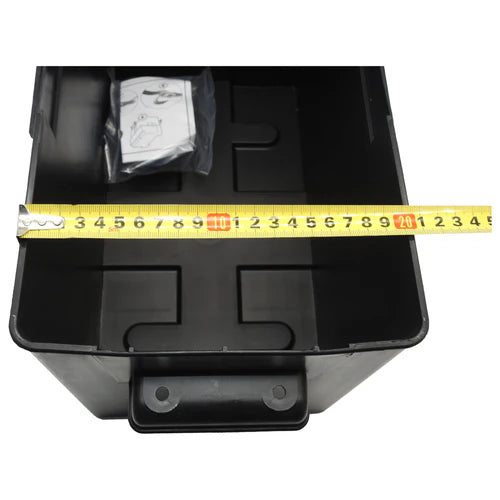

Internal Dimensions:
Length
330 mm
Width
183 mm
Height

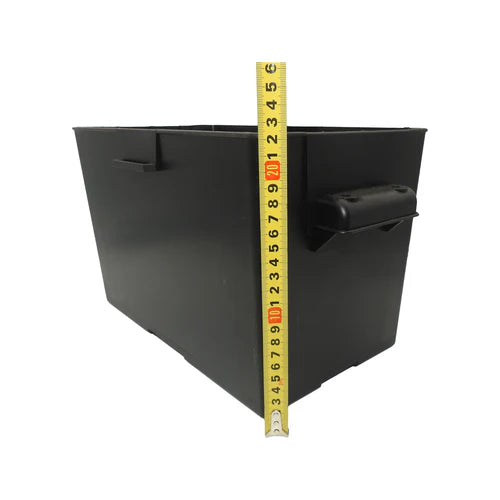

220 mm (base only - lid allows for further height)
External Dimensions:
Length
410 mm
Width
260 mm
Height
280 mm
* Dimensions includes all protruding outlet sockets *
