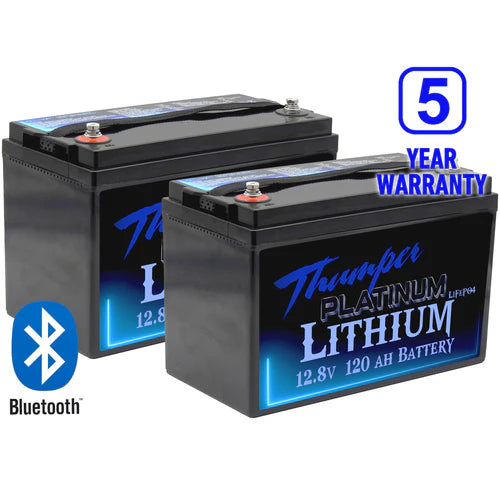

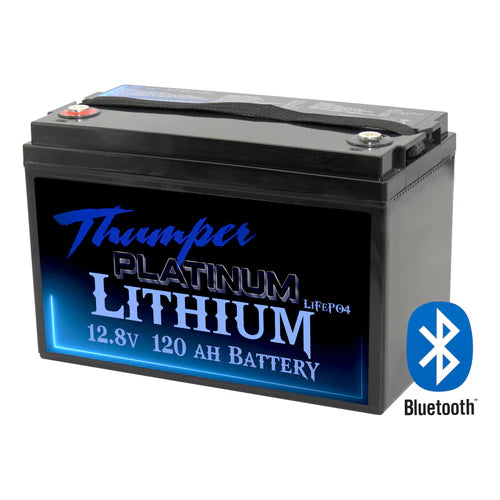

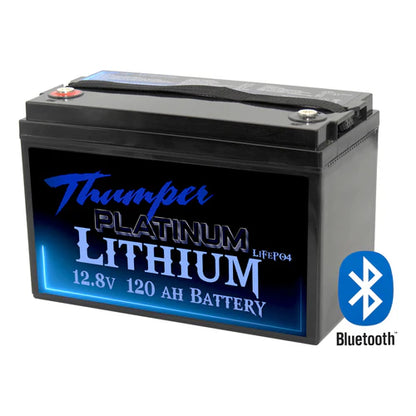

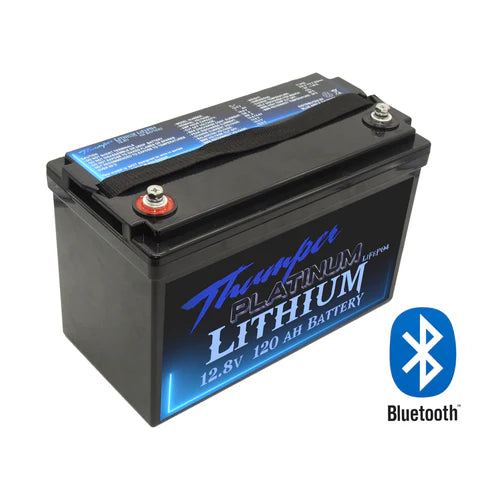

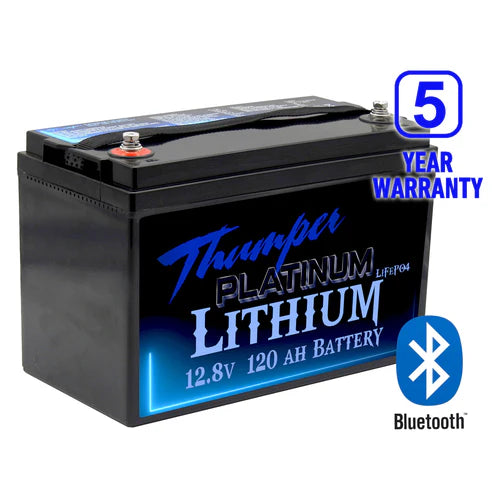

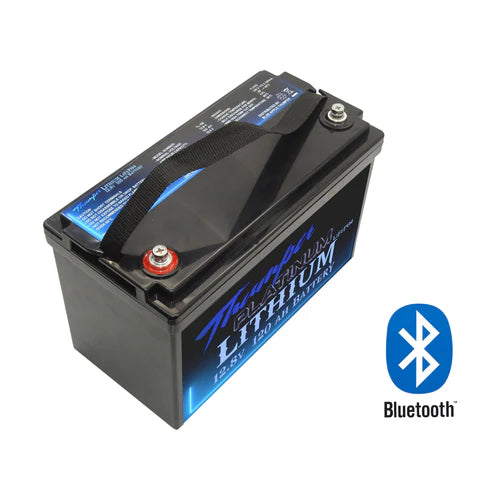

THUMPER PLATINUM LITHIUM 120AH LiFePO4 BATTERY + BLUETOOTH
THUMPER PLATINUM LITHIUM 120AH LiFePO4 BATTERY + BLUETOOTH
SKU:TL-120BT
Couldn't load pickup availability
Built with internal Bluetooth APP
What sets this battery apart from others?
The Thumper Lithium batteries are completely serviceable! That's right! We are so confident in our range of Lithium batteries that you can remove the lid and service the battery or even upgrade the BMS capacity at any stage!
Need to run larger loads from just the one battery? No problem. With the ability to upgrade the BMS, the Thumper 100 AH can allow for a 200 Amp Discharge capacity to supports loads up to 2400 watts!
Thumper Lithium LiFePO4 batteries are fully sealed and are designed to be mounted on any angle for easy application.
Equipped with an internal battery management system (BMS), the Thumper Lithium offers safe charging and discharging with over temperature protection, under and over voltage cut off protection and also internal short circuit protection.
The LiFePO4 range of batteries are less than half the weight of a traditional AGM battery, whilst still offering all of the benefits of a heavy duty deep cycle.
These batteries are designed to hold the terminal voltage higher throughout each cycle, resulting in an increase depth of discharge and a longer overall run time with heavier draw appliances.
These batteries are quality! Check out the internal BMS on this battery compared to cheaper brands
Features:
• Less than half the weight of a traditional lead acid battery
• Higher voltage maintained for longer run times with appliances
• Proven quality and reliability
• Compatible with all chargers with a LITHIUM setting
• 5 year warranty
• Increased cycles compared to traditional lead acid
• Designed to be wired as parallel OR series
• Parallel connection is non-limited
• Max series voltage is 48 Volt (max 4 series)
• This battery is NOT designed for starting purposes or under bonnet applications
• In built Bluetooth monitoring system!
*Please note that all upgrade options to BMS are modified after purchase and will incur 24 hours delay in dispatch time
Technical Specifications:
| Model No. | TL-120BT |
| Nominal Voltage | 12.8 V |
| Rated Capacity | 120 AH |
| Cell Type / Chemistry | Prismatic / LiFePO4 |
| Bluetooth |
Yes |
Dimensions and Weight:
| Length | 328 mm |
| Width | 172 mm |
| Height (Total) | 220 mm |
| Weight | 10.95 Kg |
Operating Temperature Range:
| BMS High temp cut out / Reconnect | 80˚C / 50˚C |
| Discharge | -20˚C ~ 60˚C |
| Charge | -20˚C ~ 45˚C |
| Storage | -5˚C ~ 35˚C |
Charging Methods:
| Recommended Charge Current | 10 ~ 50 Amps |
| Max Charge Current | 80 Amps |
Discharge:
| Max discharge current (continuous) | 120 Amps *upgrade available |
| Peak discharge current (1-3 seconds) | 300 Amps |
| BMS Current cut off | >100.5A 10s |
| BMS Current cut off | >120.0A 3s |
| BMS Current cut off | >150.0A 1s |
| BMS Voltage cut off / Reconnect | 10.0V / 12.0V |
| Self Discharge per month: | ≤3% |
| Warranty | 5 years from date of purchase | as of June 2023 |

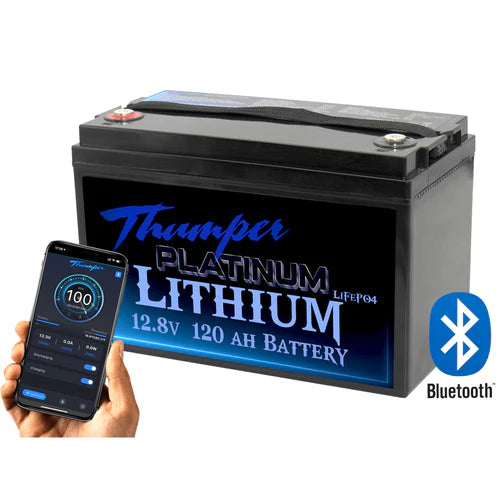

Bluetooth APP:
The App offers the ability to monitor and control:
|
|
Bluetooth App | Home screen - explained:
Bluetooth App | Control Screen - Explained:
The Bluetooth app offers the ability to control the charge or discharge loads from the battery by remotely switching ON / OFF the power via the Bluetooth App.
Simply go into the CONTROL panel of your Bluetooth App and press:
CHARGE SWITCH - to remotely disconnect all charge loads from the battery. Turning this particular switch OFF will prevent the battery from taking a charge load from any charging source, including the DC battery charger.
DISCHARGE SWITCH - to remotely disconnect all discharge loads from the battery. Turning this particular switch OFF will prevent the battery from running any appliance as it disconnects all loads from the battery. This is the perfect option to use when storing the battery.
Yes! The Thumper Lithium is designed to be continually charged and discharged fr the purposes of running all accessories, such as fridges, lighting, inverters and more.
The Thumper Lithium 120 AH has a continual discharge rate of 120Amps (1440watts) as standard. The batteries also have a MAX peak discharge of 300 Amps for 1-3 seconds (surge capacity).
This means that if you are using only one battery, then the maximum Inverter size that would successfully run on the Thumper 120 AH would be 1440 watts.
Need a bigger BMS? We can upgrade our BMS boards to higher capacity, so you can run larger appliances from the one battery! See our drop down link for upgrade options on the BMS.
How many batteries do I need to run my Inverter?
- 1x 120AH 120A BMS Battery = Up to 1440 watt inverter
- 2x 120AH 120A BMS Battery = Up to 2880 watt inverter
- 3x 120AH 120A BMS Battery = Up to 4320 watt inverter
- 4x 120AH 120A BMS Battery = Up to 5760 watt inverter
- 1x 120AH 200A BMS Battery = Up to 2400 watt inverter
- 2x 120AH 200A BMS Battery = Up to 4800 watt inverter
- 3x 120AH 200A BMS Battery = Up to 7200 watt inverter
- 4x 120AH 200A BMS Battery = Up to 9600 watt inverter
The Thumper Lithium is protected internally with a BMS (Battery Management System), meaning that it will protect the battery against overcharge / low voltage and excessive discharge drain.
Example: If you connect a 2000 watt Inverter (166Amp total draw) to the Thumper Lithium battery, then the battery would allow you to run UP TO 1200watts (100Amps) from the Inverter. If the draw exceeded this 100 Amps, then the BMS inside the battery would disconnect and cease providing power to your system.
Once the load has been disconnected from the battery, the BMS will reconnect itself within a few seconds and the battery will be ready to use again.
Can I mount the Lithium battery on its side?Yes! The Lithium battery is completely sealed and is designed to allow you to mount on any side.
As with any Lithium battery, it is recommended to use a lithium battery charger. Lithium Battery chargers charge the battery at a slightly higher voltage and run through compatible charging stages to suit the Lithium's chemistry. Charging your battery with a Lithium compatible charger will help to prolong the life of your Lithium battery by ensuring it is receiving a full rate of charge.
Can I use my portable solar panel on the Thumper Lithium Battery?The Thumper Lithium is designed to charge from any system that is compatible to charge on a Lithium setting.
Providing your solar regulator is designed to suit Lithium chemistry, then it would be perfectly suitable to charge from your portable solar panel.
The Thumper Lithium Battery will not charge from an unregulated panel as the internal BMS will disconnect any input charge that exceeds 15 Volts.
What is the life expectancy of the Thumper Lithium battery?The Thumper Lithium is rated over cycles. A cycle is the process of charging and discharging the battery. The Thumper Lithium is rated to a minimum of 2000 cycles.
Yes! The Thumper 120 AH are designed to be wired in parallel and are non-limited. This means you can build your 12 volt system as large as you desire with use of these batteries!
No. As the BSM is different in both the 100 AH and the 120 AH, it means the two batteries are not designed to be linked to one another.
Can I wire the Thumper Lithium in Series?Wiring in series converts a 12 Volt battery into either a 24Volt / 36Volt or 48Volt system (depending on how it is wired)
The Thumper 120 AH runs a more sophisticated internal BMS, which makes it perfectly suited to run in series UP TO 48 Volts. This battery will allow you to build a 24 Volt / 36 Volt or 48 Volt system.
We now offer an upgrade option for a 200 Amp START BMS select option above
What voltage is fully charged in a Lithium Battery?Approx 13.2 ~ 13.4 Volts is 100% charged in a Lithium battery.
The use of a Lithium compatible gauge, such as the Victron SmartShunt, is recommended in order to accurately monitor the state of charge in a Lithium battery set up.
Using voltage to monitor the state of charge in a lithium battery is unfortunately not accurate.
As the voltage in a lithium battery remains higher throughout the cycle life of the battery, it means that Thumper Lithium will read in the 12's when it is nearing the end of it's capacity. When the remaining capacity of the battery has been exhausted, the battery's BMS will disconnect and the battery will shut down.
The short answer to this is Yes, and No.
A voltage meter will provide you an 'indication' on the state of charge on a lithium battery. However, the slightest change in the digital reading of voltage can mean over 50% of your battery's capacity.
The most accurate method to monitor this lithium battery is by the use of the free bluetooth app available in your App store.
What does the 12.8V on the front of the battery represent?Much the same as how a lead acid battery is configured, The Thumper lithium battery is constructed using a multiple of smaller cells linked internally.
Now with 5 year warranty from date of original purchase | as of June 2023
