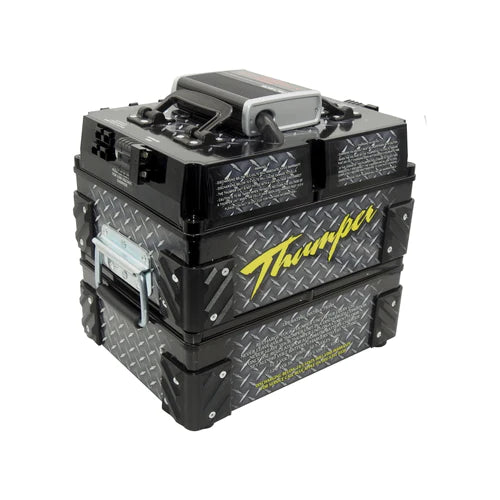

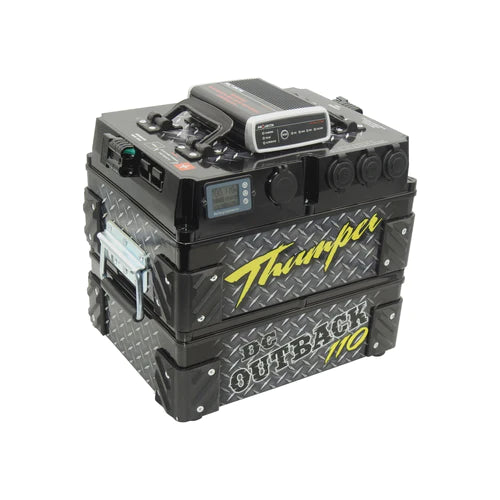

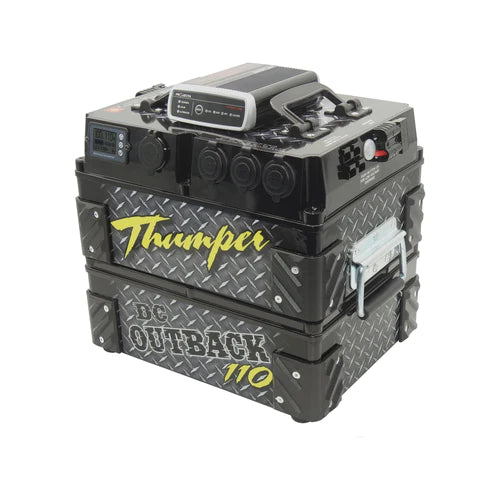

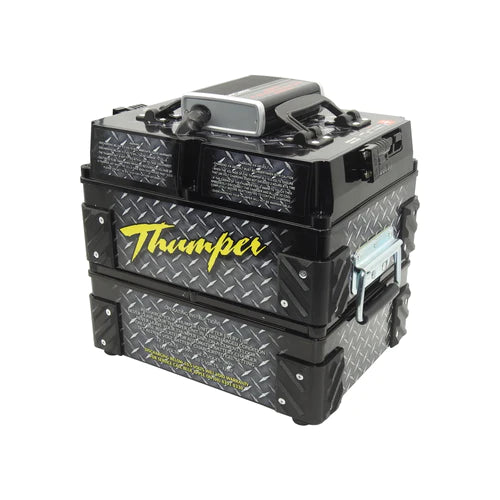

THUMPER OUTBACK 110AH PROJECTA BATTERY PACK

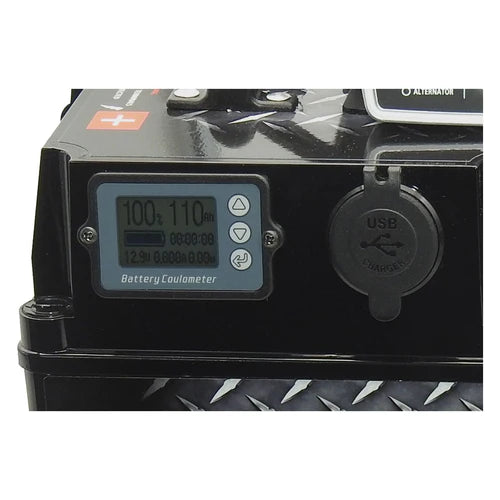

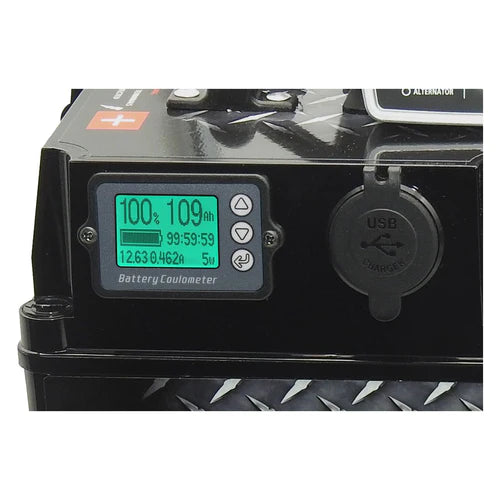

The Thumper Outback has been re-designed with a SMART DISPLAY LCD Digital screen and internal 50 Amp shunt to allow you to monitor everything about your dual battery system, including:

• Battery Voltage

• Remaining Battery capacity (Amp Hour capacity)
• Remaining run time at current load / remaining time left to recharge
• Discharge / or / recharge load in Amp reading
• Discharge / or / recharge load in Watt reading

The new range of Thumper Outback DC units unit are fitted with the latest technology in DC charging; The Projecta IDC25 (V5). This particular DC charger is designed to allow for an optimal input charge to be harnessed from the use of both newer and older model vehicles as well as unregulated 12 volt solar panels.

The Projecta IDC25 has been hardwired to the Thumper with internal circuit breaker protection and heat sync protection.

The IDC25 used on the Thumper Outback DC is designed to alter the initial voltage of your vehicle’s alternator output (input voltage 9-32Volts) in order to produce the voltage selected via the mode setting on the IDC25 (for example: selecting the mode to GEL setting will allow for the charging voltage of approx. 14.2 Volts when charging and a float voltage of 13.8 Volts).

As the input charge to the DC allows for voltages between 9-32Volts, the Thumper Outback DC is now compatible to charge from 24 volt vehicles!

The DC charger will operate like a step down converter, dropping an input voltage of 32 volts down to your selected chemistry (eg. Gel = 14.2 Volts).

The IDC25 unit offers a MPPT Solar Regulator rated to 25 Amps. The regulator has been hardwired into your Thumper Outback DC unit via an independent 50 Amp Anderson connector labelled ‘Unregulated solar input’. This outlet has been designed solely for the use of an unregulated solar panel (approx. input capacity 400-450 watts).

The DC charger will act as the battery isolator to separate the vehicle main battery from the Thumper Outback when the ignition is OFF.

This will reserve the main start battery for the sole purpose of starting the vehicle.

The Outback has two methods of isolation:

- Normal operation (DC charger to act as isolator)

- Over-ride option for low voltage vehicles.

When left to operate normally (over-ride switch not engaged), the DC charger will act as the in-vehicle battery isolator. This component will isolate the Thumper pack from the vehicle's starter battery when your vehicle’s charging voltage falls below 12.7 volts. This function acts to protect the main start battery from discharge.

If left to operate normally, the DC charger will act as voltage sensitive. Voltage sensitive operation will require the start battery to reach and maintain 13.2 volts for approx 90 seconds in order to engage the DC charger and allow for charge to begin.

If the vehicle’s output voltage falls below 12.7 volts, or fails to hold 13.2 volts on start, then the 'over-ride' button on the Thumper must be used. This 'over-ride button' acts to over-ride the voltage required to engage the DC charger, allowing it to start charging at a lower voltage.

When using the 'over-ride', the isolator function in the DC becomes void (will not operate). If no isolator is installed in the vehicle when the over-ride is in use, it can result in discharging the main starter battery.

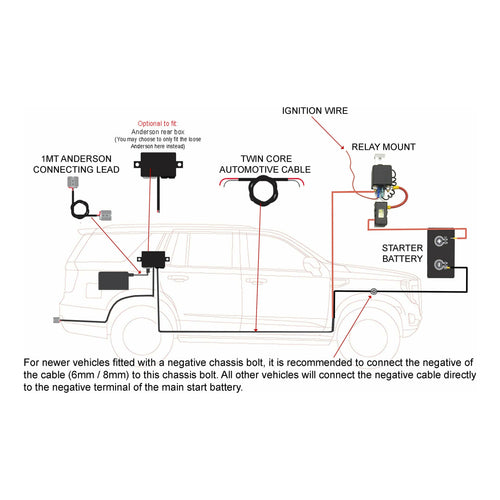

To overcome this issue, Thumper have provided a complete vehicle wiring loom (TUR-L) with every purchase of the Thumper Outback battery packs.

Simply install the TUR-L (provided) in the vehicle (suits all make and model vehicles) to allow the use of the 'over-ride' without the fear of discharging the starter battery.

In order to over-ride any low voltage issues, Thumper has equipped the Outback battery pack with a low voltage 'over-ride' switch.

The 'over-ride' switch is designed to work in conjunction with the DC charger and TUR-L (provided) to allow the DC charger to work as 'ignition activated' when needed.

SWITCH IN ON POSITION:

When 'ON' the ignition switch will illuminate BLUE and will act to immediately engage the DC charger.

The DC charger will cease to operate as an ISOLATOR when the 'over-ride is ON and the vehicle's ignition is OFF

Note: The TUR-L must be fitted to the vehicle as the Relay mount in this kit will act as the isolator required to separate the Thumper from the main vehicle battery.

SWITCH IN OFF POSITION:

When the 'over-ride' is 'OFF', the DC charger will operate as normal ('voltage sensitive').

The DC charger requires a minimum voltage of 13.2 volts from the main start battery in order to engage charging. When the main vehicle battery falls below 12.7 volts (indicating vehicle is no longer charging), then the DC charger will act to isolate the Thumper Outback from the vehicle's starter battery.

The 'over-ride' switch will illuminate BLUE when activated. At this stage the ISOLATOR will not operate in the DC Charger.

The 'over-ride' will have no illumination when OFF. The DC charger will operate as Voltage sensitive.
