THUMPER

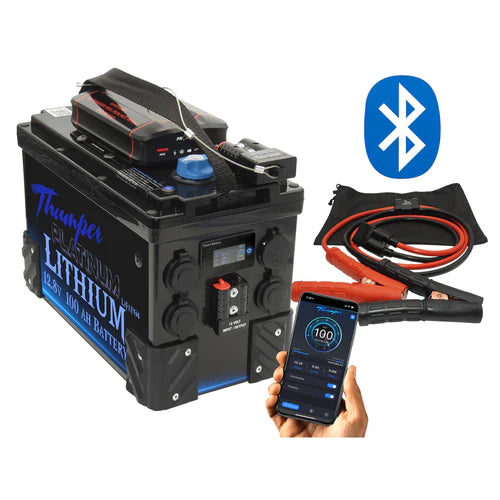

THUMPER LITHIUM JUMP START HUB 100AH PROJECTA IDC25L + BLUETOOTH

THUMPER LITHIUM JUMP START HUB 100AH PROJECTA IDC25L + BLUETOOTH

TBH100P-JS

$1,799.00
$1,799.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

The Lithium Battery Hub that JUMP STARTS!

TBH100P-JS - BLUETOOTH

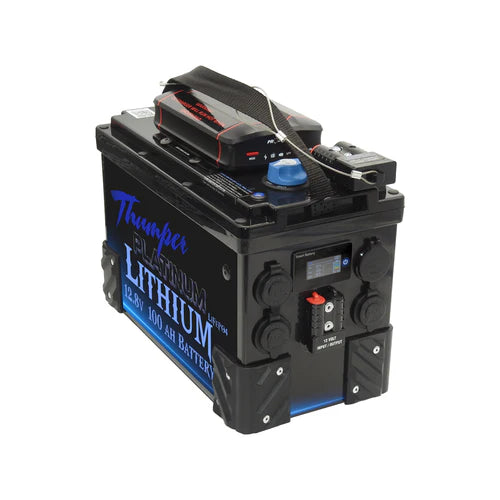

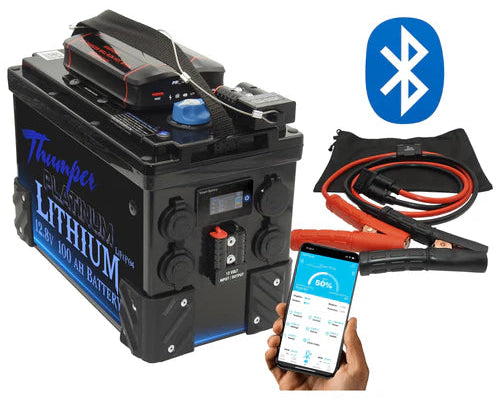

The Thumper Battery Hub has been designed to offer portability and reliability with its light weight and compact design. Equipped with Bluetooth technology for remote battery monitoring of capacity, cell temperature and remote power shut down and to top it off, the ability to JUMP START; The features of the Thumper Lithium Battery Hub are truly second to none.

The ultimate package for the everyday use!

  • Run 60Lt compressor fridge for 2-3 days independently!
  • Charge from any make / model / year vehicle via the DC charger
  • Sophisticated vehicle charging - complete wiring loom included
  • MPPT Solar charging - rated to 25 Amps (400watt -450 watts)
  • 240 Volt battery charger included
  • Spike Protected and polarity protected leads for Jump Starting
  • 5 year warranty on DC Charger and Battery!

The Thumper Lithium Battery Hub offers 100% usable capacity down to 12.4 volts and is 100% Bluetooth monitored.

Package contents:

  • Thumper Lithium Battery Hub 100AH with 100% usable power (down to 12.4V)
  • Hardwired Projecta IDC25L DC Battery Charger

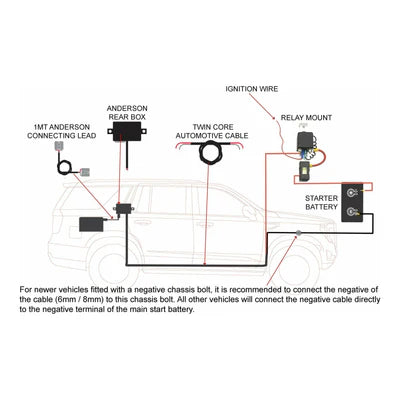

  • Complete vehicle wiring loom with 8B&S Cable
  • Dedicated LiFePO4 240 Volt 10Amp Battery Charger fitted with 50 Amp Anderson
  • FREE Bluetooth APP for battery monitoring

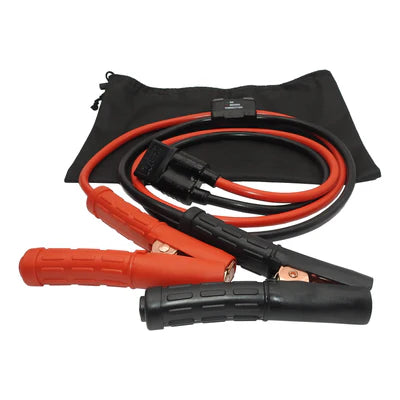

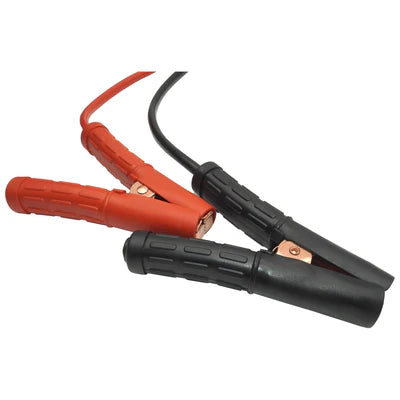

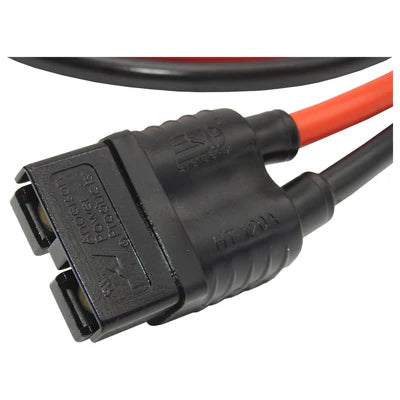

  • 1.5mt Spike Protected Jump leads (120Amp Anderson to Clamps) with storage pouch
  • Secure battery mounting tray with strap
  • 5 YEAR WARRANTY on battery and Projecta DC charger!



Specifications:

Part No. TBH100P-JS
Battery Capacity 100 AH usable capacity
BMS Capacity 200 Amps (2400 watts cont)
Max Starting Current
 900 Amps via 120 Amp Anderson
Max Discharge current
 2000 Peak Amps
Cell Type / Chemistry Prismatic / LiFePO4
IP Rating IP65
Case material ABS
BMS Built in YES - Bluetooth
Rating
 3C

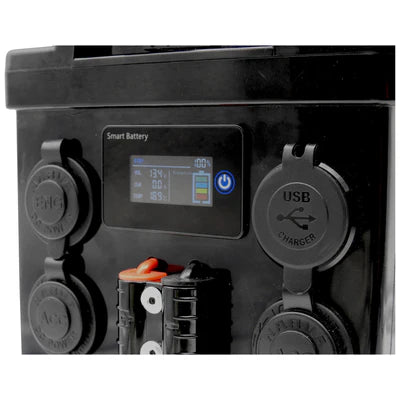

Gauge discharge monitoring INPUT / OUTPUT
 Yes >2Amp draw
Ideal vehicle Jump start capacity
 6Lt Petrol / 4-5Lt Diesel (recom.)

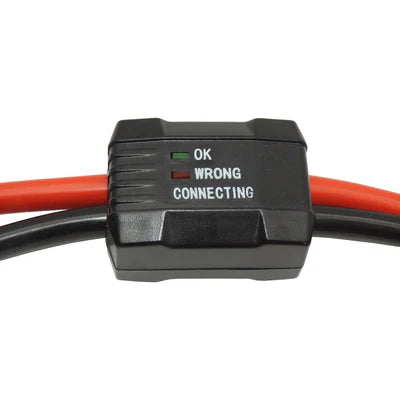

Jump lead protection
 Spike Protected / Surge Protected

Reverse polarity warning protection

Over and Under Voltage protection

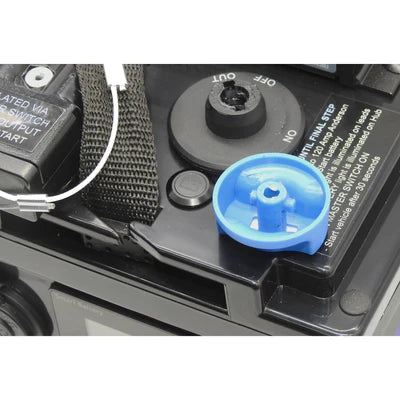

Master Switch Jump Start control



IDC25L Specifications

Part Code
 IDC25L
Brand
 Projecta
Output Current Rating (Cont.)
 25 Amp
Vehicle Input (Operating) Voltage 9 - 32VDC
Output System Voltage 13.8VDC
Maximum Charging Voltage 14.5v
Standby Current Draw <9.5 - 10.5mA
Solar Input (Operating) Voltage
 9 - 28VDC ( unregulated only )
Solar Input Max watts (approx)
 375 - 400 watts
Override available?
 Yes - via override switch on Hub
Warranty 5 years



DIMENSIONS & WEIGHT

Length (Total)
 355 mm
Width (Total)
 180 mm
Height (Total)
 260 mm
Weight
 12.00 kg



OPERATING TEMPERATURE RANGE

BMS High temp cut out / Reconnect 80˚C / 70˚C
Discharge - 23˚C ~ 80˚C
Charge -   3˚C ~ 80˚C
Storage
 - 20˚C ~ 45˚C



CHARGING METHODS

Recommended Charge Current 25 ~ 50 Amps
Max Charge Current 200 Amps
Recommended Charge Voltage 14.2 ± 0.20V
Max Charge Voltage 14.8 ± 0.20V



DISCHARGE

Max Usable capacity
 100 % at 12.4 Volts
Cycle life
 6000 cycles at   80% DOD

4000 cycles at 100% DOD
Max discharge current (continuous) 200 Amps (2400 watts)
Charge Current (0° to -10°C)
 < 1C
Charge Current (-20° to -10°C) < 0.5 C
Recommended Discharge Voltage 10.8 ± 0.20V
Max Discharge Voltage 8.8 ± 0.20V
Efficiency - round trip > 99.5%
Self Discharge Rate per month ≤ 3%
Warranty: 5 years on battery and Projecta IDC25L
