THUMPER LITHIUM 30AH BATTERY PACK

THUMPER LITHIUM 30AH BATTERY PACK

BATL-30 LDC-5A

$640.00
$758.00 $640.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

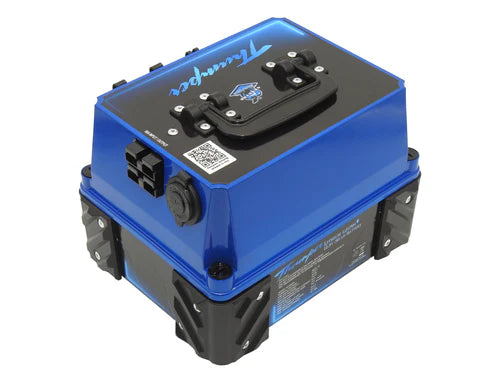

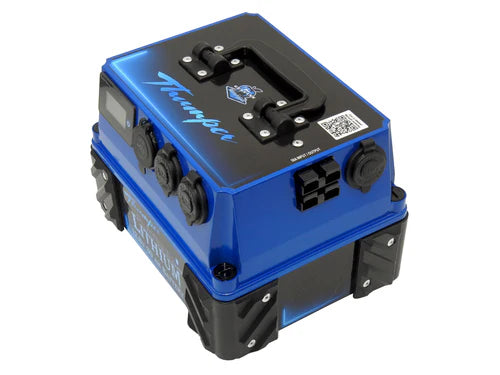

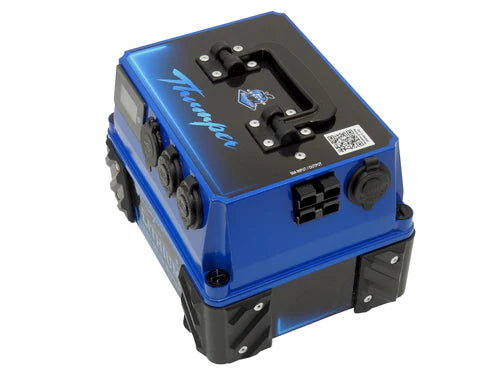

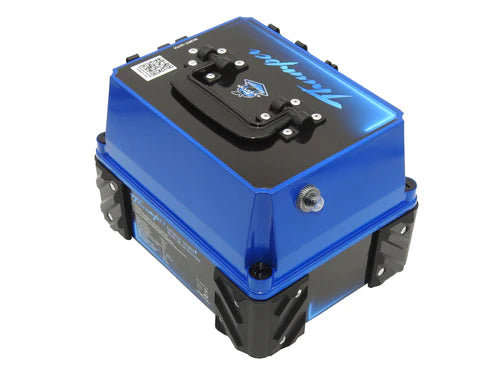

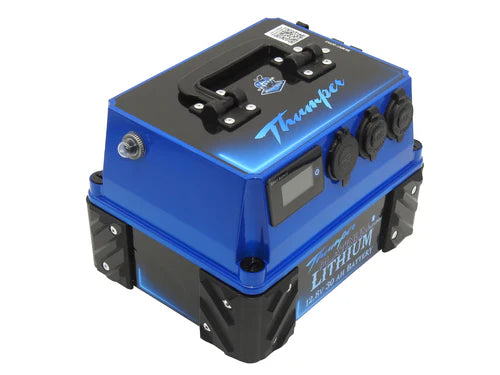

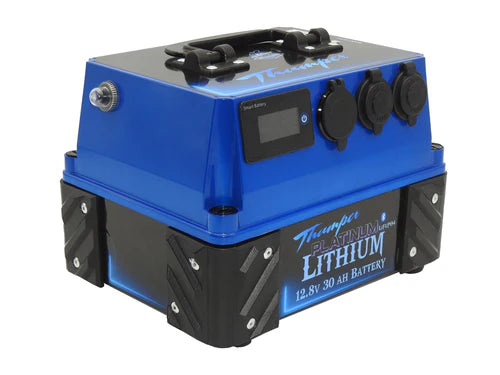

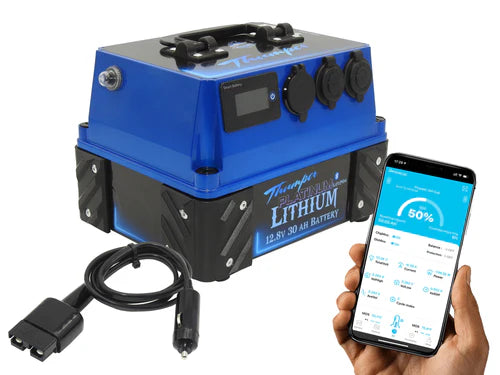

Thumper Lithium 30 AH Battery Pack

The Thumper Lithium battery pack is a reliable, compact and lightweight alternative to the standard lead acid portable dual battery system.

​Designed with the latest technology of Lithium LiFePo4 cells, the Thumper offers a fully sealed and maintenance free battery pack that can safely be used on any side.

​Equipped with an internal Bluetooth Battery Management System (BMS), the Thumper Lithium offers safe charging and discharging with over temperature protection, under and over voltage cut off protection and internal short circuit protection.

The Thumper range of Lithium battery packs have a 100% usable capacity. At this point, the BMS system within the Thumper will shut down all power to the unit.  In order to reset the BMS, an input charge load must be connected to the battery.

​Note: The BATL-30 Thumper Lithium is not suitable for Jump-Starting

_____________________________________

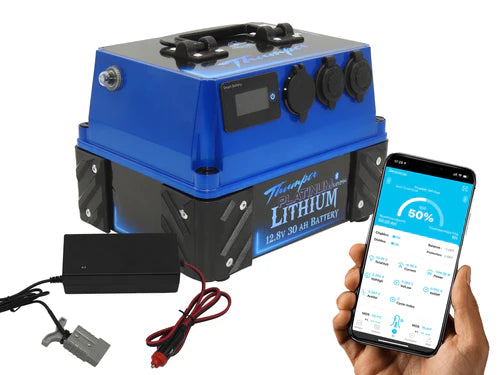

This as standard in this package:

1 x Thumper 30 AH Battery Pack (battery included)
1 x Cigarette socket charge lead
1 x 240 Volt Battery Charger 5 Amp - dedicated to Lithium charging



Upgrade Options (select in drop down)

1 x LDC-5A In line Cigarette DC charger - rated to 5 Amps
1 x LCD-8A In line Cigarette DC charger - rated to 8 Amps



The Thumper Lithium 30 AH is the perfect option for the individual looking to run a 40-50Lt compressor driven fridge for 35+ hours.

It has never been easier to understand your battery set up! This unit has been fitted with the calibrated digital display screen, providing the user with a complete digital reading of:

Now with BLUETOOTH monitoring and 5 year warranty!

    • Safe charging and discharging with over temperature protection
    • Under voltage cut off protection
    • Over voltage cut off protection
    • Internal short circuit protection
    • Smart Battery Gauge for quick battery reading
    • Completely monitored via a FREE Bluetooth app!
    • 100% usable battery capacity

The unit is equipped with:

1 x Smart Battery screen 2 x 50Amp Anderson (Max 50A)
2 x Cigarette socket 1 x Dual USB socket (2 x 3 Amp)
1 x Engel Fridge socket Internal circuit breaker protection
1 x Reset circuit breaker protection Carry Handle



Product code

BATL-30

Capacity

30 AH

MAX Discharge

50 Amps

MAX Input charge

30 Amps

Dimensions

240L x 190W x 180H

Weight

 4.15 kg

Warranty

 5 years



Charging:

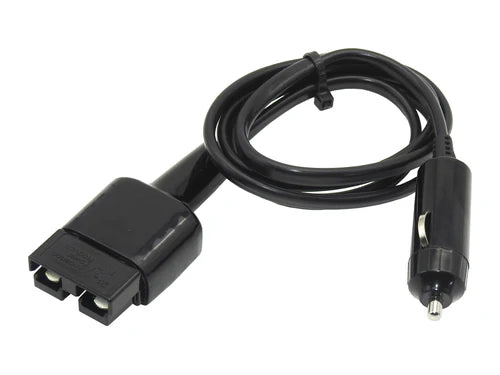

The Thumper 30 AH Lithium battery pack comes included with the TL-A-C1.2 1.2mt Anderson to cigarette charge lead. The TL-A-C1.2 will allow for a charge rate of approx. 5 – 8 Amps, depending on the vehicle’s alternator and wiring.

 This unique charging lead has been designed to allow the Thumper 30 AH to charge directly from the vehicle cigarette lighter socket. This lead must be used when charging via the cigarette socket in any vehicle as it will prevent reverse drain from occurring between the main start battery and the Thumper Lithium battery.

Available to purchase as an optional extra for the BATL-30 is:

  • TUR-L complete vehicle wiring loom
  • In line DC battery Charger to increase charge from Cigarette socket - available in 5 Amps or 8 Amps


  Average run - GUIDE

35 - 50Lt Compressor Fridge 0*C at 25*C Ambient Temperature
 Capacity Lithium run time AGM run time
30 AH 40 HOURS 22 HOURS
Discharged to 100% capacity at 10.00 Volts  Discharged to 80% capacity at 11.8 Volts

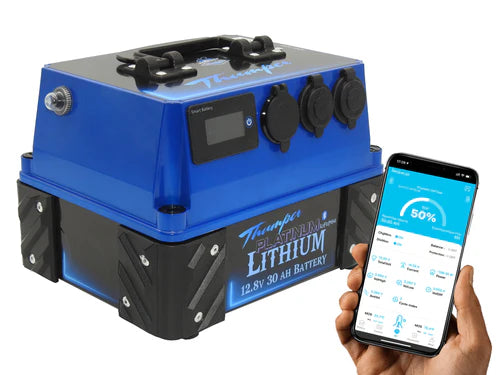

 Bluetooth

The Thumper Lithium Battery Pack is fitted with one of the most comprehensive Bluetooth monitoring Apps available on the market.

The App offers the ability to monitor and control:

  • Battery capacity
  • Battery Voltage
  • Percentage remaining capacity (Example: 0% - 100%)
  • Battery charging current
  • Battery discharge current
  • Battery output disconnect
  • Battery charge disconnect
  • Number of cycles consumed
  • Auto cell calibration
  • Auto cell protection
  • Estimated time remaining
  • Estimated charging time
  • AH capacity - Including remaining AH & AH consumed
  • Total cell balancing
  • High cell voltage
  • Low cell voltage
  • Cell voltage difference
  • Monitoring of dual battery sensors
  • Ability to parallel link and re-program AH capacity



Thumper offer a number of videos to help explain in more detail the operation of the Bluetooth App, however, a few key points are covered in this listing (videos to be uploaded soon).

For any technical advice regarding the App, we recommending contacting our team direct directly.

 Bluetooth App | Home screen - explained:

  Bluetooth App | Control Screen - Explained:

The Bluetooth app offers the ability to control the charge or discharge loads from the battery by remotely switching ON / OFF the power via the Bluetooth App.

Simply go into the CONTROL panel of your Bluetooth App and press:

CHARGE SWITCH  - to remotely disconnect all charge loads from the battery. Turning this particular switch OFF will prevent the battery from taking a charge load from any charging source, including the DC battery charger.

DISCHARGE SWITCH  - to remotely disconnect all discharge loads from the battery. Turning this particular switch OFF will prevent the battery from running any appliance as it disconnects all loads from the battery. This is the perfect option to use when storing the battery.
