SUNMAN

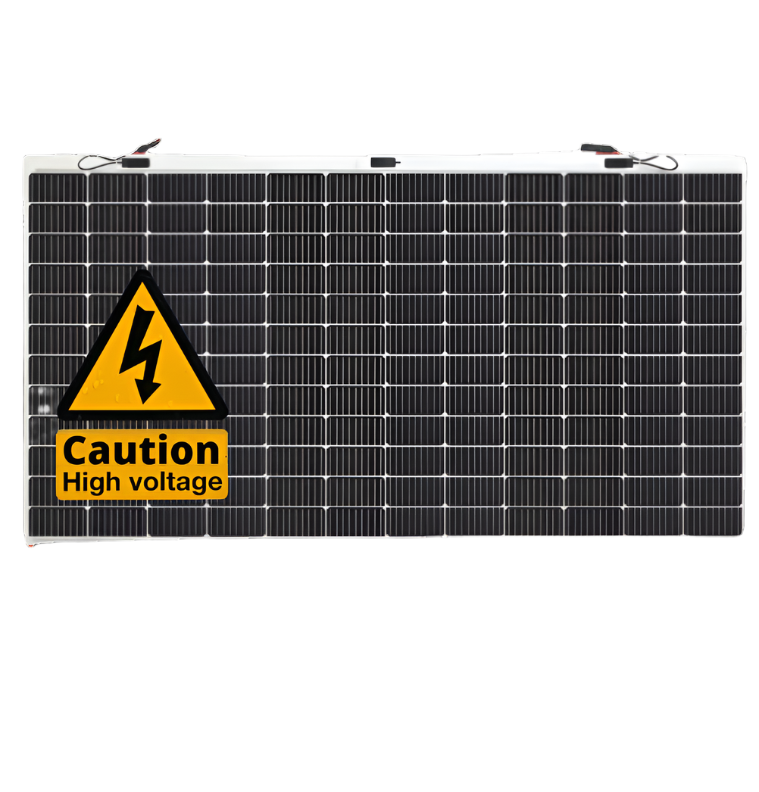

SUNMAN eArc 430W FLEXIBLE SOLAR PANEL

SUNMAN eArc 430W FLEXIBLE SOLAR PANEL

eASMF430-12X12UW

$669.00
$669.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

$199.00

SMARTSOLAR MPPT 100/30

SS - Product Addons

Select product(s) to see addons appear.

This message only appears in theme editor.
 More payment options

    Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.

    • Lightweight and durable construction with cutting-edge technology
    • Highly efficient monocrystalline cells for optimal energy production
    • Flexible design for easy installation on various surfaces
    • Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
    • CEC-approved for residential and commercial use
    • 10-year product warranty for buildings and 5 years for mobile applications

    430W
    Solar cells 144 (12x12)
    Maximum Power (Pmax) 430
    Maximum Power Voltage (Vmp) 42.0
    Maximum Power Current (Imp) 10.24
    Open-circuit Voltage (Voc) 49.8
    Short-circuit Current (Isc) 10.74
    Operating Temperature (°C) -40 °C to 85 °C
    Maximum System Voltage 1000 V DC (IEC)
    Maximum Series Fuse Rating 20 A
    Application Class Class A
    Power Tolerance 0/+5 W
    Backsheet White
    Junction box IP 68 rated (each j-box has one by-pass diode)
    Output Cables Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
    Connector MC4 compatible
