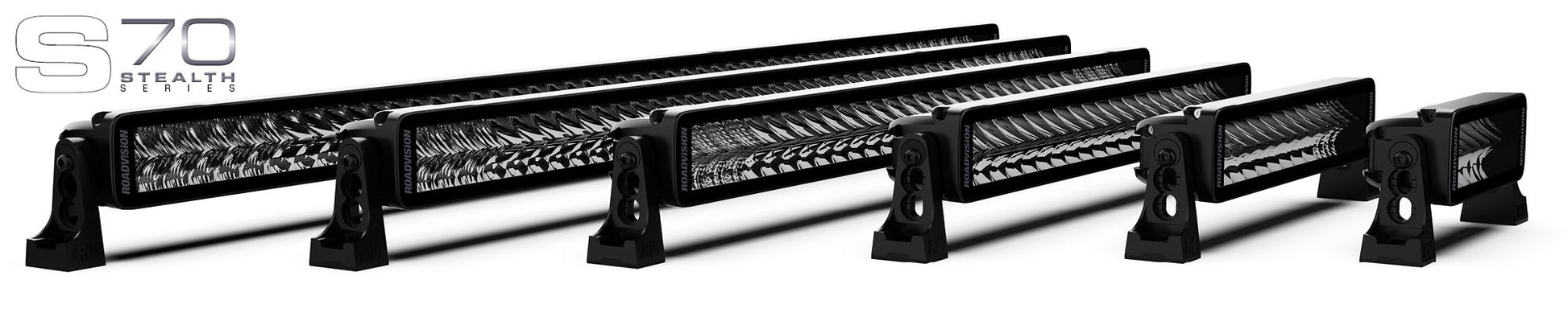

STEALTH S70 SERIES LIGHT BARS

Roadvision’s new Stealth Range of light bars represent the best performance from our new projector style lens in a light weight tough diecast aluminium housing. The smoked look lens and blackout mounting provide a low profile durable look producing up to 27,500lm of instant light output utilising Roadvision’s Thermal Management Technology.

The Stealth Series has been designed to deliver three unique performance characteristics with different combinations of distance or intensity suited to your main vehicle use and application

The S70 Series has been designed for the best of both worlds, maximum intensity and long range beam penetration – perfect for the serious off road enthusiast, professional off road racer or if you just want the best of the best.

Delivering the best performance mix of high intensity light and long range beam penetration, the S70 Series delivers up to 27,500lm of light intensity and a staggering 1118m of beam penetration @ 1 lux from a 52” bar by utilising Roadvision’s Thermal Management and Projector Beam Technology.

	THERMAL MANAGEMENT TECHNOLOGY
	MULTI-VOLT 10-30 VDC
	POLYCARB LENS
	COLOUR TEMP
	WATER & DUST PROOF
	REVERSE POLARITY PROTECTION
	OVER/UNDER VOLTAGE PROTECTION
	HEAVY DUTY/ATP CONNECTOR
	OSRAM LEDS
	RADIO INTERFERENCE APPROVED
	7 YEAR WARRANTY

Part Number	RBL7007SC	RBL7013SC	RBL7021SC	RBL7030SC	RBL7040SC	RBL7052SC
Description	S70 Series 7" LED Light Bar	S70 Series 13" LED Light Bar	S70 Series 21" LED Light Bar	S70 Series 30" LED Light Bar	S70 Series 40" LED Light Bar	S70 Series 52" LED Light Bar
Beam Type	Projector Combo 8 Driving/4 Spot	Projector Combo 8 Driving / 16 Spot	Projector Combo 8 Driving / 32 Spot	Projector Combo 16 Driving / 44 Spot	Projector Combo 16 Driving / 64 Spot	Projector Combo 24 Driving / 76 Spot
Maximum Lumens	3300lm	6600lm	11000lm	16500lm	22000lm	27500lm
Maximum Beam Distance	658m	1211m	1608m	1857m	2145m	2236m
Maximum Watts	48W	95W	176W	249W	344W	425W
Light Source	12x3 Watt Osram LED's	24x3 Watt Osram LED's	40x3 Watt Osram LED's	60x3 Watt Osram LED's	80x3 Watt Osram LED's	100x3 Watt Osram LED's
Current Draw Amps	2.4~4.4A @ 13.8V	4.4~8.9A @ 13.8V	7.7~16.8A @ 13.8V	10.7~23.9A @ 13.8V	15.6~32.6A @ 13.8V	19.1~40.6A @ 13.8V
Voltage Input	10-30V DC	10-30V DC	10-30V DC	10-30V DC	10-30V DC	10-30V DC

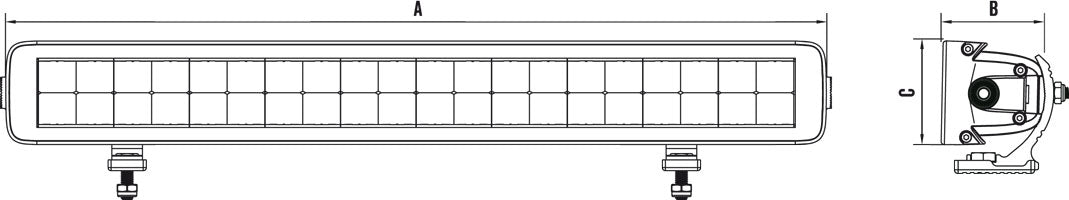

Dimensions AxBxC	204x67x70mm	357x67x70mm	561x67x70mm	815x67x70mm	1076x67x70mm	1325x67x70mm
Bar Length	7" (204mm)	13" (357mm)	21" (561mm)	30" (815mm)	40" (1076mm)	52" (1325mm)
Wiring	2 Pin Deutsch Plug	2 Pin Deutsch Plug	2 Pin ATP Plug	2 Pin ATP Plug	No Plug	No Plug
Maximum Lux @ 10m	1083 Lux	3666 Lux	6461 Lux	8624 Lux	11500 Lux	12500 Lux
Meters @ 1 Lux	329m	605m	804m	929m	1072m	1118m
Meters @ 0.5 Lux	658m	1211m	1608m	1857m	2145m	2236m
