The S40 Series are a super compact single row light bar designed with a long range beam penetration and lower short range intensity – perfect for highway driving.
Suitable for use on trucks, 4×4’s and SUV’s in licence plate and roof rack mounts, and applications where a larger light profile bar just won’t fit.
The S40 delivers outstanding lux performance from a very small package reaching up to 916m @ 1 lux from a 50” bar.
THERMAL MANAGEMENT TECHNOLOGY | |
MULTI-VOLT 10-30 VDC | |
POLYCARB LENS | |
COLOUR TEMP | |
WATER & DUST PROOF | |
REVERSE POLARITY PROTECTION | |
OVER/UNDER VOLTAGE PROTECTION | |
HEAVY DUTY/ATP CONNECTOR | |
OSRAM LEDS | |
RADIO INTERFERENCE APPROVED | |
7 YEAR WARRANTY |
Part Number | RBL4013SC | RBL4021SC | RBL4032SC | RBL4040SC | RBL4050SC |
---|---|---|---|---|---|

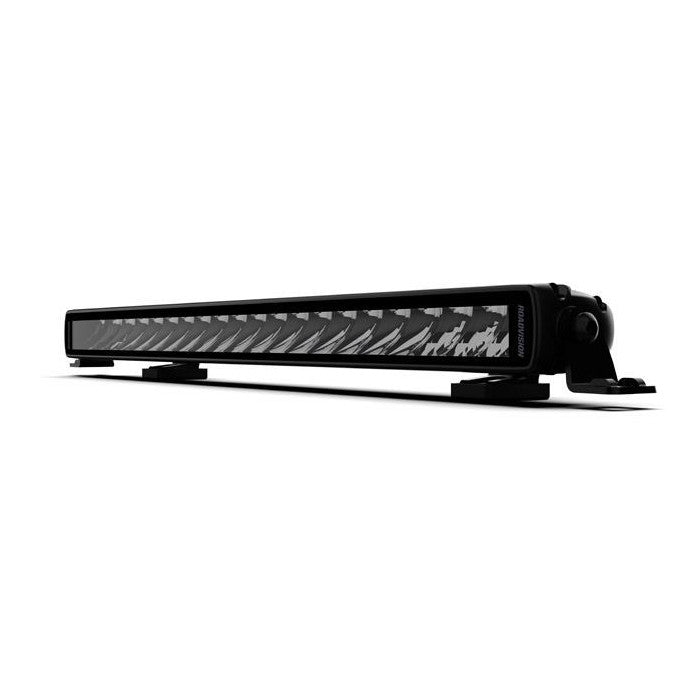

Description | S40 Series 13" LED Light Bar | S40 Series 21" LED Light Bar | S40 Series 32" LED Light Bar | S40 Series 40" LED Light Bar | S40 Series 50" LED Light Bar |
Beam Type | Projector Combo 6 Driving/6 Spot | Projector Combo 6 Driving/15 Spot | Projector Combo 6 Driving / 27 Spot | Projector Combo 6 Driving / 36 Spot | Projector Combo 12 Driving / 42 Spot |
Maximum Lumens | 3218lm | 5975lm | 9211lm | 11706lm | 14970lm |
Beam Distance | 832m | 1275m | 1568m | 1668m | 1833m |
Maximum Watts | 49W | 94W | 150W | 188W | 231W |
Light Source | 12x3 Watt Osram LED's | 21x3 Watt Osram LED's | 33x3 Watt Osram LED's | 42x3 Watt Osram LED's | 54x3 Watt Osram LED's |
Current Draw Amps | 2.9~4.1A @ 13.8V | 6.6~9.2A @ 13.8V | 10.3~14.4A @ 13.8V | 11.7~17.2A @ 13.8V | 13.6~22.1A @ 13.8V |
Voltage Input | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC |

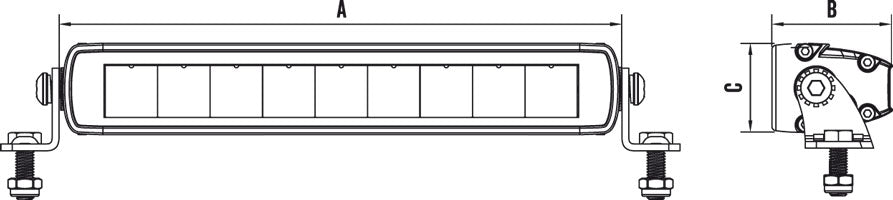

Dimensions AxBxC | 315x55x40mm | 522x55x40mm | 798x55x40mm | 1005x55x40mm | 1281x55x40mm |
Bar Length | 13" (315mm) | 21" (522mm) | 32" (798mm) | 40" (1005mm) | 50" (1281mm) |
Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug | 2 Pin ATP Plug | 2 Pin ATP Plug | 2 Pin ATP Plug |
Maximum Lux @ 10m | 1730 Lux | 4065 Lux | 6150 Lux | 6957 Lux | 8402 Lux |
Meters @ 1 Lux | 416m | 638m | 784m | 834m | 917m |
Meters @ 0.5 Lux | 832m | 1275m | 1568m | 1668m | 1833m |
