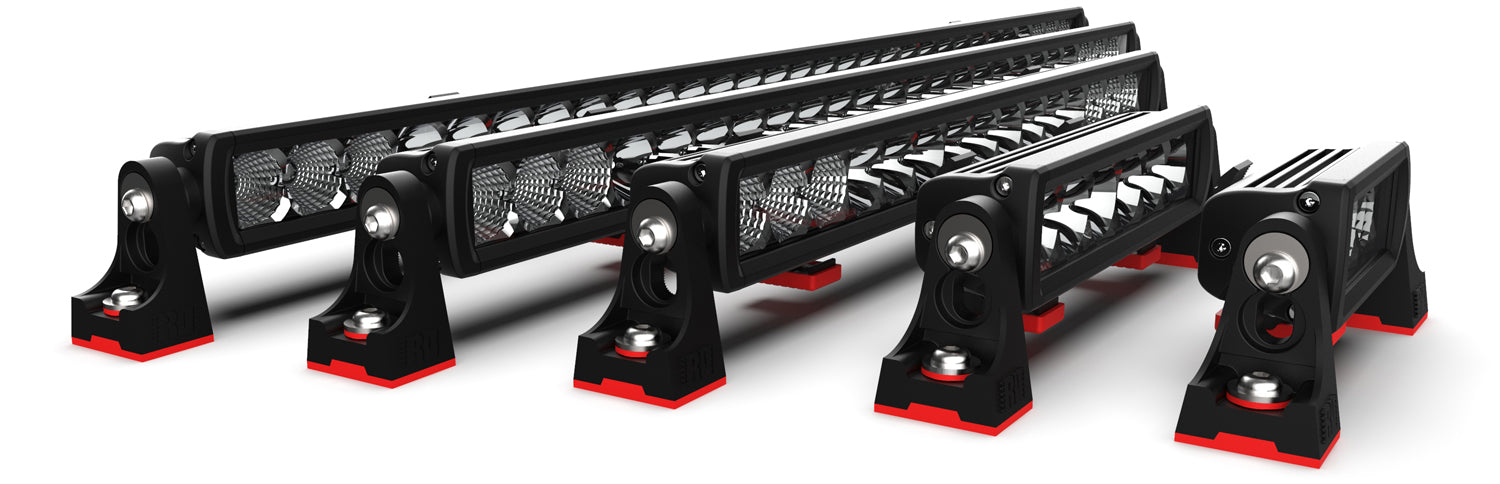

SR2 SERIES LIGHT BARS

The Roadvision SR² Series LED bar lights are proof size doesn’t matter. Measuring only 52mm tall, the SR² Series defies its compact size producing beam penetration reaching as far as 1200m with a perfect match of advanced optical design and the latest 3W Osram Hi-Lux LEDs. Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the SR² Series is available in spot, flood & combo beams from 5” to 50”. Supplied with both low profile adjustable slide mounts and Roadvision’s new 6 position adjustable anti-vibration mounting system, the SR² Series are the ideal choice for applications where space is limited. The SR² Series by Roadvision, punching above its size with superior beam penetration.

• SR² Series single row LED bar lamps produce up to 10530lm of instant light output
• Available in 5” to 50” models
• 3W Osram Hi-Lux LED’s produce super white light close to daylight
• Multi-volt 10-30V DC input & super low current draw
• 50,000 hour LED lifespan with solid state technology
• Soft start, PWM dimmable & advanced thermal management technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP67 rated
• Simple 2 wire installation with Deutsch plug & optional plug & play dimming controller

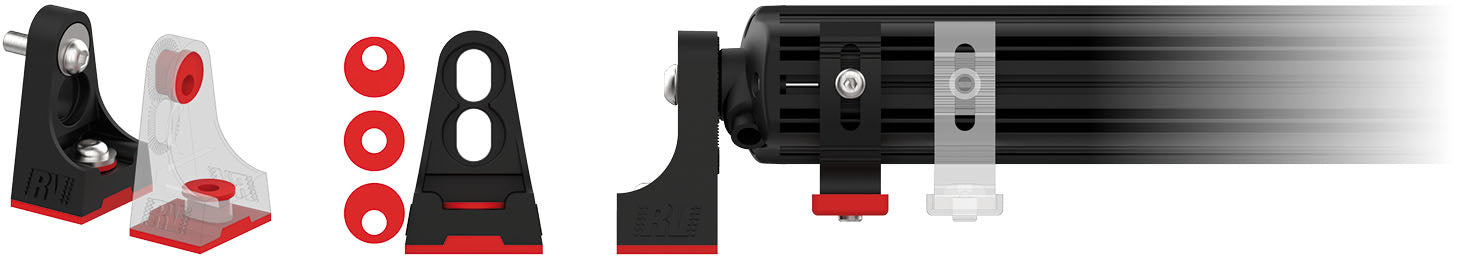

• 6 position adjustable anti-vibration end mount system & low profile slide mounts
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

	MULTI-VOLT 10-30 VDC
	POLYCARB LENS
	COLOUR TEMP
	WATER & DUST PROOF
	OVER/UNDER VOLTAGE PROTECTION
	DEUTSCH CONNECTOR
	REVERSE POLARITY PROTECTION
	3W OSRAM HI-LUX LEDS
	RADIO INTERFERENCE APPROVED
	ADJUSTABLE DUAL MOUNTS
	7 YEAR WARRANTY

Part Number	RBL1050F	RBL1090S	RBL1210C	RBL1320C	RBL1400C	RBL1500C
Description	5" Bar 3 LED	9" Bar 6 LED	21" Bar 15 LED	32" Bar 24 LED	40" Bar 30 LED	50" Bar 39 LED
Beam Type	Flood Beam	Spot Beam	Combo Beam	Combo Beam	Combo Beam	Combo Beam
Lumens Light Output (Effective)	810lm	1620lm	4050lm	6480lm	8100lm	10530lm
Beam Distance	63m	610m	716m	938m	1080m	1200m
Total Watts	9W	18W	45W	72W	90W	117W
Light Source	3x3 Watt Osram LED's	6x3 Watt Osram LED's	15x3 Watt Osram LED's	24x3 Watt Osram LED's	30x3 Watt Osram LED's	39x3 Watt Osram LED's
Current Draw Amps	0.5A @ 13.8V	1.2A @ 13.8V	3.2A @ 13.8V	5.2A @ 13.8V	6.6A @ 13.8V	8.7A @ 13.8V
Voltage Input	10-30V DC	10-30V DC	10-30V DC	10-30V DC	10-30V DC	10-30V DC

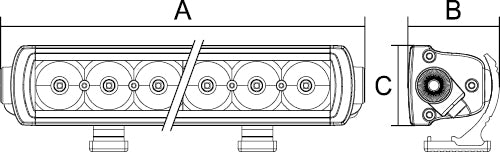

Dimensions AxBxC	140 x 59 x 52mm	236 x 59 x 52mm	524 x 59 x 52mm	812 x 59 x 52mm	1004 x 59 x 52mm	1292 x 59 x 52mm
Bar Length	5" (140mm)	9" (263mm)	21" (524mm)	32" (812mm)	40" (1004mm)	50" (1292mm)
Wiring	2 Pin Deutsch Plug	2 Pin Deutsch Plug	2 Pin Deutsch Plug	2 Pin Deutsch Plug	2 Pin Deutsch Plug	2 Pin Deutsch Plug
Lux @ 10m	10 Lux	930 Lux	1885 Lux	3000 Lux	3480 Lux	5400 Lux

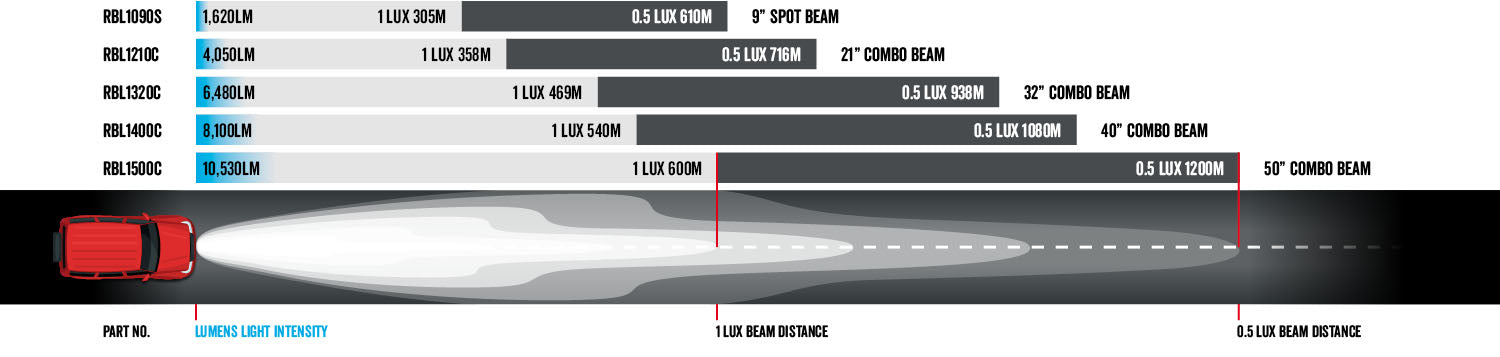

Meters @ 1 Lux	32m	305m	358m	469m	540m	600m
Meters @ 0.5 Lux	63m	610m	716m	938m	1080m	1200m
