VICTRON ENERGY

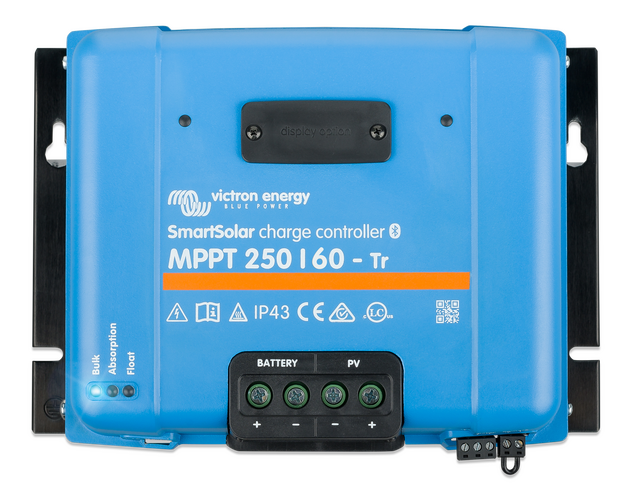

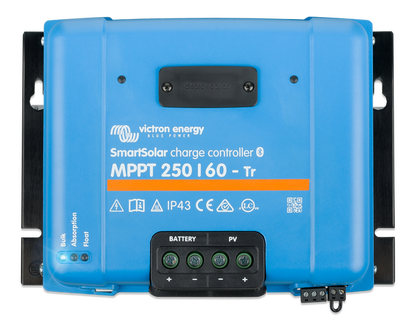

SMARTSOLAR MPPT 250/60-TR

SMARTSOLAR MPPT 250/60-TR

SCC125060221

$640.50
$640.50
Sale Sold out
Taxes included. Shipping calculated at checkout.

MANUALS & APPS

SmartSolar MPPT Datasheet

SmartSolar MPPT Manual

VictronConnect App For IOS

VictronConnect App For Android

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.


MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your SmartSolar MPPT charger by pairing it via bluetooth with your smartphone or other device to the VictronConnect app. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.


Optional SmartSolar Control Display

By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.

Battery voltage 12 / 24 / 48 V Auto Select (software tool needed to select 36 V)
Rated charge current 60 A
Nominal PV power @ 12V (A) 860 W
Nominal PV power @ 24V (A) 1720 W
Nominal PV power @ 36V (A) 2580 W
Nominal PV power @ 48V (A) 3440 W
Max. PV short circuit current (B) 35 A
Maximum PV open circuit voltage 250 V absolute maximum coldest conditions
245 V start-up and operating maximum
Maximum efficiency 99 %
Charge voltage 'absorption' Default setting: 14,4 / 28,8 / 43,2 / 57,6 V
(adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'float' Default setting: 13,8 / 27,6 / 41,4 / 55,2 V
(adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'equalization' Default setting: 16,2 V / 32,4 V / 48,6 V / 64,8 V (adjustable)
Charge algorithm multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm
Protection PV reverse polarity / Output short circuit / Over temperature
Operating temperature -30 to +60 °C (full rated output up to 40 °C)

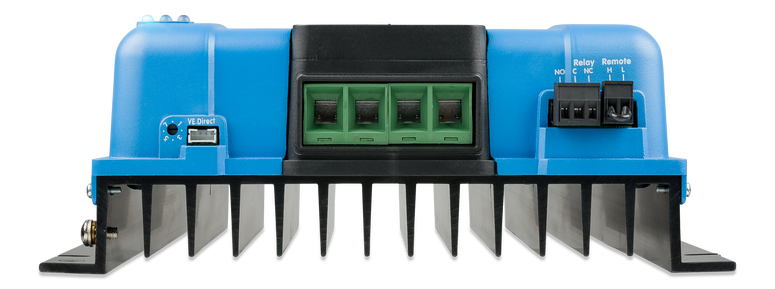

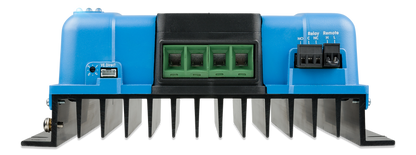

Data communication port VE.Direct or Bluetooth
Remote on/off Yes (2 pole connector)
Parallel operation Yes, parallel synchronised operation with VE.Can (max. 25 units)
Weight 3 kg
Dimensions (h x w x d) 185 x 250 x 95 mm

(A) If more PV power is connected, the controller will limit input power.
The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
(B) A PV array with a higher short circuit current may damage the controller.
