VICTRON ENERGY

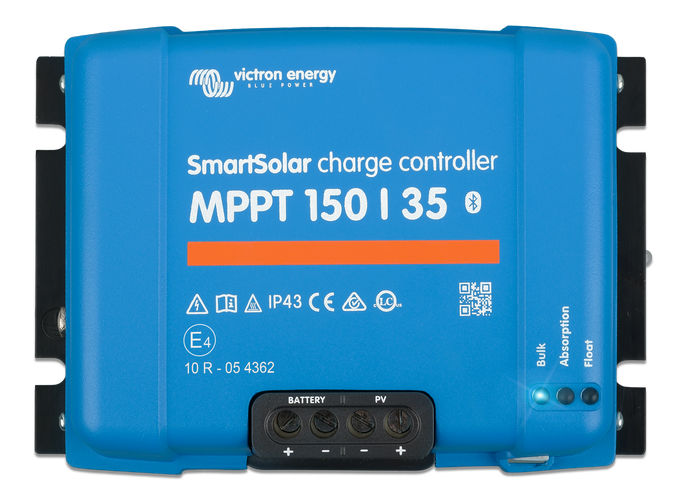

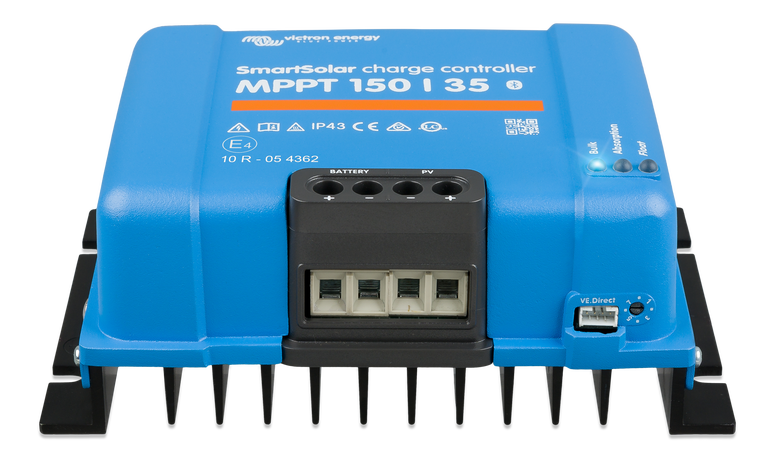

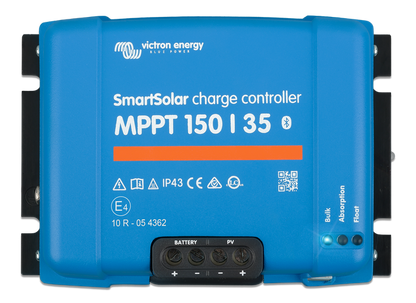

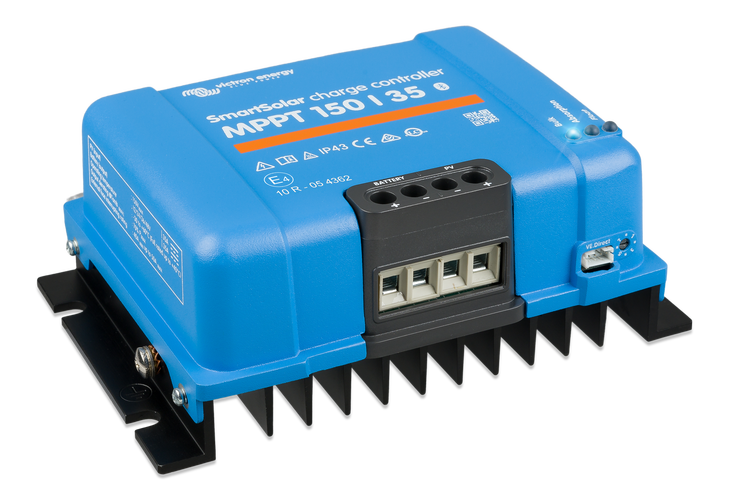

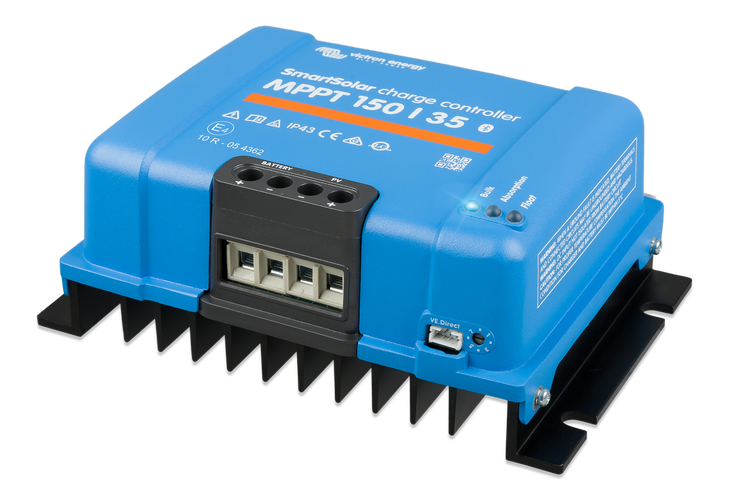

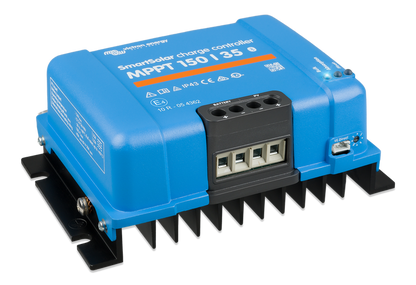

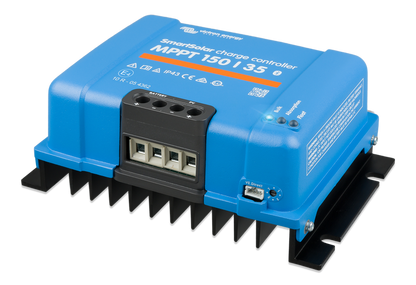

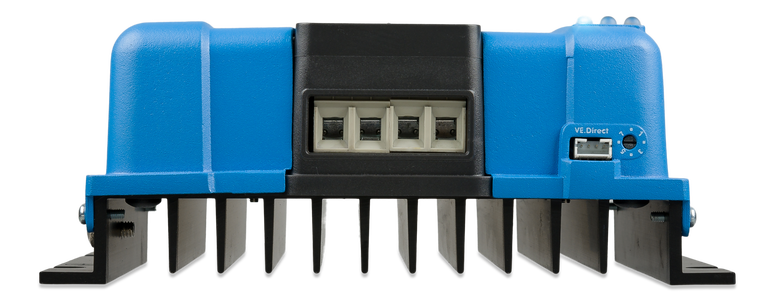

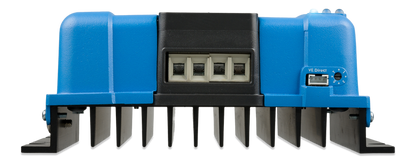

SMARTSOLAR MPPT 150/35

SMARTSOLAR MPPT 150/35

SCC115035210

$285.50
$285.50
Sale Sold out
Taxes included. Shipping calculated at checkout.

A solar charger gathers energy from your solar panels and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

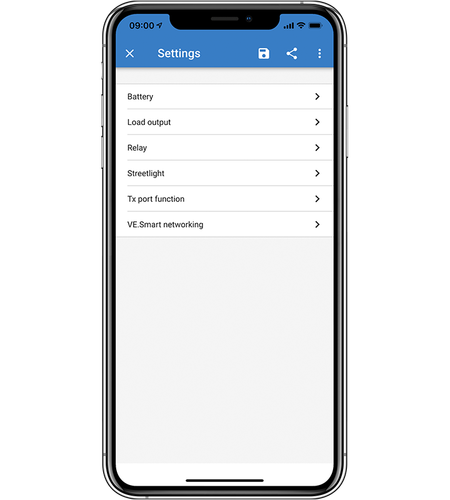

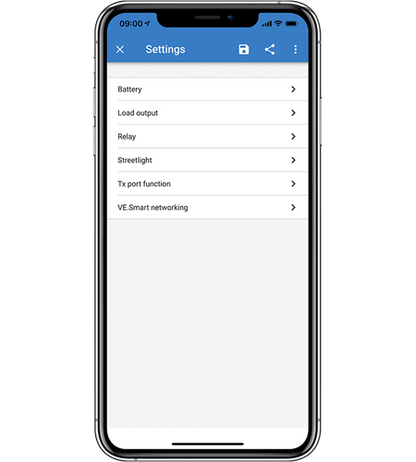

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.

Battery voltage 12 / 24 / 48 V Auto Select
(software tool needed to select 36 V)
Rated charge current 35 A
Nominal PV power @ 12V (A) 500 W
Nominal PV power @ 24V (A) 1000 W
Nominal PV power @ 36V (A) 1500 W
Nominal PV power @ 48V (A) 2000 W
Max. PV short circuit current (B) 40 A
Maximum PV open circuit voltage 145 V
Maximum efficiency 98 %
Charge voltage 'absorption' 14,4 / 28,8 / 43,2 / 57,6 V (adjustable)
Charge voltage 'float' 13,8 / 27,6 / 41,4 / 55,2 V (adjustable)
Charge algorithm multi-stage adaptive (eight pre-programmed algorithms)
Protection PV reverse polarity / output short circuit / over-temperature
Operating temperature -30 to +60°C (full rated output up to 40°C)
Data communication port VE.Direct
Weight 1,25 kg
Dimensions (h x w x d) 130 x 186 x 70 mm
Data stored Battery voltage,current and temperature, as well as load output current,
PV voltage and PV current.
Number of days trends data is stored 46

(A) If more PV power is connected, the controller will limit input power.
The PV voltage must exceed Vbat + 5 V for the controller to start.
Thereafter the minimum PV voltage is Vbat + 1 V.
(B) A PV array with a higher short circuit current may damage the controller.
