ROADVISION

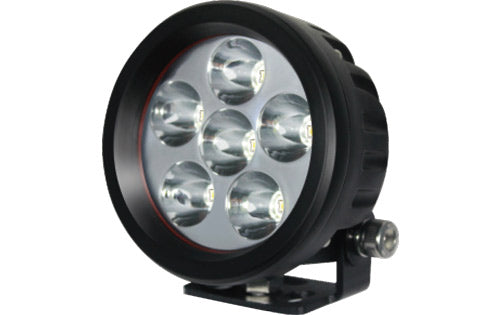

9518 SERIES 18W LED WORK LIGHTS
9518 SERIES 18W LED WORK LIGHTS
SKU:RWL9518F
ROADVISION’s RWL9518 Series round work lamps offer uncompromising performance and energy efficiency in a compact, easy to install package. The RWL9518 Series include 6 x 3W Osram Hi-Lux LED’s, available in either flood, or spot beam they are also ADR approved as a supplementary reverse lamp. Roadvision’s compact work lamps are perfect for applications where space is limited. Water and dust proof to IP67, the RWL9518 Series feature a super durable light weight die-cast housing and polycarbonate lens, allowing for worry free operation in even the toughest conditions
- RWL95 Series LED work lamps produce 1500lm of instant light output
- Available in flood or spot beams
- 6 x 3W Osram Hi-Lux LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & super low current draw
- 50,000 hour LED lifespan with solid state technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation
- Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved
- ADR approved as supplementary reverse lamp.
MULTI-VOLT 10-30 VDC
POLYCARB LENS
COLOUR TEMP
WATER & DUST PROOF
OVER/UNDER VOLTAGE PROTECTION
DEUTSCH CONNECTOR
REVERSE POLARITY PROTECTION
3W OSRAM HI-LUX LEDS
RADIO INTERFERENCE APPROVED
5 YEAR WARRANTY
FLOOD BEAM PATTERN
SPOT BEAM PATTERN
Part Number | RWL9518F | RWL9518S |
---|---|---|
Description | 95 Series LED Work Lamp 18W Flood | 95 Series LED Work Lamp 18W Spot |
Beam Type | Flood Beam | Spot Beam |
Lumens Light Output (Effective) | 1500lm | 1500lm |
Beam Distance | 214m | 272m |
Total Watts | 18W | 18W |
Light Source | 6 x 3W Osram Hi-Lux LED's | 6 x 3W Osram Hi-Lux LED's |
Input Voltage | 10-30V DC | 10-30V DC |
Current Draw Amps | 1.40A @ 13.8V DC | 1.40A @ 13.8V DC |

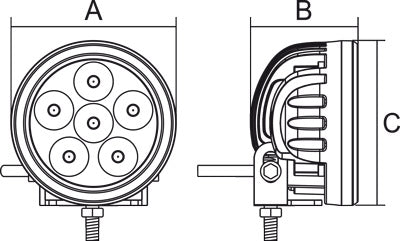

Dimensions | 89x58x89mm | 89x58x89mm |
Wiring | 2 Pin Deutsch Plug | 2 Pin Deutsch Plug |
Lux @ 10m | 115 Lux | 185 Lux |
Meters @ 1 Lux | 107m | 136m |
Meters @ 0.5 Lux | 214m | 272m |
