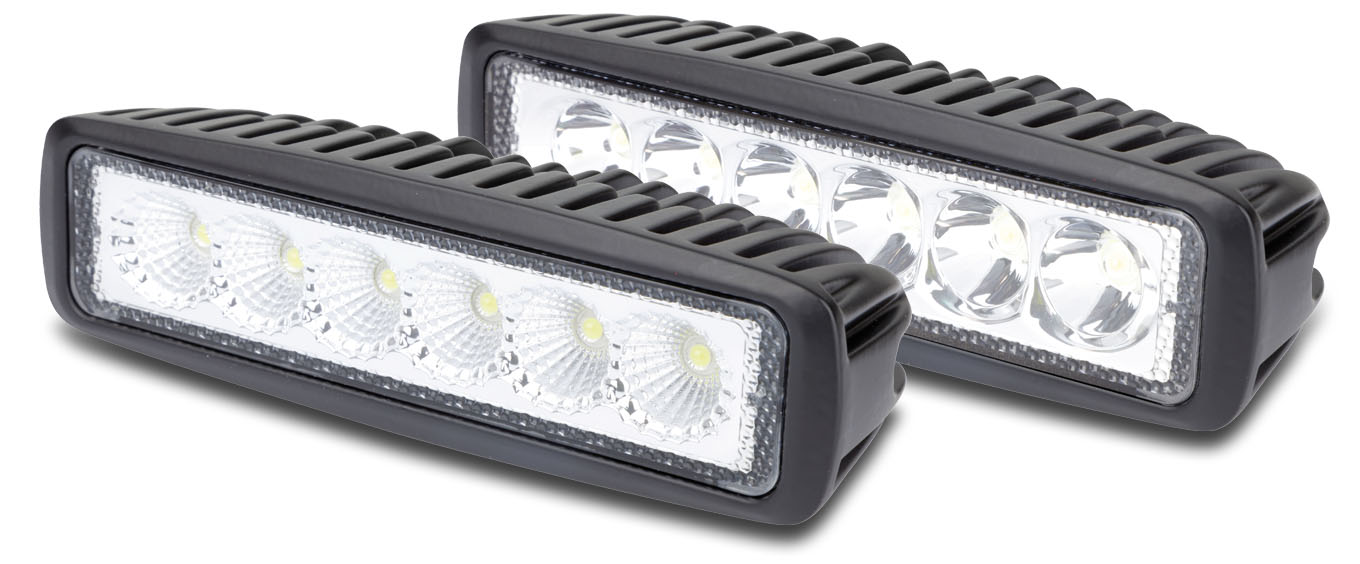

118 SERIES 18W LED WORK LIGHTS

Available in either spot or flood beam, ROADVISION’s RWL Series work lights suit the most demanding work environments. Water and dust proof to IP67, the RWL118 Series feature a super durable light weight diecast housing and polycarbonate lens, allowing for worry free operation in Australia’s toughest conditions. Complete with a cleverly designed low profile mounting bracket and simple two wire installation, the RWL118 Series provide a high quality, low fuss solution to your lighting requirements.

• RWL118 Series LED work lamps produce 1080lm of instant light output
• Available in flood or spot beam
• 3W Epistar LED’s produce super white light close to daylight
• Multi-volt 10-30V DC input
• Super low current draw
• 50,000 hour LED lifespan with solid state technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP67 rated
• Simple 2 wire installation
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved.

	MULTI-VOLT 10-30 VDC
	POLYCARB LENS
	COLOUR TEMP
	WATER & DUST PROOF
	OVER/UNDER VOLTAGE PROTECTION
	REVERSE POLARITY PROTECTION
	3W EPISTAR LEDS
	RADIO INTERFERENCE APPROVED
	5 YEAR WARRANTY

FLOOD BEAM PATTERN

SPOT BEAM PATTERN

Part Number	RWL118F	RWL118S
Description	118 Series LED Work Lamp 18W Flood	118 Series LED Work Lamp 18W Spot
Beam Type	Flood Beam	Spot Beam
Lumens Light Output (Effective)	1080lm	1080lm
Beam Distance	63m	148m
Total Watts	18W	18W
Light Source	6 x 3W Epistar LED's	6 x 3W Epistar LED's
Input Voltage	10-30V DC	10-30V DC
Current Draw Amps	1.40A @ 13.8V DC	1.40A @ 13.8V DC

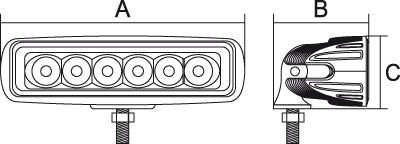

Dimensions	160x63x45mm	160x63x45mm
Wiring	300mm Lead	300mm Lead
Lux @ 10m	10 Lux	55 Lux
Meters @ 1 Lux	32m	74m
Meters @ 0.5 Lux	63m	148m
