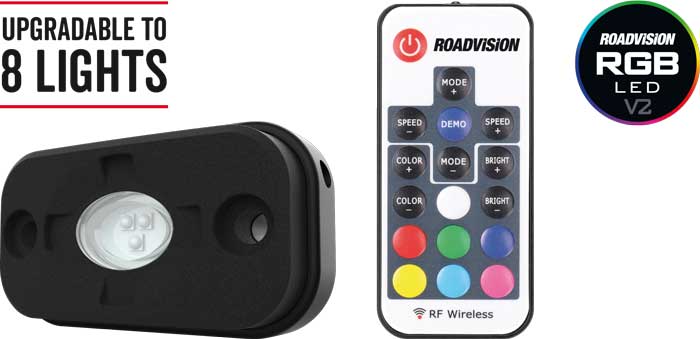

RGB LED ROCK LIGHT KIT V2 WITH RF REMOTE CONTROL

Roadvision’s RGB LED rock light kits are a simple yet durable solution for providing underbody lighting. Featuring 4 x 256-Grade PWM lights, users can select from 19 dynamic modes, 20 static colours or demo mode using the slim line card type RF  remote. The unit also has 10 adjustable speed, 5 brightness controls and an auto save function. With a 30m transmitter range, multi-voltage input and simple 2 wire installation with plug & play connectors, Roadvision’s LED rock light kits add instant bling to your rig.

• RGB LED rock light kit with RF remote control

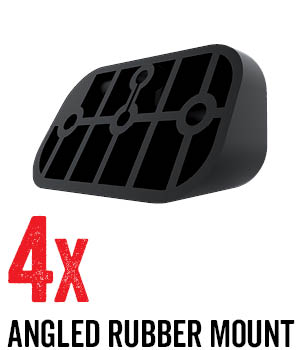

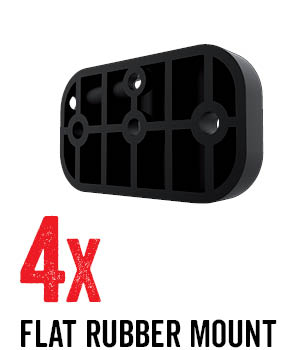

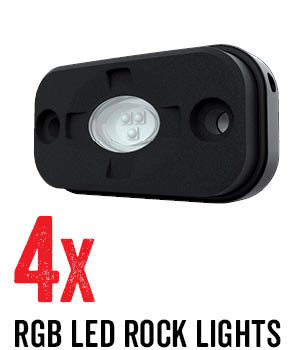

• 4 x 1.8W 256-Grade PWM LED rock lights with 3 rubber mounting options
• Upgradable up to 8 rock lights (RRGB1RL)

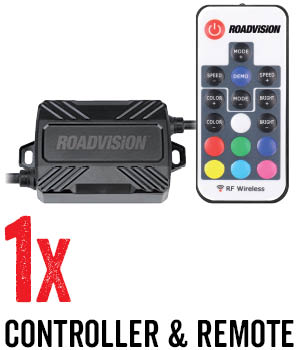

• Card type RF remote control with 30m range
• 19 dynamic modes, 20 static colours, demo mode, speed & brightness adjustable
• Multi-volt 10-30V DC input & super low current draw
• 50,000 hour LED lifespan with solid state technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP67 rated

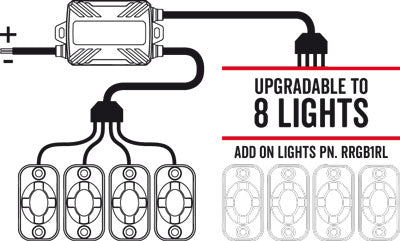

• Simple 2 wire installation with plug & play connectors.

MULTI-VOLT 10-30 VDC

ALUMINIUM HOUSING

POLYCARB LENS

WATER & DUST PROOF

LEDLINK CONNECTOR

7 YEAR WARRANTY

Part Number	RRGB4RLK2
Description	LED Rock Light Kit V2 RGB With RF Remote Control (Upgradable to 8 Lights)
Colour Output	RGB Colour
Input Voltage	10-30 VDC
Power Watts	7.2W (1.8W x 4), 14.4W (1.8W x 8)
Lux @10m	380 Lux
Number of LEDS	3 x RGB LED’s
Current Draw @ 13.8V	0.6 Amps (4 Lights), 1.2A (8 Lights)

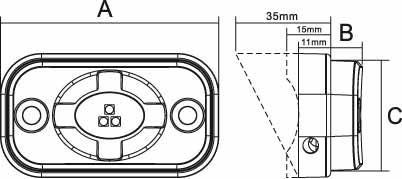

Dimensions AxBxC	77 x 11 x 39mm
Wiring	LEDLink Connectors
