ORICOM

REAL TIME TYRE PRESSURE MONITORING SYSTEM 6 EXTERNAL SENSORS

REAL TIME TYRE PRESSURE MONITORING SYSTEM 6 EXTERNAL SENSORS

SKU:TPS10-6E

Regular price $274.50
Regular price $299.00 Sale price $274.50
Sale Sold out
Taxes included. Shipping calculated at checkout.

The TPS10-6E Tyre Pressure Monitoring System includes 6 External sensors, but has the capability of simultaneously running up to 10 sensors through the solar powered LCD display unit. This unit is the perfect solution for those with a towing vehicle and caravan/boat/camper or box trailer. TPMS in Australia are being used increasingly as safety devices, and with more people jumping in their vehicle to head around Australia and tap into the amazing playground we all call home, accurately reviewing a vehicles tyre pressure in an instant, minimises the risk of tyre failure leading to disaster, while at the same time, positively affecting the handling of the vehicle. Ensuring the tyre’s are optimally inflated will also positively affect the fuel economy of a vehicle.

NOTE: TPS10 EXTERNAL sensor model is not compatible with TPS10 INTERNAL sensor model. In some cases, when using with a caravan, a repeater may be required to ensure full range between sensor and control unit.

Key Features:

  • Solar powered display unit
  • Long lasting display unit battery life
  • External sensor battery life CR1632 - approx.2 years
  • Replaceable external sensor battery
  • IPX7 Waterproof rating
  • Wireless transmission between sensor and display unit
  • Adjustable threshold value
  • Auto brightness on display
  • Real time monitoring with pressure and temperature at a glance
  • Compact design
  • Visual and audio alarm
  • Optional Micro USB input
  • Intelligent sleeping mode for power saving
  • Easy to install
  • High/low pressure warning
  • Sensor failure warning
  • 12 Month warranty

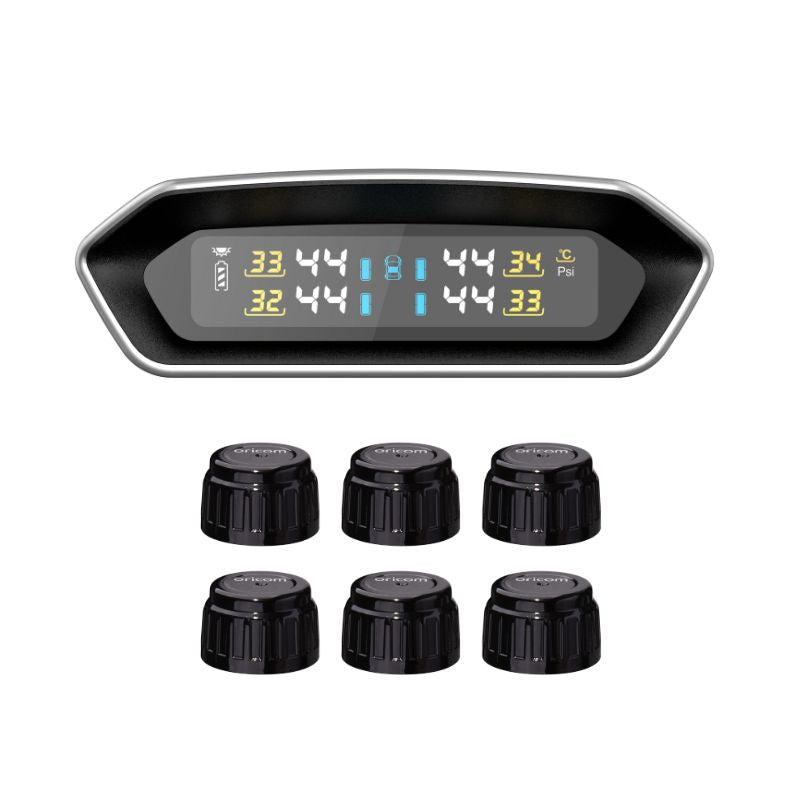

PACK CONTENTS

  • 1 x Solar LCD Display
  • 6 x External Tyre Sensors
  • 7 x Washers
  • 7 x Nuts
  • 6 x Dustproof Covers
  • 1 x Anti-Slip Mat
  • 1 x Sensor Tool
  • 1 x Spanner

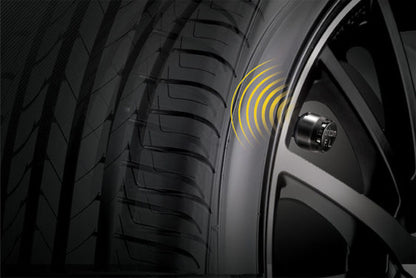

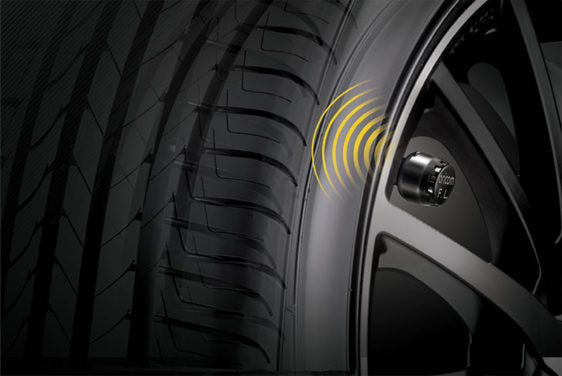

 SENSOR
Operating frequency 433.92MHz ± 0.05MHz
Operating voltage 2.3 ~ 3.3V
Operating current ≤1 2mA
Static current ≤0.5uA
Operating temperature -20˚C ~ +80˚C
Storage temperature -40˚C ~ +80˚C
Battery model CR1632

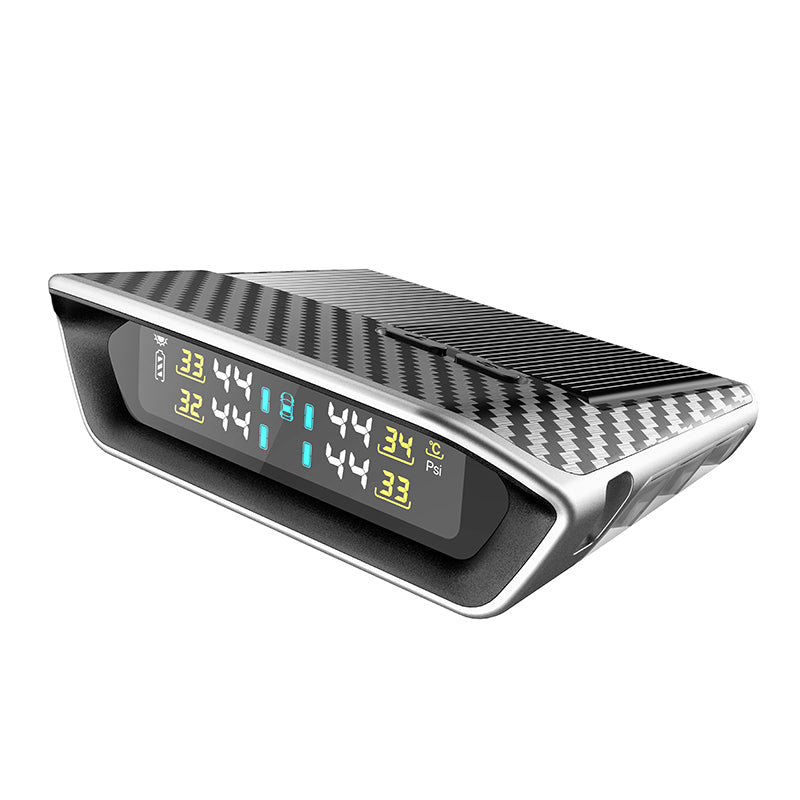

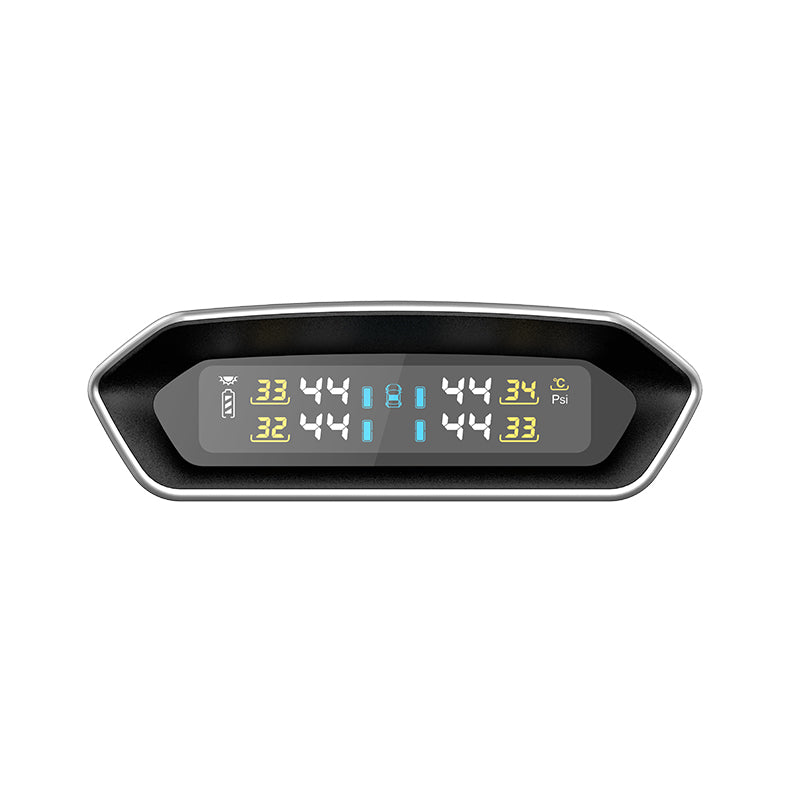

 DISPLAY
Operating frequency 433.92MHz ±0.05MHz
Operating current ≤3.5mA
Static current ≤45μA
Operating voltage 2.6 ~ 3.6V
Operating temperature -20˚C ~ +70˚C
Storage temperature -40˚C ~ +95˚C
Built-in battery capacity 500mAh
Charging temperature -10˚C ~ 65˚C
Solar charging current ≥15mA (at 5500LX 25˚C)
USB Charging current ≤70mA
