ORICOM

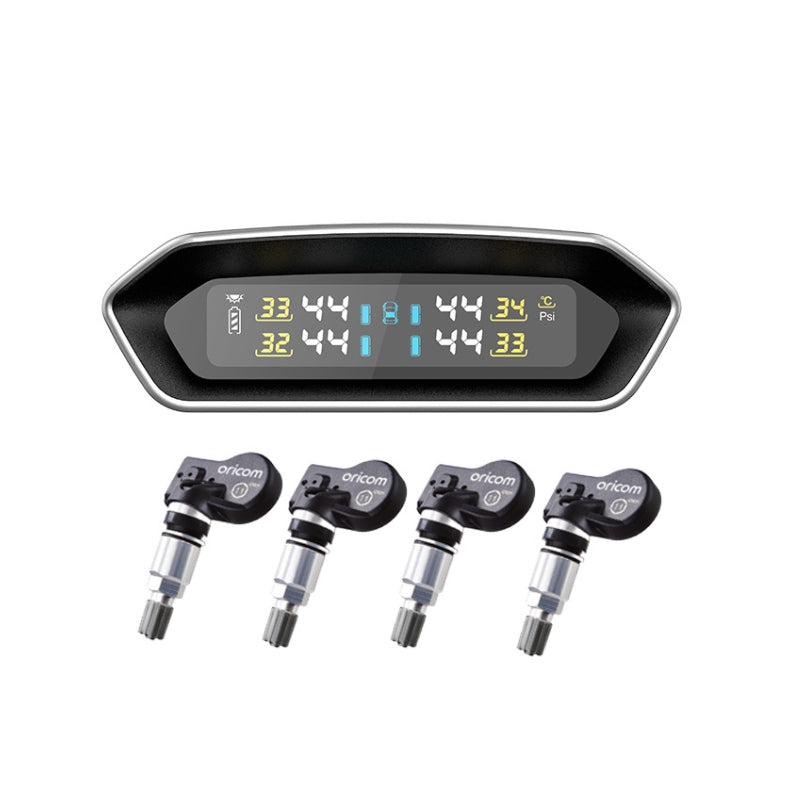

REAL TIME TYRE PRESSURE MONITORING SYSTEM 4 INTERNAL SENSORS

REAL TIME TYRE PRESSURE MONITORING SYSTEM 4 INTERNAL SENSORS

SKU:TPS10-4i

Regular price $210.50
Regular price $229.00 Sale price $210.50
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

    The TPS10-4i Tyre Pressure Monitoring System includes 4 internal sensors, but has the capability of simultaneously running up to 10 sensors through the solar powered LCD display unit. This unit is the perfect solution for those with a towing vehicle and caravan/boat/camper or box trailer. TPMS in Australia are being used increasingly as safety devices, and with more people jumping in their vehicle to head around Australia and tap into the amazing playground we all call home, accurately reviewing a vehicles tyre pressure in an instant, minimises the risk of tyre failure leading to disaster, while at the same time, positively affecting the handling of the vehicle. Ensuring the tyre’s are optimally inflated will also positively affect the fuel economy of a vehicle.

    NOTE: TPS10 INTERNAL sensor model is not compatible with TPS10 EXTERNAL sensor model. Only compatible for use with alloy wheels.

    Key Features:

    • Solar powered display unit
    • Long lasting display unit battery life
    • IPX7 Waterproof rating
    • Wireless transmission between sensor and display unit
    • Adjustable threshold value
    • Auto brightness on display
    • Real time monitoring with pressure and temperature at a glance
    • Compact design
    • Visual and audio alarm
    • Optional Micro USB input
    • Intelligent sleeping mode for power saving
    • Easy to install
    • High/low pressure warning
    • Sensor failure warning
    • 12 Month warranty

    PACK CONTENTS

    • 1 x Solar LCD Display
    • 4 x Internal Tyre Sensors
    • 4 x Dustproof Covers
    • 1 x Anti-Slip Mat
     SENSOR
    Operating frequency 433.92MHz ± 0.015MHz
    Operating voltage 2.3 ~ 3.3V
    Operating current ≤9mA
    Static current ≤0.5uA
    Operating temperature -20˚C ~ +80˚C
    Storage temperature -40˚C ~ +80˚C
    Battery life Approx. 5 Years
    Pressure range 0-7.9Bar / 0-86PSI

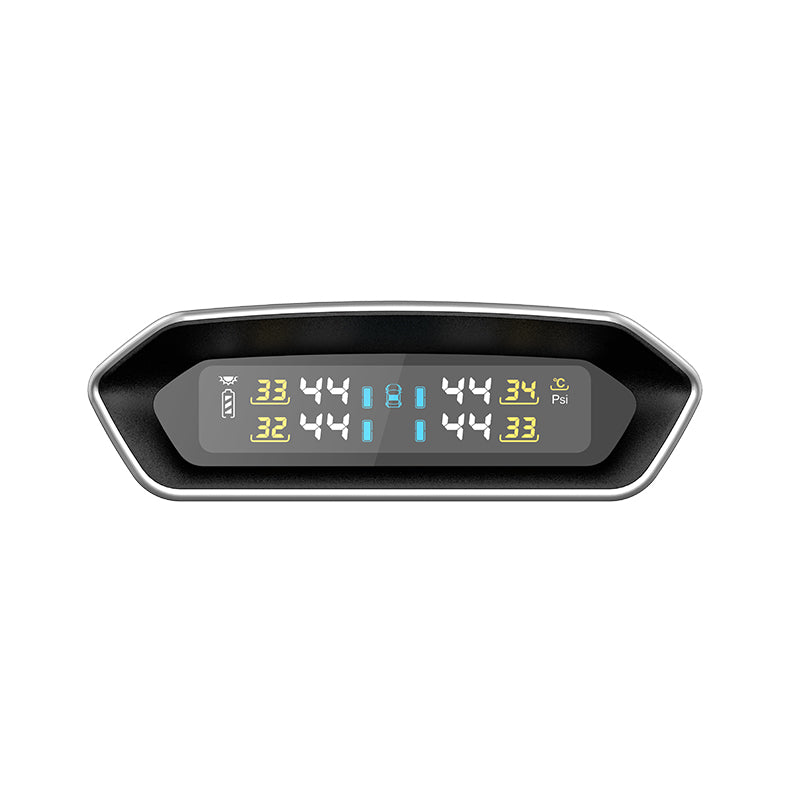

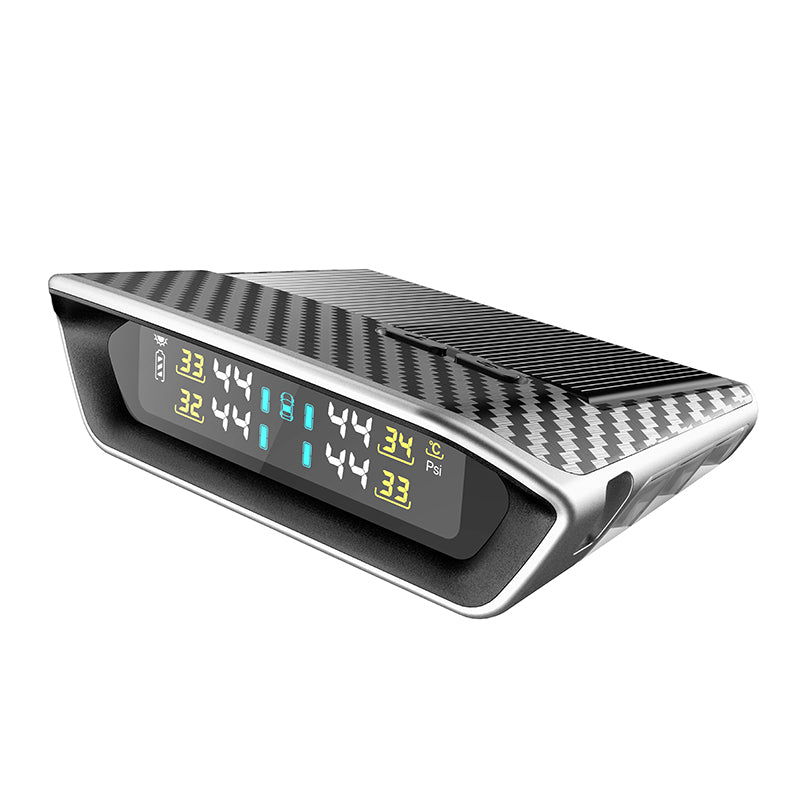

     DISPLAY
    Operating frequency 433.92MHz ±0.015MHz
    Operating current ≤3.5mA
    Static current ≤45μA
    Operating voltage 2.6 ~ 3.6V
    Operating temperature -20˚C ~ +70˚C
    Storage temperature -40˚C ~ +85˚C
    Built-in battery capacity 500mAh
    Charging temperature -10˚C ~ 65˚C
    Solar charging current ≥15mA (at 5500LX 25˚C)
    USB Charging current ≤70mA



    ADJUSTABLE ALARM VALUES
    High pressure value 2.6~7.9Bar/37~86PSI
    Low pressure value 0.9~3.9Bar/13~55PSI
