PXSHUNT500 EXTERNAL SHUNT HIGH CURRENT POWER MANAGEMENT SYSTEMS

PXSHUNT500 EXTERNAL SHUNT HIGH CURRENT POWER MANAGEMENT SYSTEMS

SKU:PXSHUNT500

Regular price $295.00
Regular price Sale price $295.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
 More payment options

KEY FEATURES

  • High current/external charge  monitoring
  • Supports 12V batteries up to 1200Ah
  • Rated for 500A of continuous current
  • Easy to read LED status indicators
  • Simple Installation
  • Compatible with Lead Acid and LiFePO4 deep cycle batteries

Battery properties monitored:

  • Voltage
  • Current (charging/discharging)
  • Energy usage (Ah)
  • Temperature

Monitor all connections direct to battery

The PXShunt500 provides wired battery monitoring for high current BMPRO power management systems.

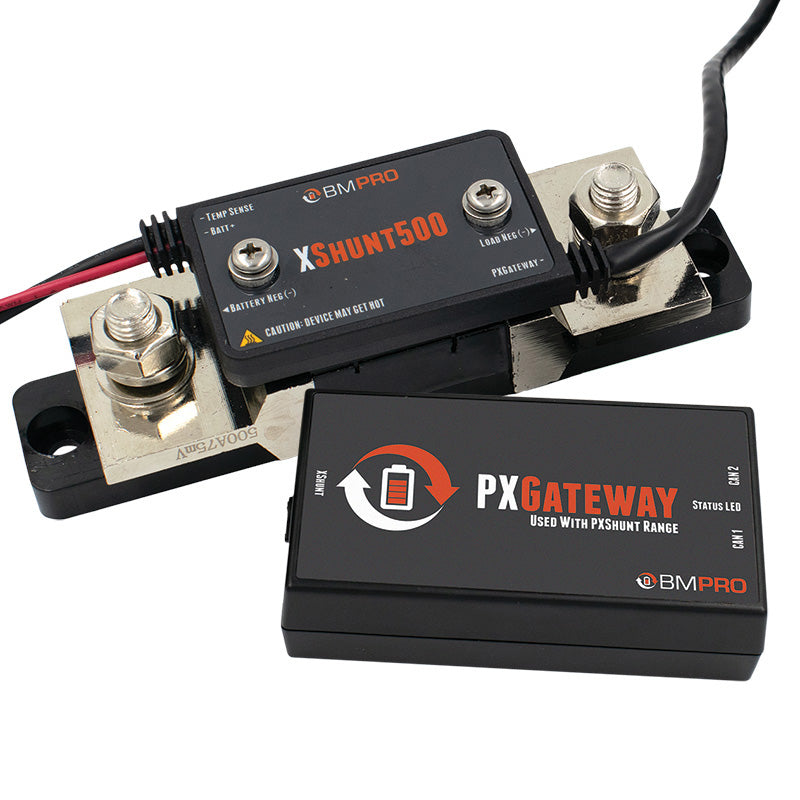

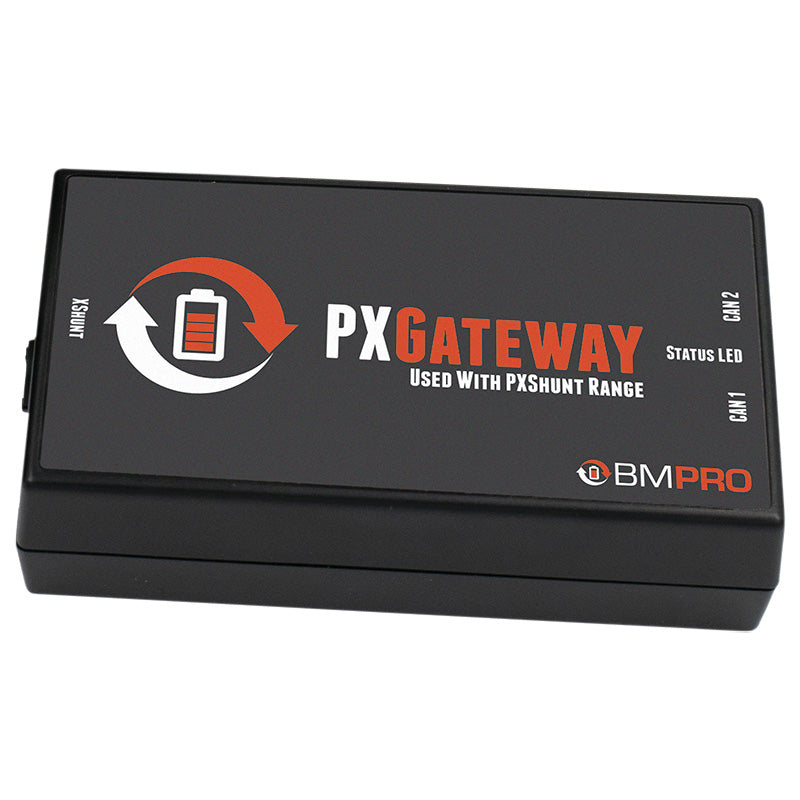

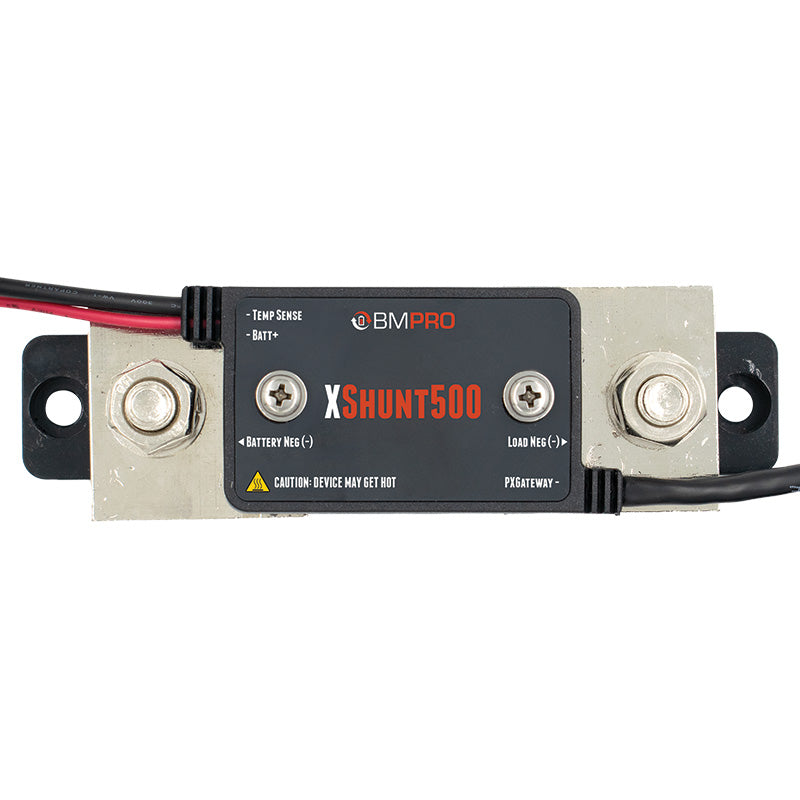

Made up of two components, the XShunt500 and the PXGateway, it is hardwired into your system for performance and reliability. Adding the PXShunt500 to a BMPRO power management system allows high current loads to be directly connected to the battery while maintaining accurate State of Charge and Time Remaining measurements.

The PXShunt500 provides your BatteryPlus35, ASPero and J35 power management systems with additional information on battery usage, so your display’s battery time remaining and state of charge are always up-to-date.

The PXShunt500 communicates via a CAN bus cable, is designed for 12V batteries up to 1200Ah in capacity, features easy to read LED status indicators and is rated for 500A of continuous current.

The PXShunt500 is IP67 rated, making it suitable for external mounting outside your caravan.

Voltage Range

8V to 16V

Voltage Resolution

<20mV

Current Resolution

<200mA

Current Range

500A

Overload Protection

± 800A

Temperature Range

-10° to 50°C

Temperature Resolution

3°C

Capacity Range

1200Ah

Input Voltage

8V to 16V

Quiescent Current Drain (average)

XShunt500: <10mA
PXGateway: <20mA

Operating Temperature

-10° to 50°C

Humidity Operating

≤ 90% RH non-condensing

CAN Cable Length

0.5m

PXGateway Cable Length

2.5m

Dimensions (Approx.)

XShunt500: 156 x 46 x 47.5mm
PXGateway: 90 x 52 x 24mm

Weight (Approx.)

XShunt500: 1kg
PXGateway: 150g

IP Rating

XShunt500: IP67
PXGateway: IP30
