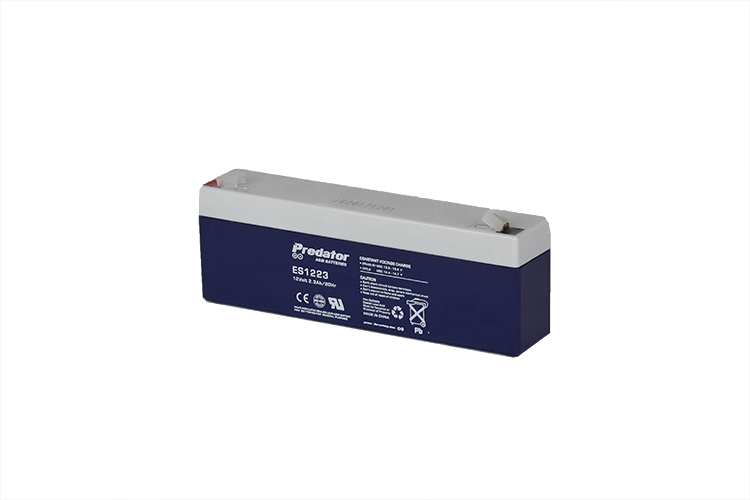

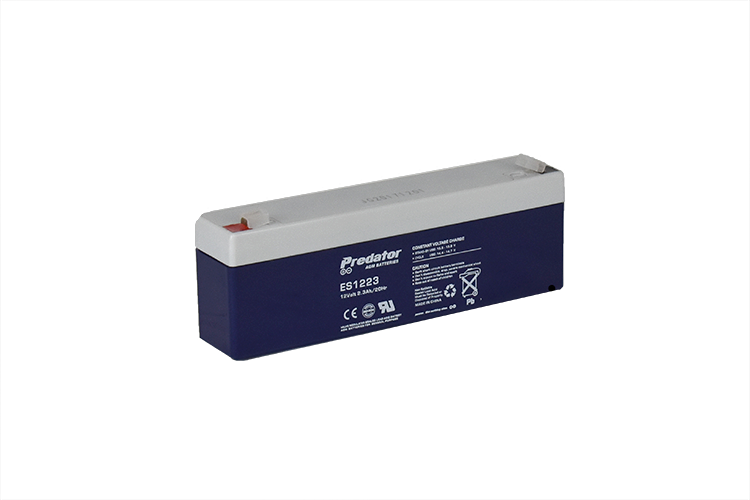

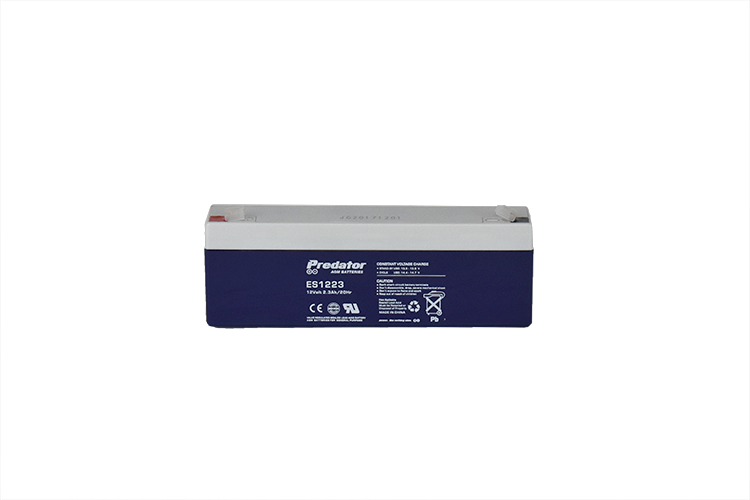

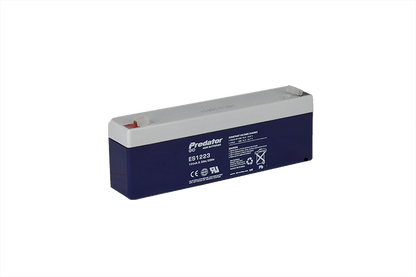

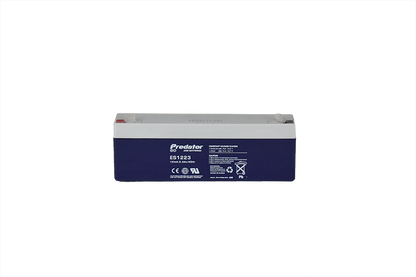

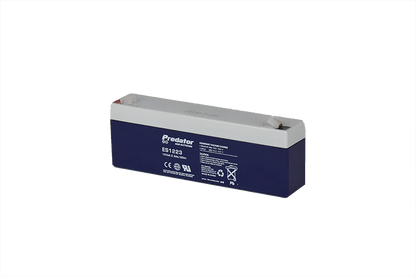

PREDATOR 12V 2.3AH MULTI-PURPOSE AGM BATTERY

PREDATOR 12V 2.3AH MULTI-PURPOSE AGM BATTERY

ES1223

$20.00
$20.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Predator ES batteries are general purpose Absorbent Glass Mat (AGM) cycling batteries available in 1.3-260 Ah sizes. They are designed for every day general and light cycling duties and are ideally suited for standby or float applications such as:

  • Electronic Toys & Equipment
  • E-Scooters & Bikes
  • Emergency Lighting
  • Electronic Light Displays
  • UPS Systems
  • Automation Systems
  • Security Systems
  • Vending Machines
  • Control Equipment

The Predator ES range is approved under the CSIRO ActivFire Scheme and is listed in the Register of Fire Protection Equipment for fire panels and systems, proving they are one of the safest, most reliable batteries on the market.

The ES range of Absorbent Glass Mat (AGM) Batteries use compressible glass mats as separators between the plates and contain the electrolyte required for the chemical reaction inside the battery. This design reduces the internal resistance which improves overall efficiency of the battery.

Features and Benefits

  • VRLA Construction
    No electrolyte leakage from casing or terminals.
  • Maintenance Free Operation
    No need to check or add water. Efficient operation in any orientation except inverted.
  • Low Self-Discharge
    Lower self discharge rate extends shelf life.
  • Highest Purity Fine Grain Lead
    99.9% lead is used to create grids with significantly stronger grain structure and higher resistance to corrosion.
  • High Strength ABS Casing
    Designed to withstand elevated operating temperatures and maintain high battery cell compression, essential for reliable operation
Nominal Voltage 12V
Rated Capacity
20 Hour Rate（0.115A to 10.5V ) 2.3Ah
10 Hour Rate（0.23A to 10.5V ) 2.1Ah
5 Hour Rate (0.46A to 10.5V ) 2.0Ah
1 Hour Rate (2.3A to 10.5V ) 1.4Ah

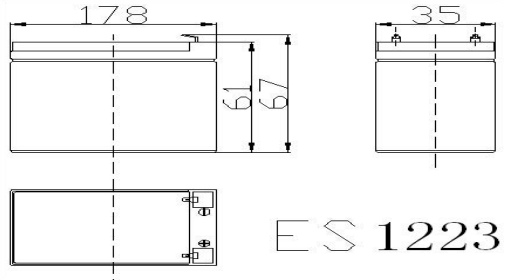

Dimension and Weight
Length 178±2mm
Width 35±2mm
Height 61±2mm
Total Height 67±2mm
Weight 0.94Kg
Casing Material ABS
Self discharge Rate（25℃) ≥85%/3month
Internal Resistance Fully charged Battery ≤10mΩ
Operating Temperature Range
Discharge -35℃(-31°F)～50℃(122°F)
Charge -15℃(5°F)～40℃(104°F)
Storage -15℃(5°F)～40℃(104°F)
Charging Methods
Float Use 13.5V～13.8V(25℃)
Cycle Use 14.7V～14.9V(25℃)
Recommended Charge Current 0.23A @12V
Max (Emergency) Charge Current 0.57A @12V
Applications: Electric vehicle, solar power, wind power, telecom systems, UPS,
Medical
