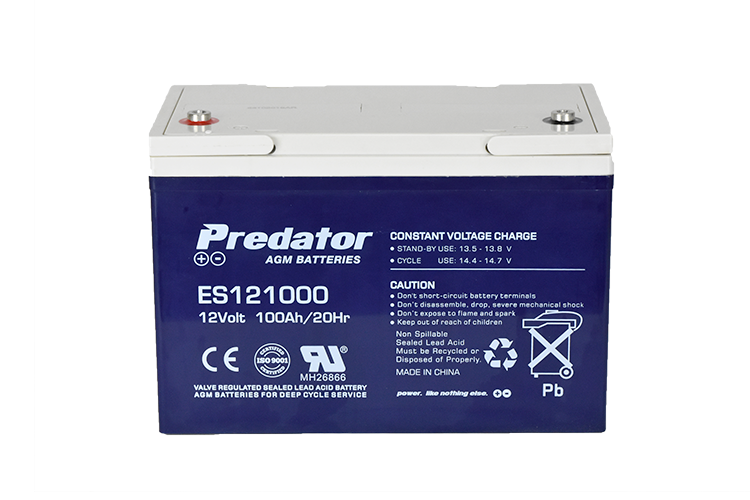

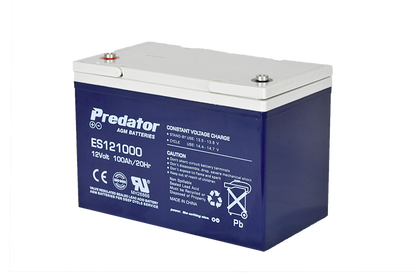

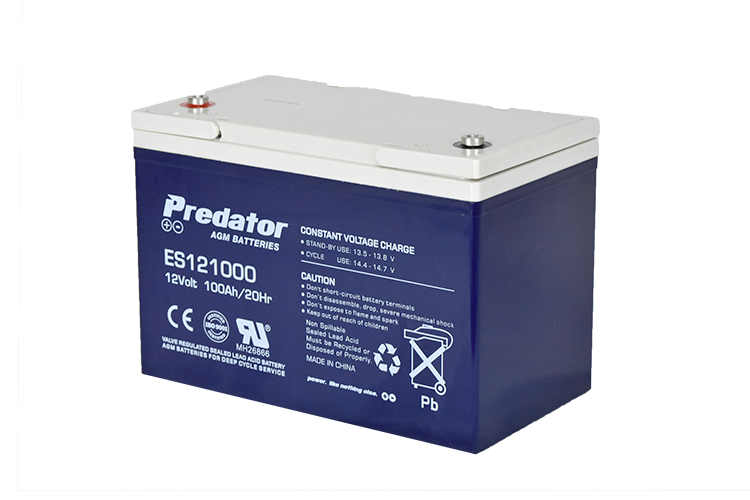

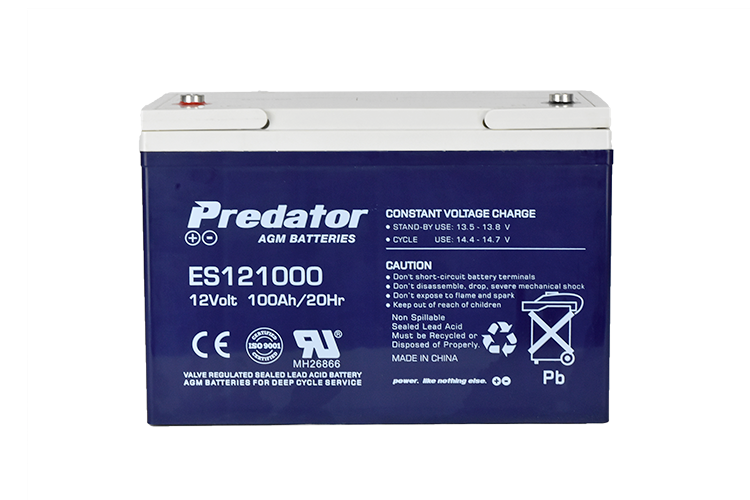

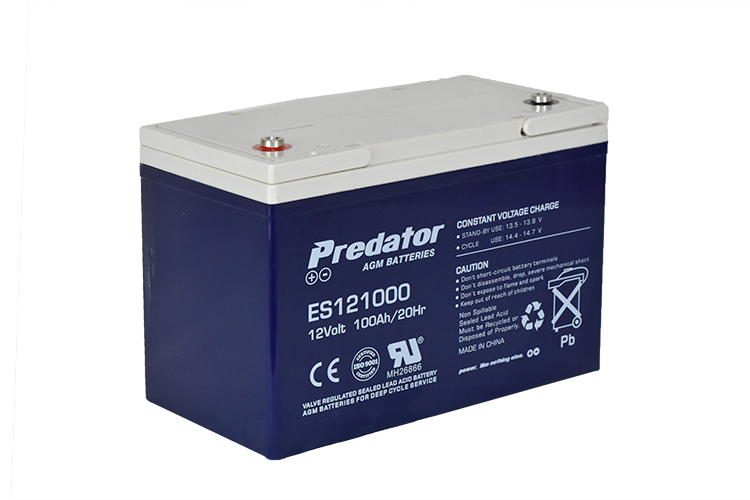

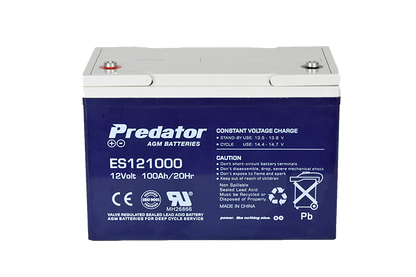

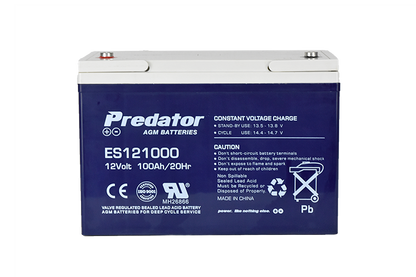

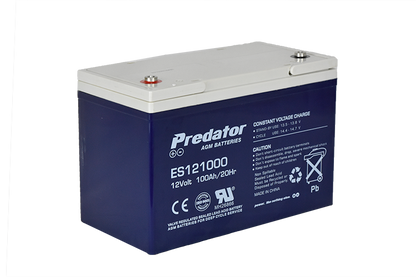

PREDATOR 12V 100AH MULTI-PURPOSE AGM BATTERY
PREDATOR 12V 100AH MULTI-PURPOSE AGM BATTERY
SKU:ES121000
Couldn't load pickup availability
Predator ES batteries are general purpose Absorbent Glass Mat (AGM) cycling batteries available in 1.3-260 Ah sizes. They are designed for every day general and light cycling duties and are ideally suited for standby or float applications such as:
- Electronic Toys & Equipment
- E-Scooters & Bikes
- Emergency Lighting
- Electronic Light Displays
- UPS Systems
- Automation Systems
- Security Systems
- Vending Machines
- Control Equipment
The Predator ES range is approved under the CSIRO ActivFire Scheme and is listed in the Register of Fire Protection Equipment for fire panels and systems, proving they are one of the safest, most reliable batteries on the market.
The ES range of Absorbent Glass Mat (AGM) Batteries use compressible glass mats as separators between the plates and contain the electrolyte required for the chemical reaction inside the battery. This design reduces the internal resistance which improves overall efficiency of the battery.
Features and Benefits
-
VRLA Construction
No electrolyte leakage from casing or terminals. -
Maintenance Free Operation
No need to check or add water. Efficient operation in any orientation except inverted. -
Low Self-Discharge
Lower self discharge rate extends shelf life. -
Highest Purity Fine Grain Lead
99.9% lead is used to create grids with significantly stronger grain structure and higher resistance to corrosion. -
High Strength ABS Casing
Designed to withstand elevated operating temperatures and maintain high battery cell compression, essential for reliable operation
| Nominal Voltage | 12V |
| Rated Capacity |
| 20 Hour Rate（5.0A to 10.8V ) | 100Ah |
| 10 Hour Rate（9.3A to 10.8V ) | 93Ah |
| 5 Hour Rate (17.0A to 10.5V ) | 85Ah |
| 1 Hour Rate (58.0A to 9.6V ) | 58Ah |

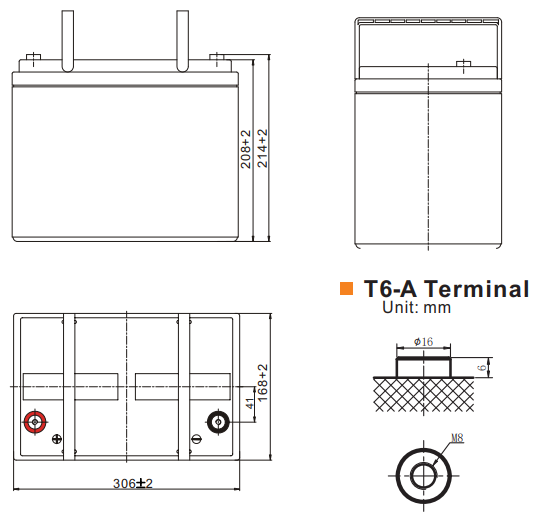

| Dimension and Weight |
| Length | 306±2mm |
| Width | 168±2mm |
| Height | 208±2mm |
| Total Height | 211±2mm |
| Weight | 28.3Kg |
| Casing Material | ABS |
| Self discharge Rate（25℃) | ≥91%/3month |
| Internal Resistance | Fully charged Battery ≤5.0mΩ |
| Operating Temperature Range |
| Discharge | -15℃(5°F)～50℃(122°F) |
| Charge | 0℃(32°F)～40℃(104°F) |
| Storage | -15℃(5°F)～40℃(104°F) |
| Charging Methods |
| Float Use | 13.5V～13.8V(25℃) |
| Cycle Use | 14.7V～14.9V(25℃) |
| Recommended Charge Current | 10A @12V |
| Max (Emergency) Charge Current | 25A @12V |
|
Applications: Electric vehicle, solar power, wind power, telecom systems, UPS, Medical |
