VICTRON ENERGY

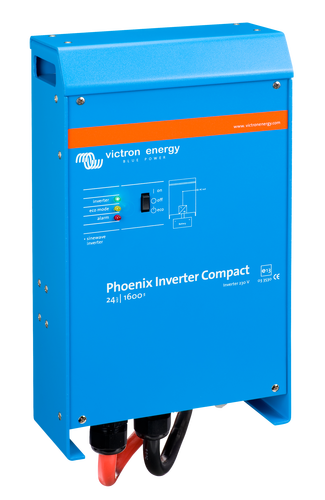

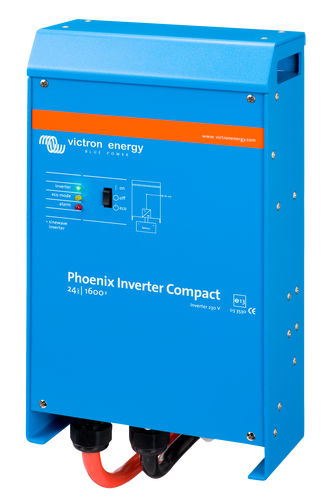

PHOENIX INVERTER COMPACT 24V/1600VA VE.BUS
PHOENIX INVERTER COMPACT 24V/1600VA VE.BUS
SKU:CIN241620000
The Inverter Compact is a pure sine wave inverter with a high efficiency. It is developed for professional duty and suitable for the wide range of applications.
The Inverters Compact is available from 1200VA up to 2000VA in 12V or 24V.
SinusMax - Superior engineering
Developed for professional duty, this range of inverters is suitable for the widest range of applications. The design
criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in
performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light
in weight and capable of supplying power, problem-free, to any load.
Extra start-up power
A unique feature of the SinusMax technology is very high start-up power. Conventional high frequency
technology does not offer such extreme performance. The Inverters, however, are well suited to power up difficult
loads such as refrigeration compressors, electric motors and similar appliances.
Virtually unlimited power thanks to parallel and 3-phase operation capability
Up to 6 units inverters can operate in parallel to achieve higher power output. Six 24/5000 units, for example, will
provide 24 kW / 30 kVA output power. Operation in 3-phase configuration is also possible.
To transfer the load to another AC source: the automatic transfer switch
If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch
is included in these products and the charger function of the MultiPlus can be disabled. Computers and other
electronic equipment will continue to operate without disruption because the MultiPlus features a very short
switchover time (less than 20 milliseconds).
Communications interface
These larger inverter models come with a VE.Bus port. All you need to connect to your PC is our MK3-USB VE.Bus
to USB interface (see under accessories). Together with our VictronConnect or VEConfigure software, which can
be downloaded free of charge from our website, parameters of the inverters can be customized. This includes
output voltage and frequency, over and under voltage settings and programming the relay. This relay can for
example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected
to a GX device (eg Cerbo GX) for monitoring and control.
Parallel and 3-phase operation | Yes |
Input voltage range (VDC) | 19 – 33 V |
Cont. output power at 25 ºC | 1300W |
Cont. output power at 40 ºC | 1200W |
Cont. output power at 65 ºC | 800W |
Peak power | 3000W |
Max. efficiency | 94% |
Zero load power | 10W |
Zero load power in AES mode | 8W |
Zero load power in Search mode | 3W |
Programmable relay | Yes |
Protection | output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, input voltage ripple too high |
VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
Remote on-off | Yes |
Battery-connection | battery cables of 1.5 meter included |
Weight | 10kg |
Dimensions (H x W x D) | 375 x 214 x 110mm |
