PATROL GU Y61 BC-DC UNDER BONNET DUAL BATTERY COMPLETE PACKAGE
PATROL GU Y61 BC-DC UNDER BONNET DUAL BATTERY COMPLETE PACKAGE
SKU:DBUB-PATROLGU4.2LTDIBCDCPKA
Couldn't load pickup availability

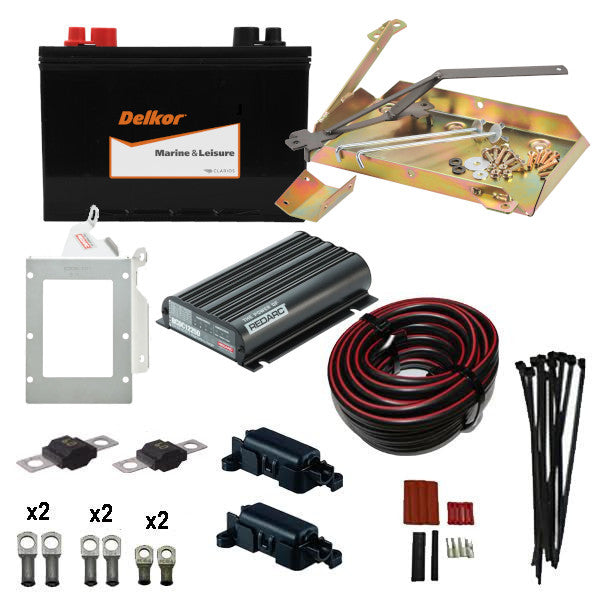

| This Package Includes: |
| 1 x DELKOR M27 MARINE & LEASURE BATTERY |
| 1 x PROJECTA HDBT152 BATTERY TRAY |
| 1 x REDARC BCDC1225D 25A DUAL BATTERY CHARGER |
| 1x REDARC BCDCMB-010 BCDC MOUNTING BRACKET |
| 3 Meters 8MM SINGLE CORE RED CABLE |
| 3 Meters 8MM SINGLE CORE BLACK CABLE |
| 6 Meters 8MM TWINCORE CABLE |
| 2 x MIDI FUSE HOLDERS |
| 2 x 40A MIDI FUSES |
| 4 x 10-6mm CABLE LUGS |
| 4 x 10-8mm CABLE LUGS |
| 4 x 10-10mm CABLE LUGS |
| 1 x DUAL BATTERY ZIP TIE AND HEATSHRINK PACK |
Suits: Patrol GU TD42 4.2 Litre & 3 Litre TDI
Models: Auto/Manual
Years: 1999-2014
Max Battery Size (mm): L300 x W174 x H220
Max Battery Weight: 23Kg
Suits Battery: N70

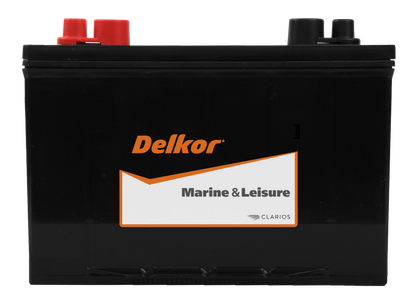

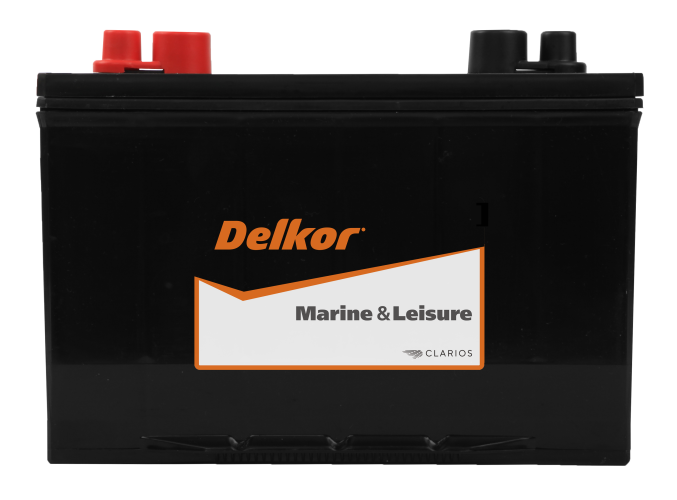

DELKOR M27 MARINE & LEISURE
Perfect for recreational vehicles and dual battery systems. Perfect for the well-deserved leisure time you've been waiting for.
Key Benefits
- Convenient maintenance-free battery, no topping up of fluid required
- Reliable electrical performance with wrought grid plates
- Added strength and vibration resistance with anchor bonding
- Increased durability with high-strength polypropylene case
- Enhanced safety with heat-sealed covers and built-in spark arrestor
- Ideal for dual-power applications
| MODEL | M27 |
| CCA | 680 |
| AH(20HR) | 97 |
| LENGTH | 305 |
| WIDTH | 172 |
| HEIGHT | 225 |
| VOLTAGE | 12v |
| GROUP SIZE | GP27 |

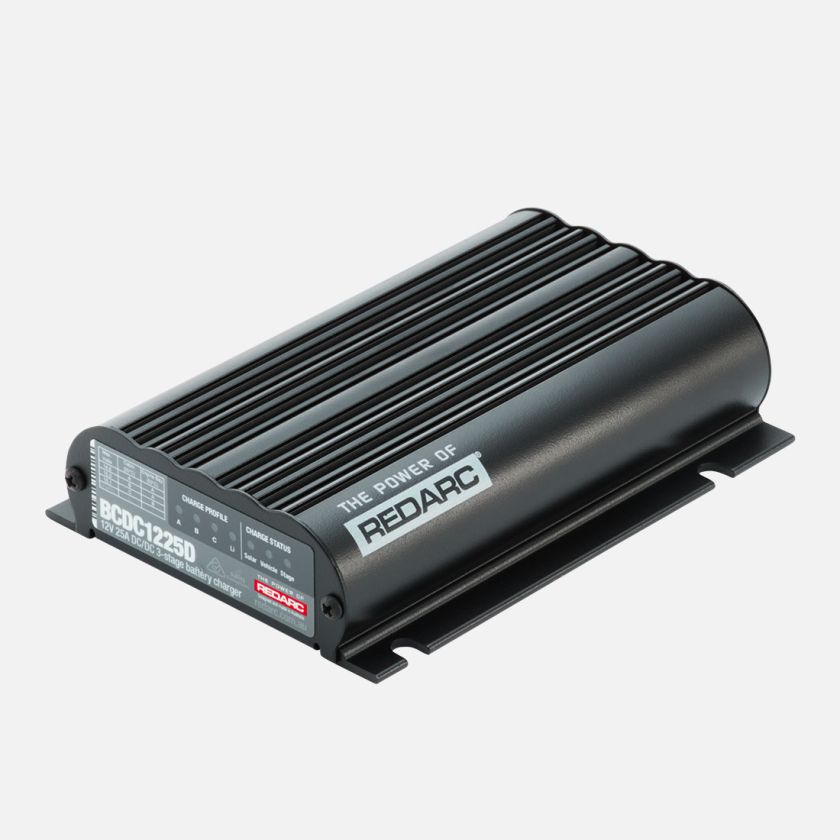

REDARC BCDC1225D 25A DC-DC CHARGER
The REDARC BCDC1225D under bonnet Battery Charger is a 12V 25A DC to DC battery charger, capable of high performance in engine bay installations, potted to survive and thrive against heat, water and dust.
Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the BCDC1225D Classic will charge from both solar and the alternator simultaneously. And, with built-in 'Green Power Priority' it will select solar charging first, meaning less load on the alternator.
Suitable for 12 or 24-volt vehicle systems, the unit will also work with either standard or variable/smart alternators.
The BCDC1225D features the same patented charging profiles as it’s predecessor along with a new lithium charging profile making the unit suitable for charging AGM, Gel, Standard Lead Acid, Calcium and LiFePO4 batteries.
| WARRANTY | 2 Years |
|---|---|
| BRAND | REDARC |
| BATTERY CHEMISTRY | Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only |
| POWER TYPE - AC DC | DC TO DC |
| NOMINAL OUTPUT POWER | 375W |
| INPUT FUSE RATING | 40A |
| SOLAR SWITCH ON VOLTAGE | 9V |
| SUITABLE FOR 12V SYSTEMS | Yes |
| SUITABLE FOR 24V SYSTEMS | Yes |
| SOLAR INPUT VOLTAGE | 9 - 32V |
| MPPT SOLAR REGULATOR | Yes |
| CABIN/ CANOPY INSTALL | Yes |
| NO LOAD CURRENT | <100mA |
| TRAILER INSTALL | Yes |
| ENGINE BAY INSTALL | Yes |
| MAX. CHARGING VOLTAGE | 15.3V |
| OUTPUT FUSE RATING | 40A |
| OPERATING TEMPERATURE | -15°C to 80°C |
| OUTPUT VOLTAGE | 12V DC |
| MAX. RATED OUTPUT CURRENT | 25A |
| INPUT VOLTAGE | 9 - 32V |
| STANDBY CURRENT | <8mA |
| CONNECTOR TYPE | Bare wire |
| WEIGHT | 1 kg |
| WIDTH | 120 mm |
| HEIGHT | 37 mm |
| DEPTH | LENGTH | 165 mm |

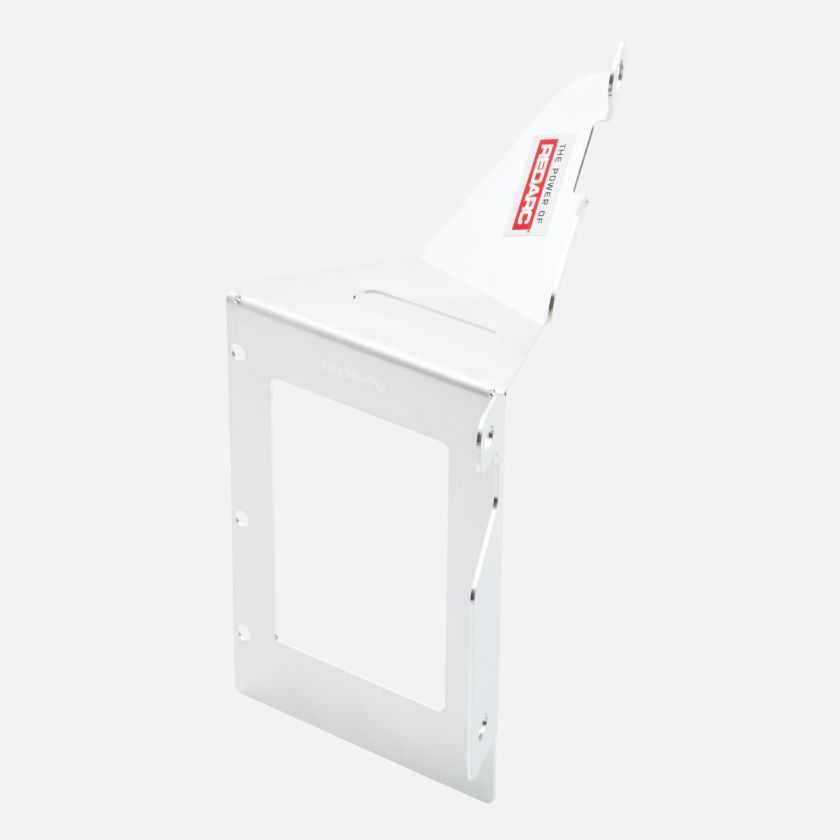

REDARC BCDC MOUNTING BRACKET
This mounting bracket is manufactured from robust 304 stainless steel and is purpose-built to fit the BCDC DC-DC charger into existing mounting points located within a vehicle's engine bay. By using this mounting bracket, you will guarantee a neat and professional installation of your REDARC dual battery charger.
Another advantage of this Mounting Bracket is that it positions the BCDC Charger at the front of the vehicle where it will receive cool airflow which results in optimal performance.
Included in this kit is everything needed for a hassle-free installation including comprehensive instructions, fasteners and mounting bracket.

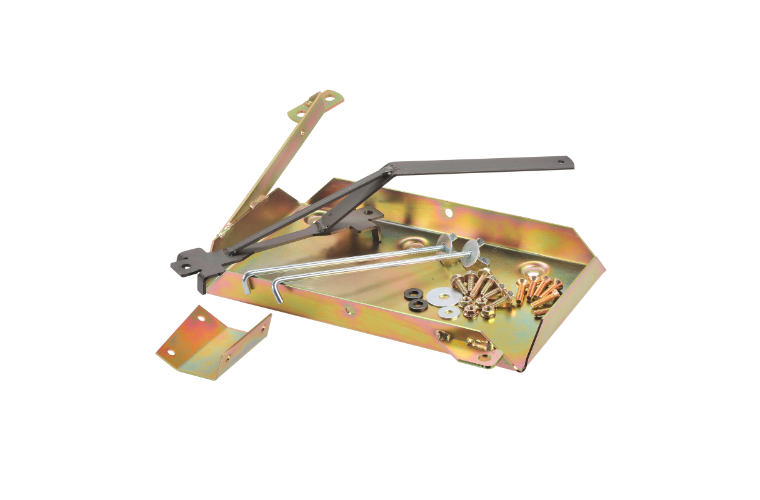

PROJECTA DUAL BATTERY TRAY (HDBT152)
