Orion XS 12/12-50A DC-DC battery charger |
|
---|---|
Input voltage range |
9-17V |
Output voltage adjust range |
10-17V |
Output voltage tolerance |
+/- 0.25% (max) |
Output voltage noise |
10mV rms |
Input and output current setting range |
1 - 50A |
Maximum constant short-circuit current |
50A |
Continuous output power up to 40 °C 1) |
700W |
Maximum efficiency |
98.5% |
No-load current consumption |
< 100mA |
Standby current consumption |
< 1.5mA |
Communication ports |
|
Bluetooth Smart |
Yes |
VE.Direct |
Yes |
Other |
|
Operating temperature range |
-20 to +60 °C (derating 1.5% per °C above 40 °C) |
Protection category |
IP65 |

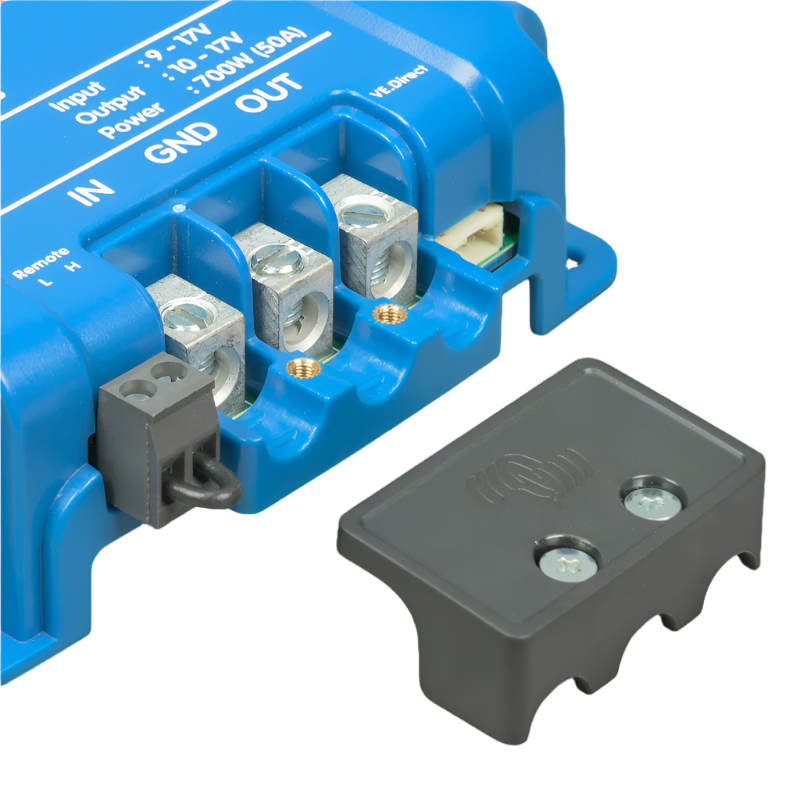

DC connection |
Screw terminals |
Maximum cable cross-section |
4AWG (21.2mm2) |
Weight |
0.330kg (0.73 lb) |
Dimensions h x w x d |
137.3 x 123.1 x 40mm (5.4 x 4.85 x 1.6 inch) |
Standards |
|
Safety Emission Immunity Automotive Directive |
IEC 62477-1 IEC 61000-6-3, EN 55014-1 IEC 61000-6-2, IEC 61000-6-1, EN 55014-2 ECE R10-5 |
1) This applies to optimal cooling where the product is mounted as indicated in the manual with sufficient free space. In case of limited cooling, e.g. due to insufficient airflow, the charging current will be regulated back sooner. With an improved airflow (e.g. forced airflow), derating will take place far above tamb 40°C. |
