VICTRON ENERGY

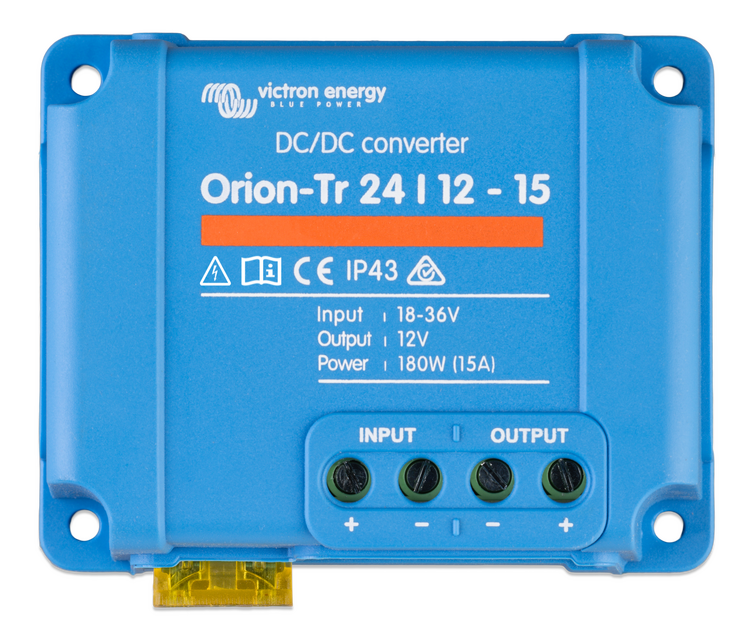

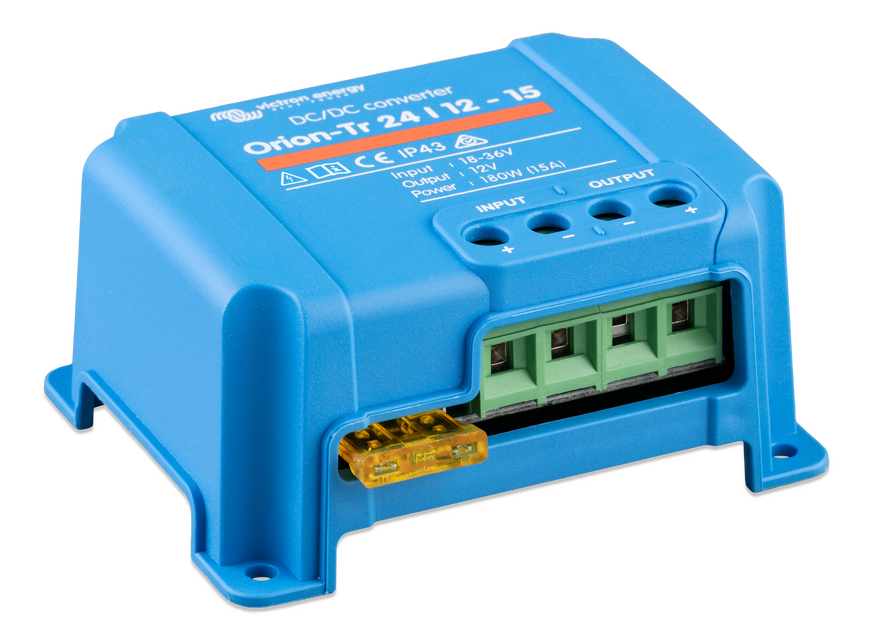

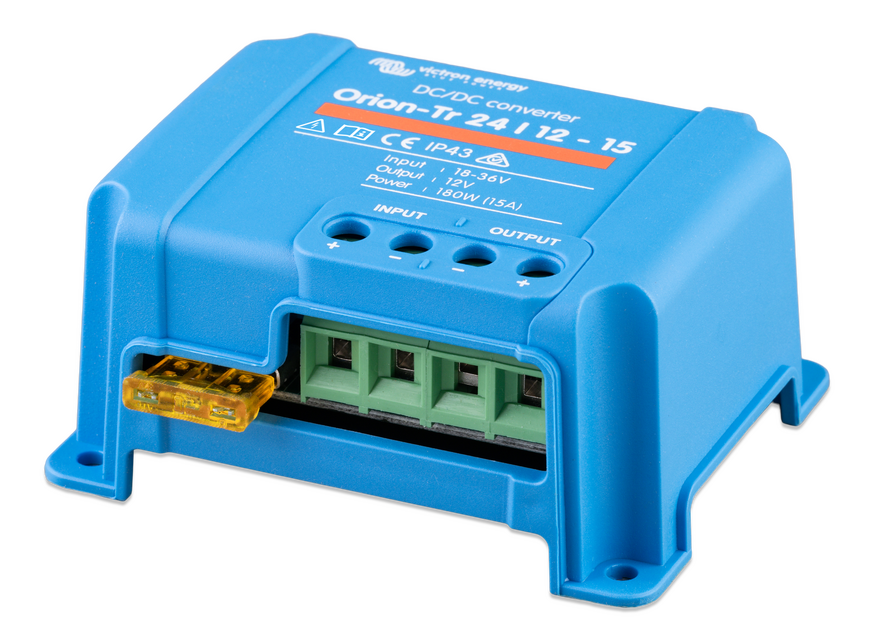

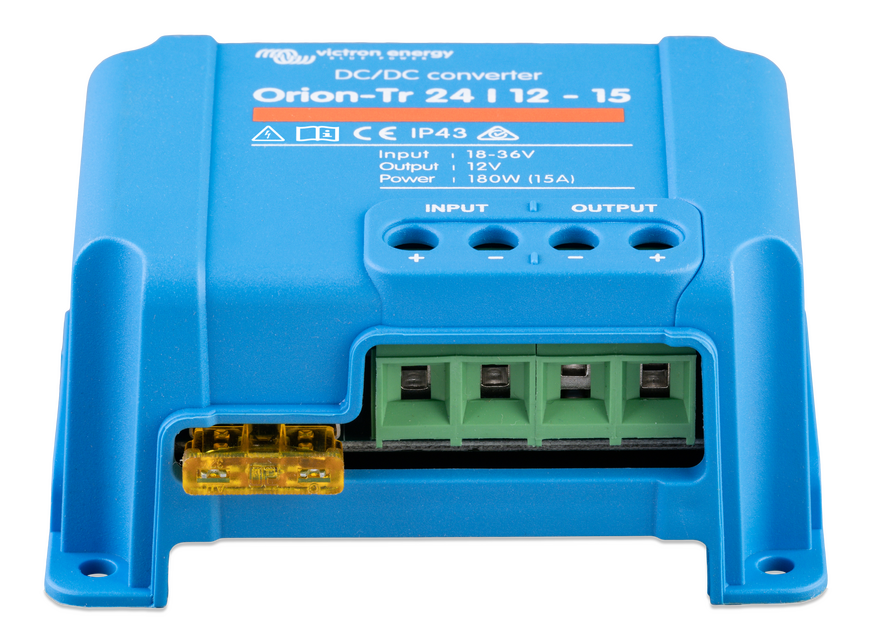

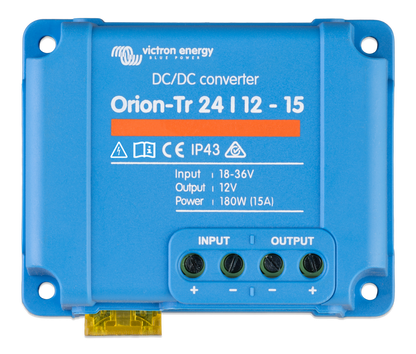

ORION-TR 24V TO 12V-15A (180W) DC-DC CONVERTER

ORION-TR 24V TO 12V-15A (180W) DC-DC CONVERTER

ORI241215200

$57.50
$57.50
Sale Sold out
Taxes included. Shipping calculated at checkout.

High efficiency

Using synchronous rectification, full load efficiency exceeds 95%.

IP43 protection

When installed with the screw terminals oriented downwards.

Screw terminals

No special tools needed for installation.

Input voltage range 18-35V
Output voltage 12.5V
Efficiency 97%
Continuous output current 15A
Max. Output current 20A
Galvanic isolation NO
Off load current < 35mA
Operating temperature range -20 to +55°C
DC connection Screw terminals
Maximum cable cross-section 6 mm²
AWG10
Weight 0,25 kg
Dimensions HxWxD 73x94x45 mm
