VICTRON ENERGY

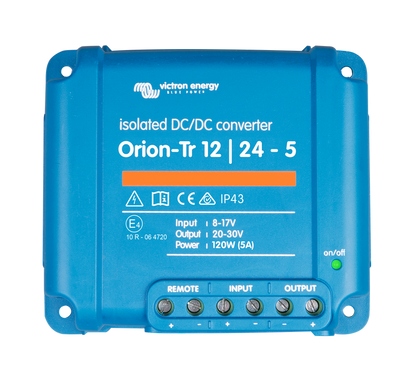

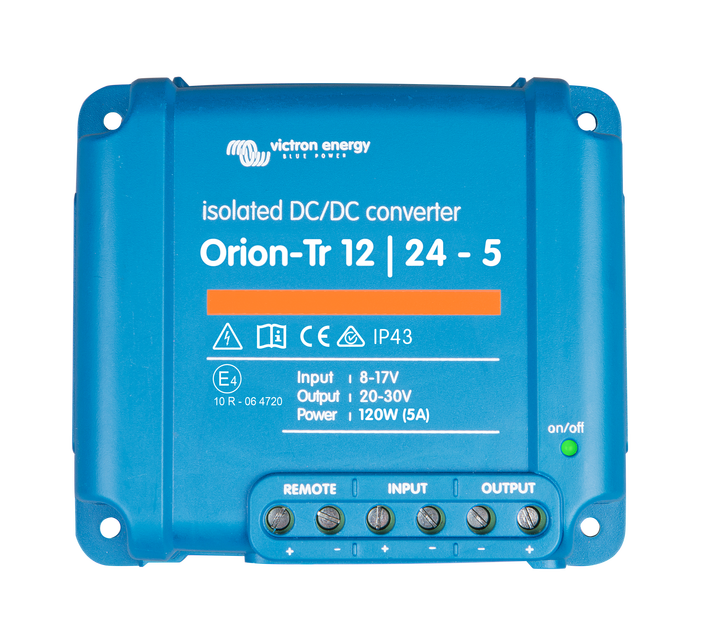

ORION-TR 12V TO 24V-5A (120W) ISOLATED DC-DC CONVERTER

ORION-TR 12V TO 24V-5A (120W) ISOLATED DC-DC CONVERTER

ORI122410110

$98.00
$98.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Remote on/off terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch

All models are short circuit proof and can be paralleled to increase output current

An unlimited number of units can be connected in parallel.

High temperature protected

The output current will reduce at high ambient temperature.

IP43 protection

When installed with the screw terminals oriented downwards.

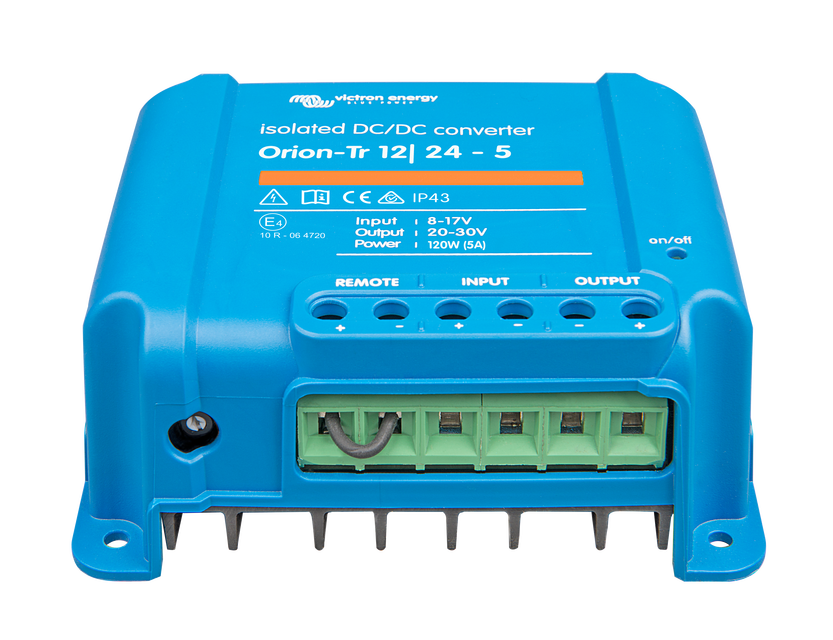

Screw terminals

No special tools needed for installation.

Input fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable output voltage

Not intended for battery charging.
Please consider using an Orion-Tr Smart for battery charging.

Input voltage range 8-17 V
Under voltage shut down 7 V
Under voltage restart 7,5 V
Nominal output voltage 24.2 V
Output voltage adjust range 20-30 V
Output voltage tolerance +/- 0.2 V
Output noise 2mV rms
Cont. output current at nominal
output voltage and 25 °C		 5 A
Maximum output current (10 s)
at nominal output voltage		 6.3 A
Short circuit output current 23 A
Cont. output power at 25 °C 120 W
Cont. output power at 40 °C 110 W
Efficiency 88 %
No load input current (2) < 80 mA
Current consumption < 200uA when disabled via its remote port
Galvanic isolation 200 V dc between input, output and case
Operating temperature range -20 to +55 °C
Humidity Max. 95 % non-condensing
DC connection Screw terminals
Maximum cable cross-section 6 mm² AWG10
Weight 0,42 kg
Dimensions HxWxD 100 x 113 x 47 mm
