VICTRON ENERGY

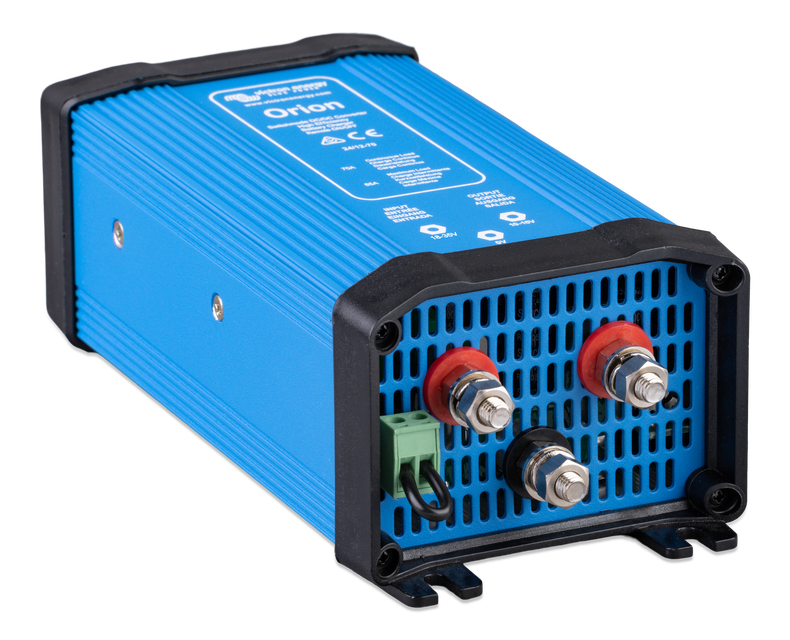

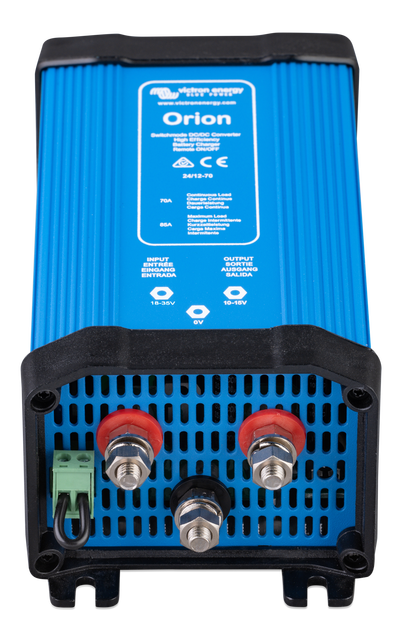

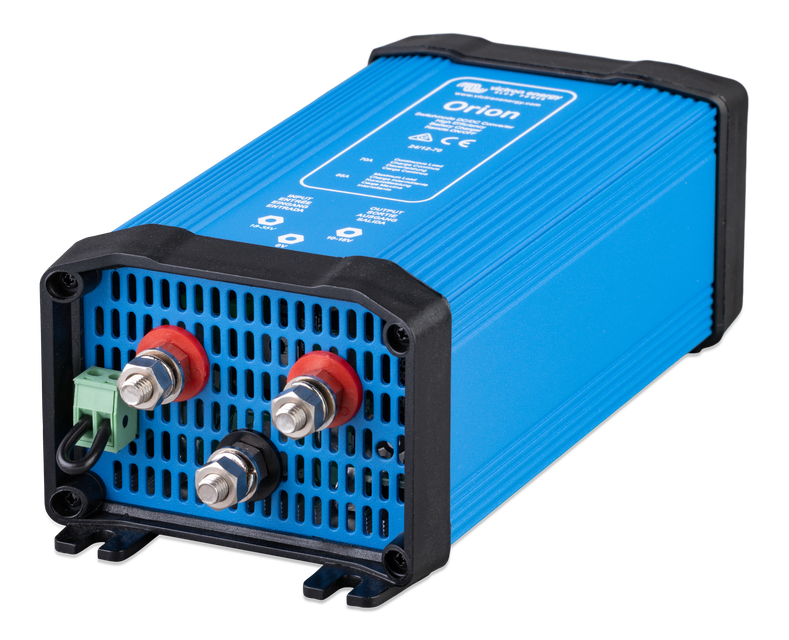

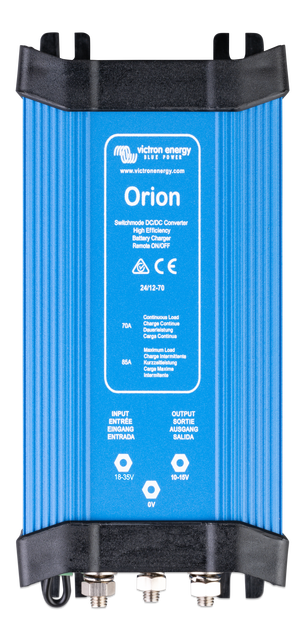

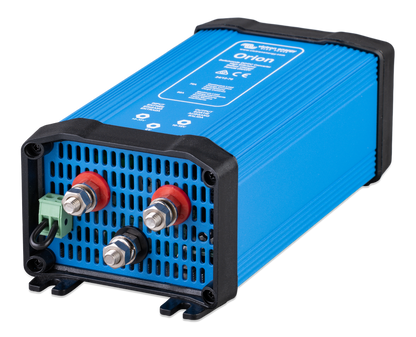

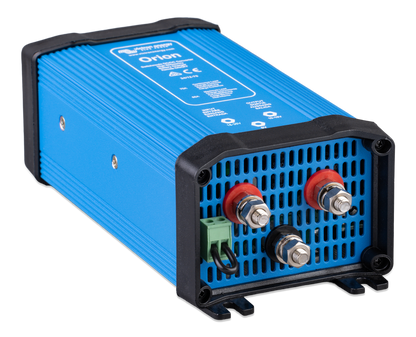

ORION 24V TO 12V-70A DC-DC CONVERTER IP20
ORION 24V TO 12V-70A DC-DC CONVERTER IP20
SKU:ORI241270020
Regular price
$192.00
Regular price
Sale price
$192.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Remote on/off connector
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).
All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.
| Input voltage range | 18-35 V |
| Under voltage shutdown | 14 V |
| Under voltage restart | 18 V |
| Output voltage adjustable with potentiometer |
Yes |
| Output voltage | Adjustable 10–15V F set 13,2V |
| Efficiency | 92 % |
| Suitable to buffer-charge a battery | Yes |
| Can be connected in parallel | Yes |
| Continuous output current | 70 A |
| Max. Output current | 85 A |
| Fan assisted cooling (temp. controlled) | Yes |
| Galvanic isolation | No |
| Off load current | < 20mA |
| Remote on-off | Yes |
| Operating temperature range | -20 to +55°C |
| DC connection | M6 bolts |
| Weight | 0.9 kg |
| Dimensions HxWxD | 65x88x195 mm |
