VICTRON ENERGY

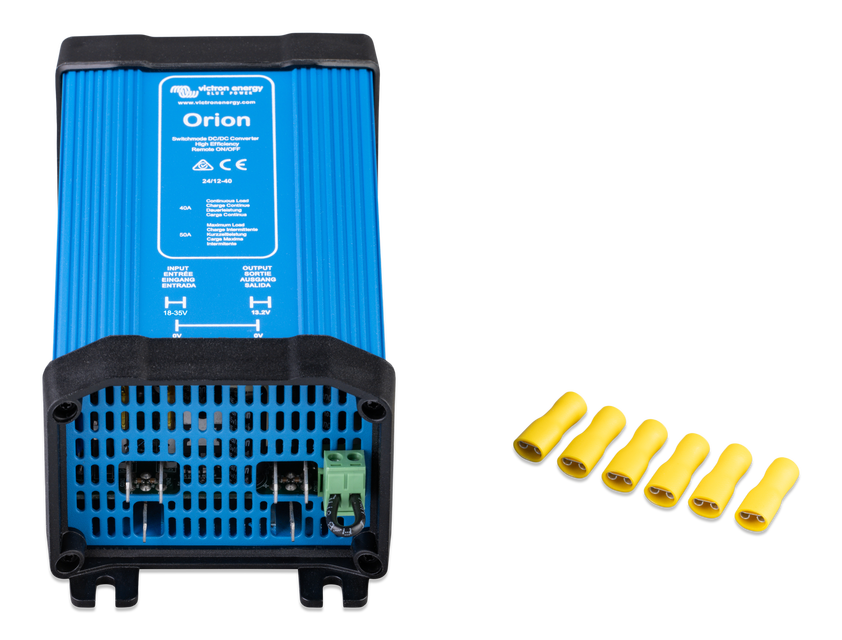

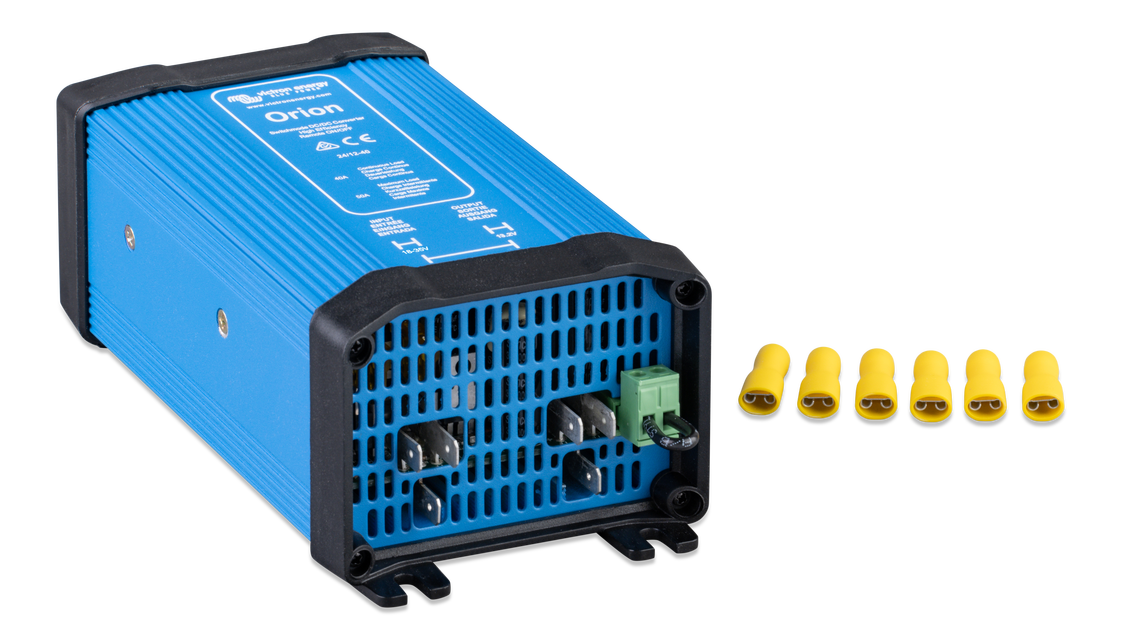

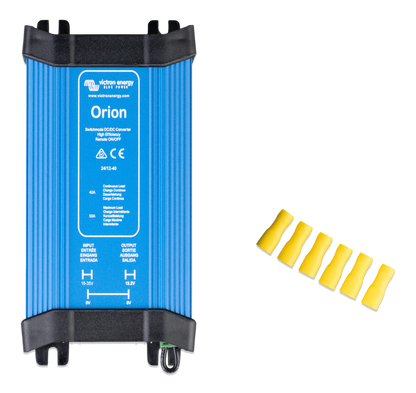

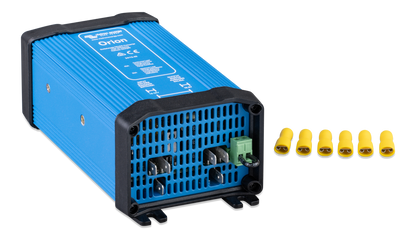

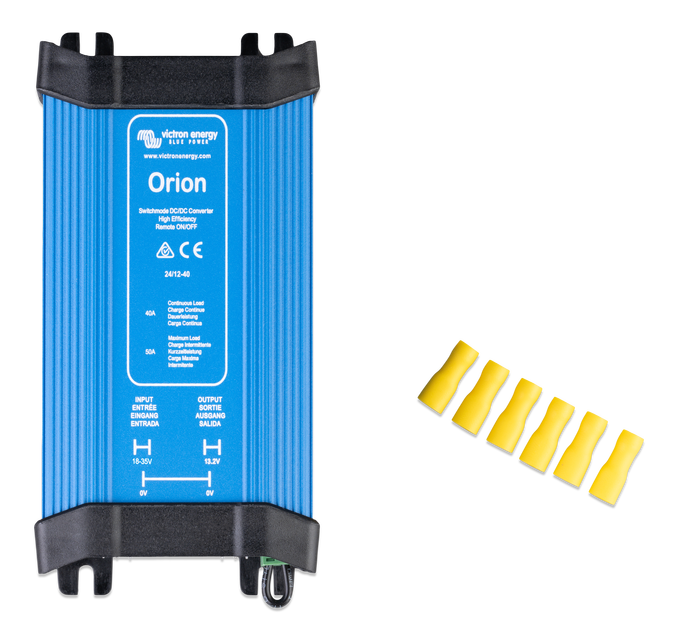

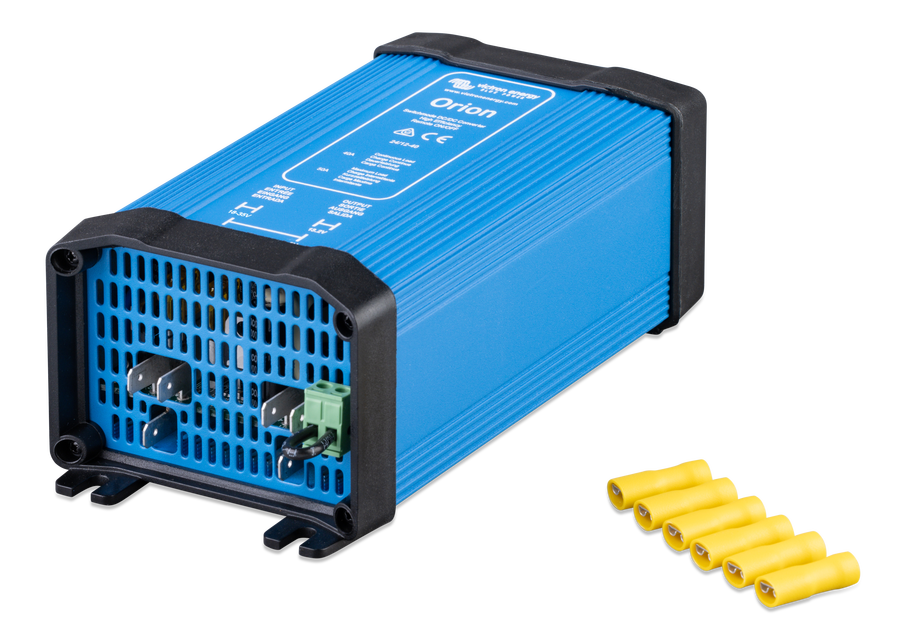

ORION 24V TO 12V-40A DC-DC CONVERTER

ORION 24V TO 12V-40A DC-DC CONVERTER

ORI241240021

$144.00
$144.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Remote on-off connector

The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

Easy to install

Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).

Input voltage range 18-35 V
Under voltage shutdown 14 V
Under voltage restart 18 V
Output voltage
adjustable with potentiometer		 No
Output voltage 13,2 V
Efficiency 95 %
Suitable to buffer-charge a battery No
Can be connected in parallel No
Continuous output current 40 A
Max. Output current 55 A
Fan assisted cooling (temp. controlled) Yes
Galvanic isolation No
Off load current < 20mA
Remote on-off Yes
Operating temperature range -20 to +55°C
DC connection Double
Faston tabs
6.3 mm
Weight 0.85 kg
Dimensions HxWxD 65x88x185 mm
