VICTRON ENERGY

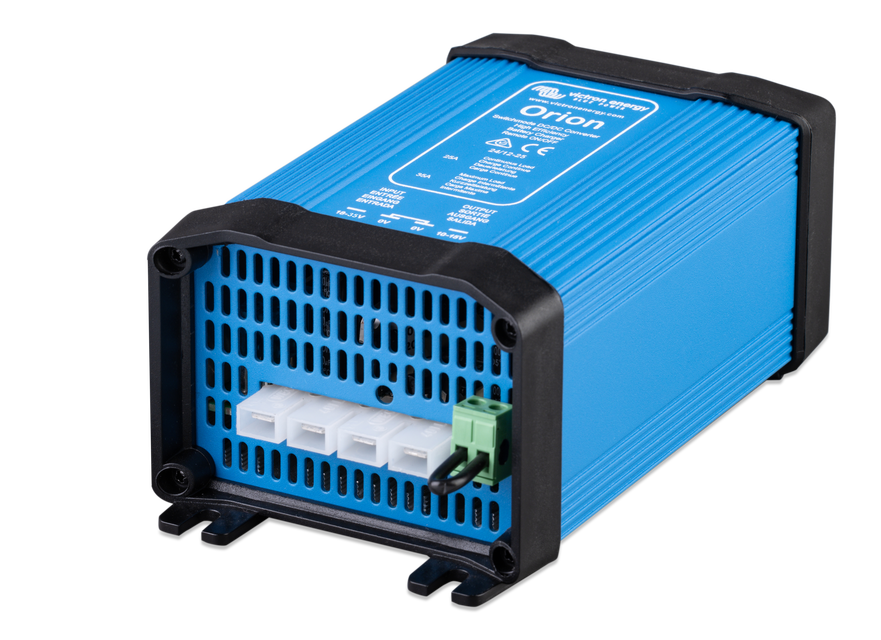

ORION 24V TO 12V-25A DC-DC CONVERTER IP20

ORION 24V TO 12V-25A DC-DC CONVERTER IP20

ORI241225020

$106.50
$106.50
Sale Sold out
Taxes included. Shipping calculated at checkout.

Remote on-off connector

The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

All models with adjustable output can also be used as a battery charger

For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models with adjustable output can be paralleled to increase output current

Up to five units can be connected in parallel.

Easy to install

Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40).

Input voltage range 18-35 V
Under voltage shutdown 14 V
Under voltage restart 18 V
Output voltage
adjustable with potentiometer		 Yes
Output voltage Adjustable
10–15V
F set 13,2V
Efficiency 96 %
Suitable to buffer-charge a battery Yes
Can be connected in parallel Yes
Continuous output current 25 A
Max. Output current 35 A
Fan assisted cooling (temp. controlled) No
Galvanic isolation No
Off load current < 15mA
Remote on-off Yes
Operating temperature range -20 to +55°C
DC connection Faston tabs
6.3 mm
Weight 0.7 kg
Dimensions HxWxD 65x88x160 mm
