NAVARA D22 2.5L WITH SNORKEL (2008 ON) BC-DC UNDER BONNET DUAL BATTERY COMPLETE PACKAGE

NAVARA D22 2.5L WITH SNORKEL (2008 ON) BC-DC UNDER BONNET DUAL BATTERY COMPLETE PACKAGE

DBUB-NARVARAD222.5LSNBCDC25PK

$1,257.50
$1,257.50
Sale Sold out
Taxes included. Shipping calculated at checkout.

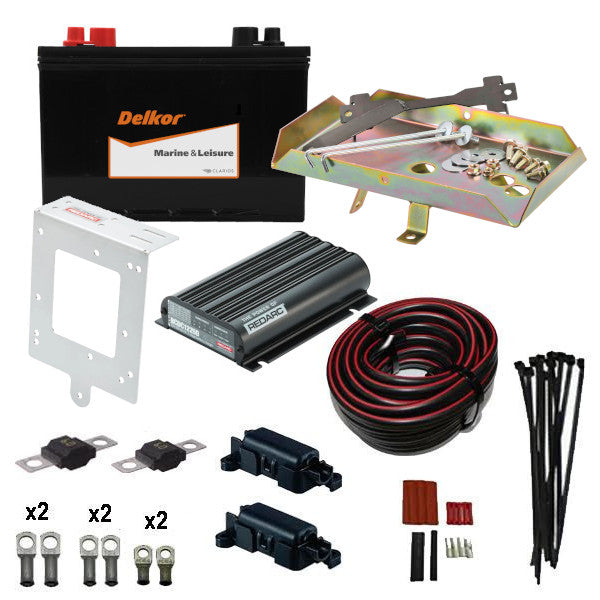

 This Package Includes:
1 x DELKOR M24 MARINE & LEASURE BATTERY
1 x PROJECTA HDBT154 BATTERY TRAY
1 x REDARC BCDC1225D 25A DUAL BATTERY CHARGER
1x BCDC UNIVERSAL MOUNTING BRACKET
3 Meters 8MM SINGLE CORE RED CABLE
3 Meters 8MM SINGLE CORE BLACK CABLE
6 Meters 8MM TWINCORE CABLE
2 x MIDI FUSE HOLDERS
2 x 50A MIDI FUSES
4 x 10-6mm CABLE LUGS
4 x 10-8mm CABLE LUGS
4 x 10-10mm CABLE LUGS
1 x DUAL BATTERY ZIP TIE AND HEATSHRINK PACK


Suits: Navara D22 2.5 Litre Diesel
Models: Auto/Manual
Years: 2008 onwards
Max Battery Size (mm): L265 x W175 H220 (Snorkel fitted)
Max Battery Weight: 17Kg (Snorkel fitted)
Suits Battery: N50 (Snorkel fitted)

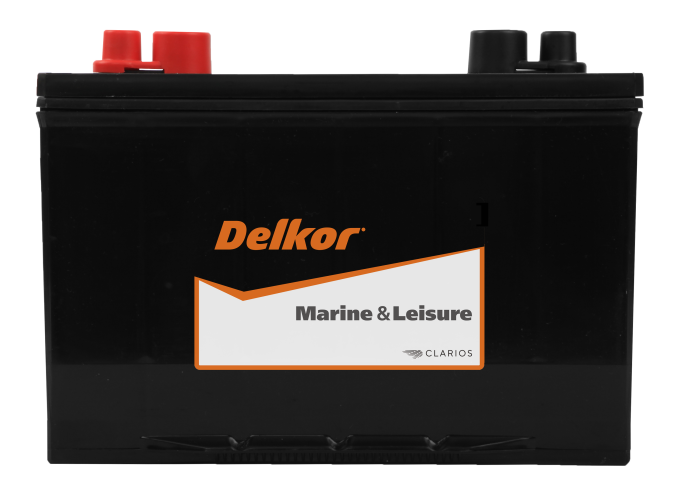

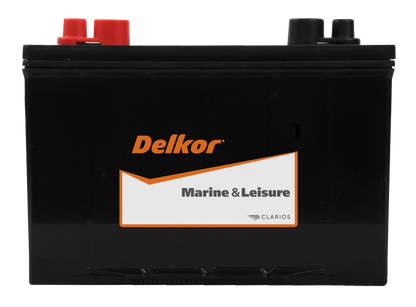

DELKOR M24 MARINE & LEISURE

Perfect for recreational vehicles and dual battery systems. Perfect for the well-deserved leisure time you've been waiting for.

Key Benefits

  • Convenient maintenance-free battery, no topping up of fluid required
  • Reliable electrical performance with wrought grid plates
  • Added strength and vibration resistance with anchor bonding
  • Increased durability with high-strength polypropylene case
  • Enhanced safety with heat-sealed covers and built-in spark arrestor
  • Ideal for dual-power applications

MODEL   M24
CCA 520
AH(20HR)  82
LENGTH  275
WIDTH  172
HEIGHT  225
VOLTAGE 12v
GROUP SIZE GP24HC

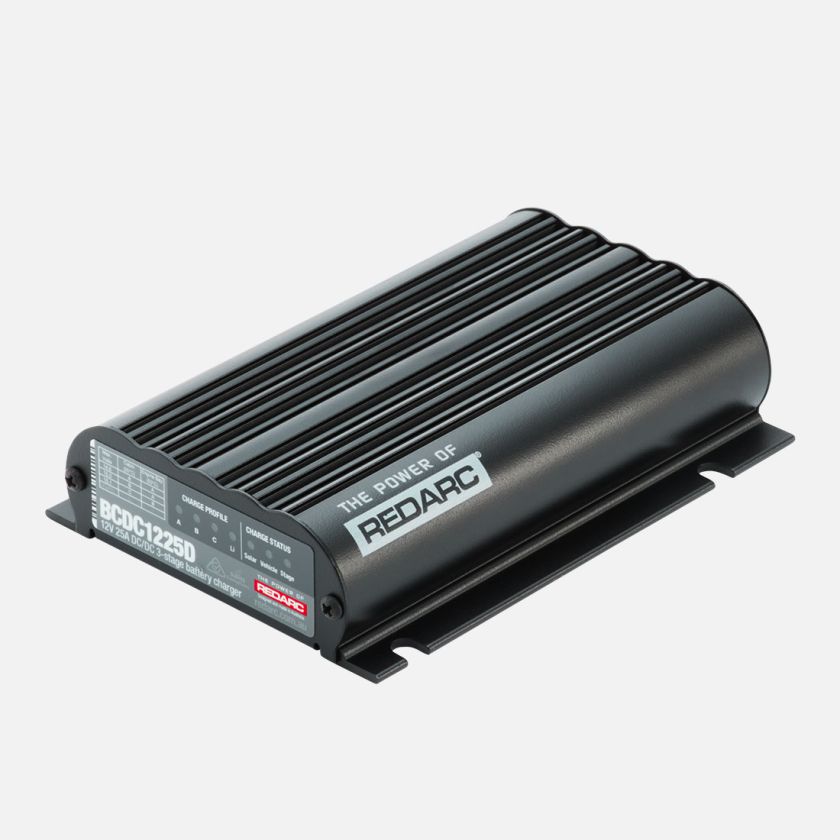

REDARC BCDC1225D DC-DC CHARGER

The REDARC BCDC1225D under bonnet Battery Charger is a 12V 25A DC to DC battery charger, capable of high performance in engine bay installations, potted to survive and thrive against heat, water and dust.

Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the BCDC1225D Classic will charge from both solar and the alternator simultaneously. And, with built-in 'Green Power Priority' it will select solar charging first, meaning less load on the alternator.

Suitable for 12 or 24-volt vehicle systems, the unit will also work with either standard or variable/smart alternators.

The BCDC1225D features the same patented charging profiles as it’s predecessor along with a new lithium charging profile making the unit suitable for charging AGM, Gel, Standard Lead Acid, Calcium and LiFePO4 batteries, perfect for pairing with a REDARC Lithium battery.

For most applications, the BCDC1225D is suitable for battery bank sizes of 75-200AH. For higher capacity needs of over 200AH, REDARC recommends the BCDC1240D.

Features
Separate DC and solar charging inputs
Maximises the performance and life of your auxiliary battery
Simultaneous DC and solar charging with Green Power Priority
Suits 12V/24V standard and variable voltage/smart alternators
Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
Suitable for use on vehicles with conventional alternator charging systems
WARRANTY
2 Years
BRAND
REDARC
BATTERY CHEMISTRY
Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only
POWER TYPE - AC DC
DC TO DC
NOMINAL OUTPUT POWER
375W
INPUT FUSE RATING
40A
SOLAR SWITCH ON VOLTAGE
9V
SUITABLE FOR 12V SYSTEMS
Yes
SUITABLE FOR 24V SYSTEMS
Yes
SOLAR INPUT VOLTAGE
9 - 32V
MPPT SOLAR REGULATOR
Yes
CABIN/ CANOPY INSTALL
Yes
NO LOAD CURRENT
<100mA
TRAILER INSTALL
Yes
ENGINE BAY INSTALL
Yes
MAX. CHARGING VOLTAGE
15.3V
OUTPUT FUSE RATING
40A
OPERATING TEMPERATURE
-15°C to 80°C
OUTPUT VOLTAGE
12V DC
MAX. RATED OUTPUT CURRENT
25A
INPUT VOLTAGE
9 - 32V
STANDBY CURRENT
<8mA
CONNECTOR TYPE
Bare wire
WEIGHT
1 kg
WIDTH
120 mm
HEIGHT
37 mm
DEPTH | LENGTH
165 mm

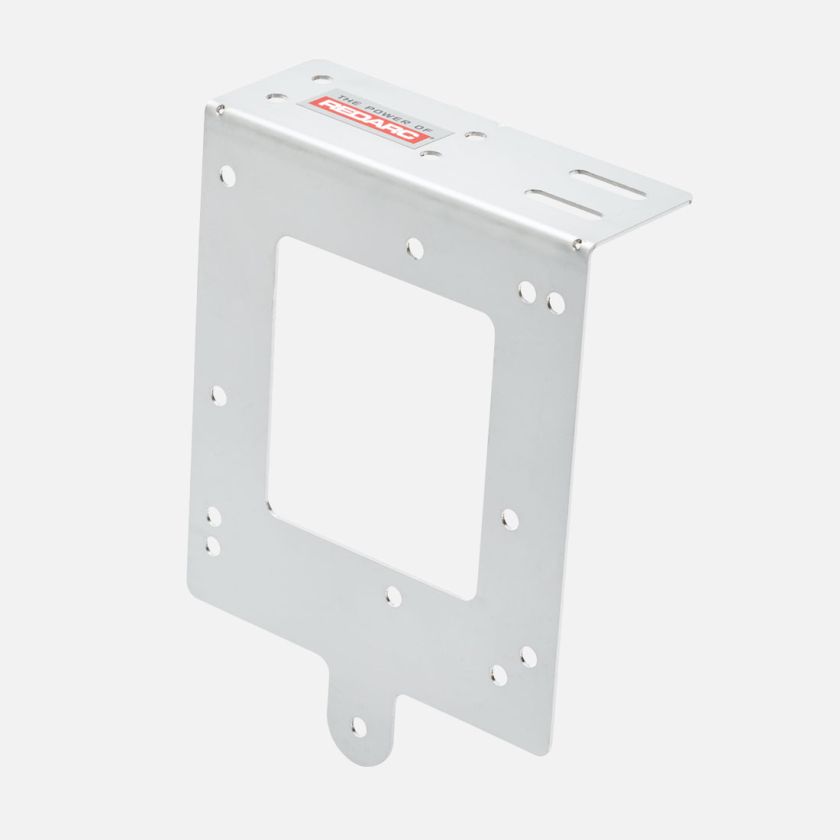

REDARC UNIVERSAL BCDC MOUNTING BRACKET

This mounting bracket is manufactured from robust 304 stainless steel and is purpose-built to fit the BCDC DC-DC charger into existing mounting points located within a vehicle's engine bay. By using this mounting bracket, you will guarantee a neat and professional installation of your REDARC dual battery charger.

Another advantage of this Mounting Bracket is that it positions the BCDC Charger at the front of the vehicle where it will receive cool airflow which results in optimal performance.

Included in this kit is everything needed for a hassle-free installation including comprehensive instructions, fasteners and mounting bracket.

All component parts of the Universal Bracket are attached to each other during manufacture and transit, so please ensure before installing the bracket you separate the components by breaking the small connecting tags between the parts. No tools are required.

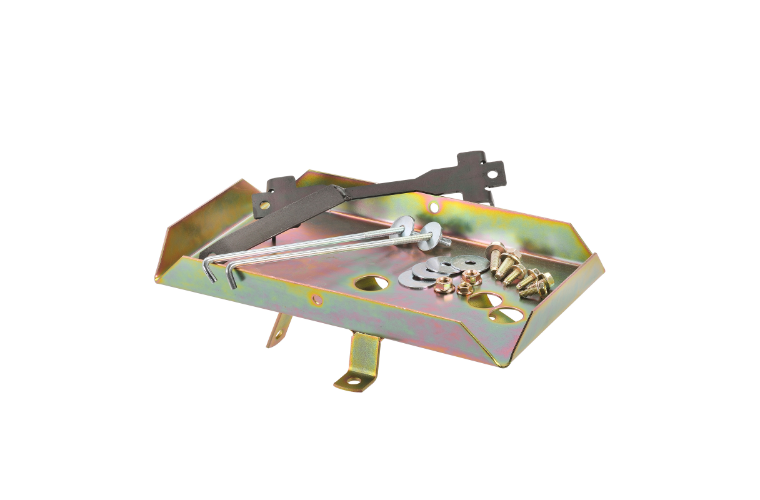

PROJECTA HEAVY-DUTY DUAL BATTERY TRAY (HDBT154)

Projecta latest heavy-duty battery trays provide the ideal solution when mounting an auxiliary battery into a vehicle engine bay. The range has been engineered to fit specific vehicle types meaning the battery trays can be installed without the inconvenience of having to modify the battery tray or parts of the vehicle.

View full details
