BMPRO
MINIBOOSTPRO 12V 30A DC-DC CHARGER + SOLAR
MINIBOOSTPRO 12V 30A DC-DC CHARGER + SOLAR
SKU:MINIBOOSTPRO
Couldn't load pickup availability
KEY FEATURES
- 30A multi-stage lithium DC-DC charger
- Dual input solar/aux up to 30A
- Multi-battery chemistry selector
- Suitable for modern smart alternators

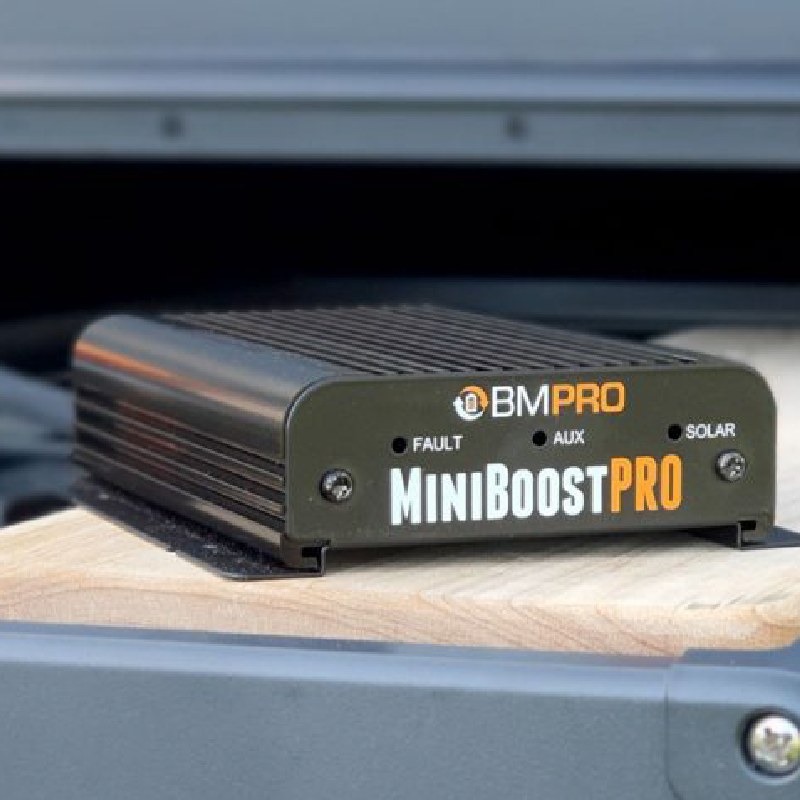

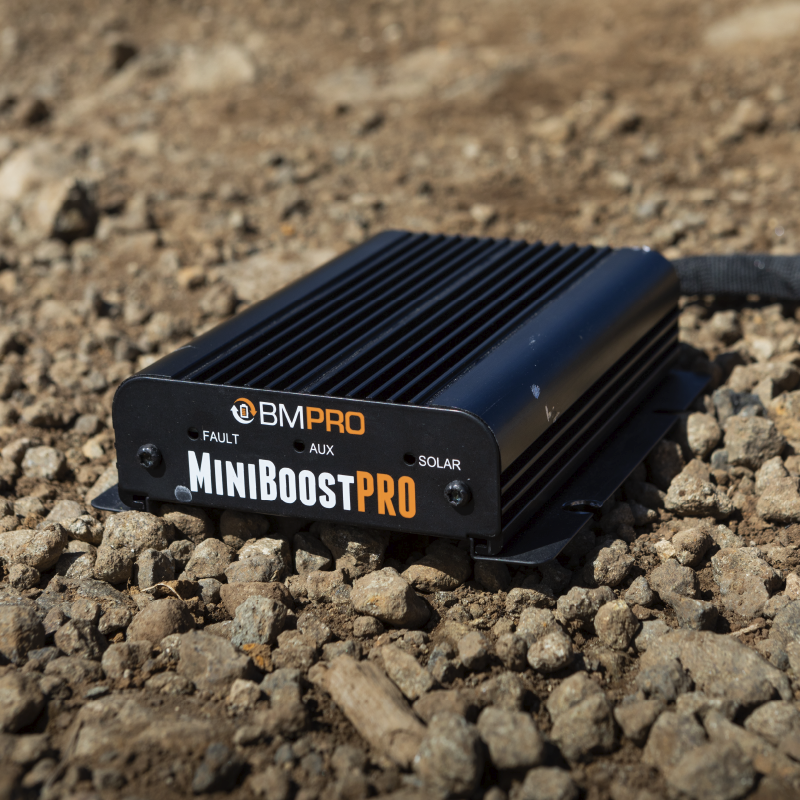

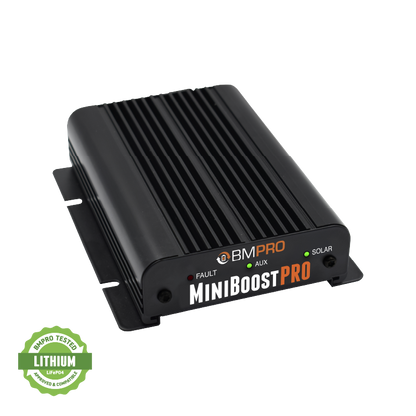

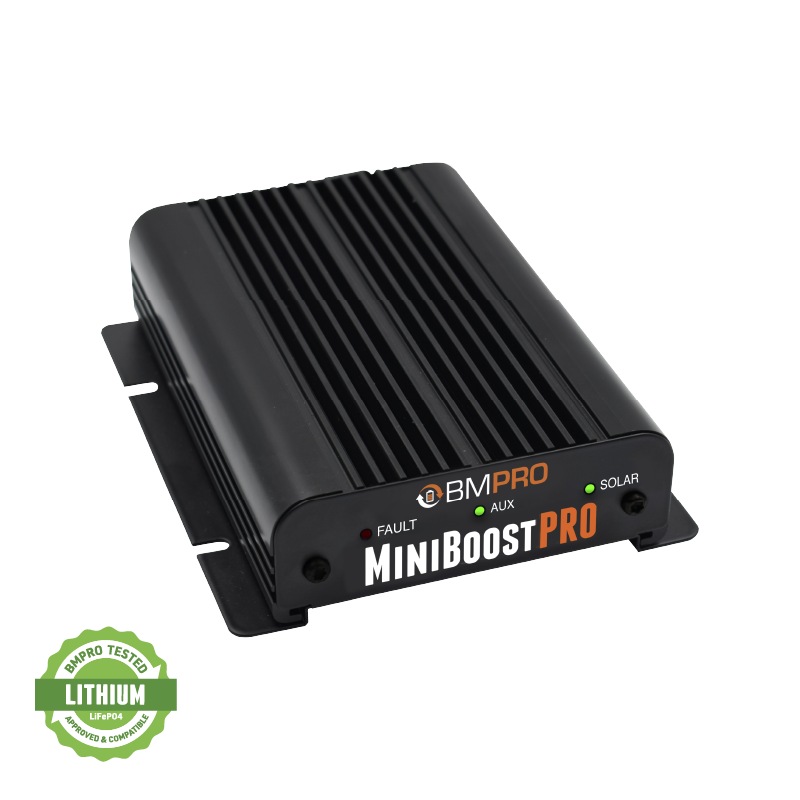

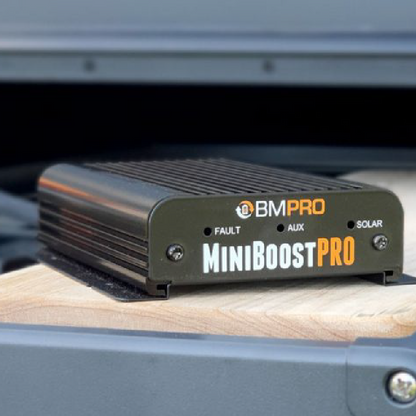

BMPRO’s MiniBoostPRO is a compact Lithium DC-DC charger with solar input, specially designed for the RV market. The MiniBoostPRO battery charger offers effective charging of your caravan, 4WD or camper trailer’s house battery from the towing vehicle’s electrical system.
Blending both solar and auxiliary inputs, the MiniBoostPRO provides a combined charging current of up to a maximum of 30A, with a preference to solar. It features proprietary technology designed to charge from modern car alternators. Moreover, it can be used with LiFePO4 batteries as well as with traditional lead acid batteries.
The MiniBoostPRO provides a multi stage charging profile.
It functions when wired directly to 12V batteries and enhances BMPRO’s BatteryPlus35 and J35 Power Management Systems.
A range of protective features built into the MiniBoostPRO will guard your caravan or camper trailer’s charging capacity.
Auxiliary Input Voltage | 9V – 14.6V DC |
Solar Input Voltage | 9V – 25V DC |
Output Voltage |
Gel: 14.2V AGM/Wet: 14.4V LiFePO4: 14.6V |
Float Voltage | 13.6V DC |
Output Current* |
Auxiliary Bypass: max. 30A Auxiliary Boost: max. 22A Solar Charging: max. 30A (360W) Blending Charging: max. 30A |
Quiescent Current Draw |
Auxiliary/Primary Battery: <25mA Secondary Battery: <18mA |
Operating Temperature | -20°C to 80°C |
Dimensions | 160mm x 131mm x 41mm |
IP Rating | IP20 |
Standards | RCM Approval, EMC CISPR 11: 2015 Class B, FCC Part 15 |
Standards | RCM Approval, EMC CISPR 11, CFR 47 FCC Part 15 |
*Output reduced at elevated temperature.
