BMPRO

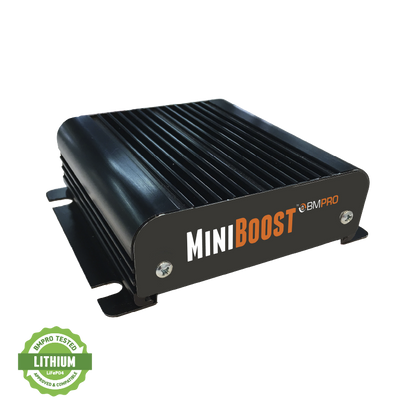

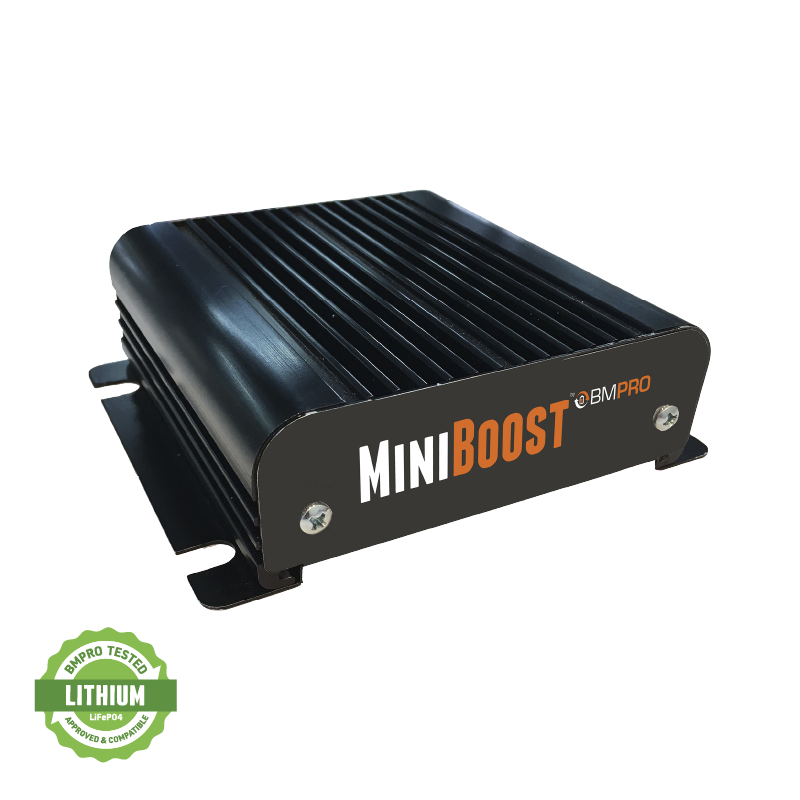

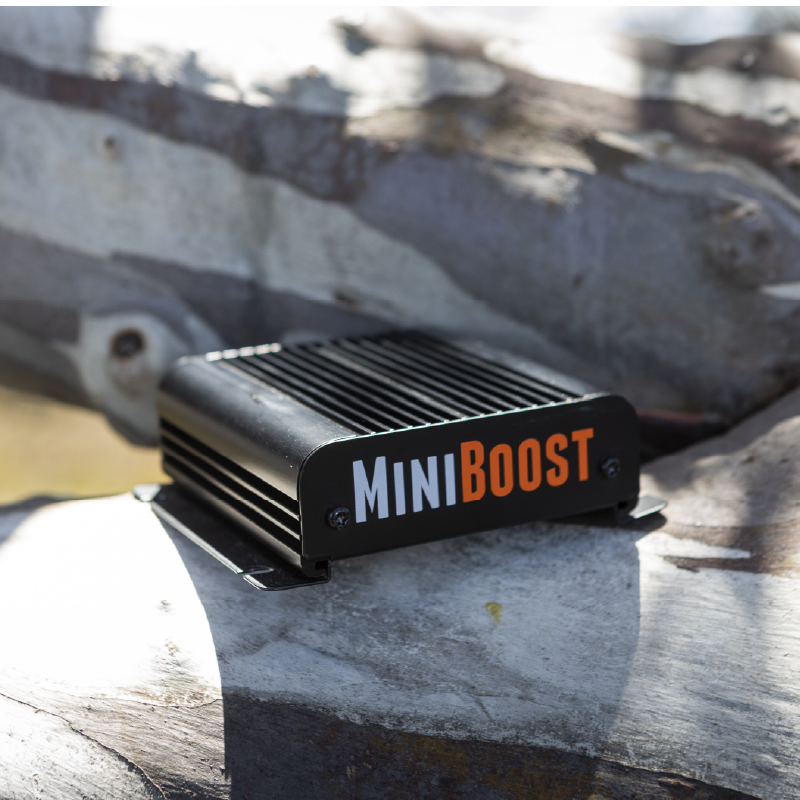

MINIBOOST 12V 20A DC-DC CHARGER

MINIBOOST 12V 20A DC-DC CHARGER

SKU:MINIBOOST

Regular price $399.00
Regular price Sale price $399.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

KEY FEATURES

  • 20A multi-stage DC-DC charger
  • Charges 12V RV battery while driving
  • Suitable for AUX/secondary battery setup
  • Multi-chemistry charging profiles
  • Simple to install
  • Voltage or smart alternator

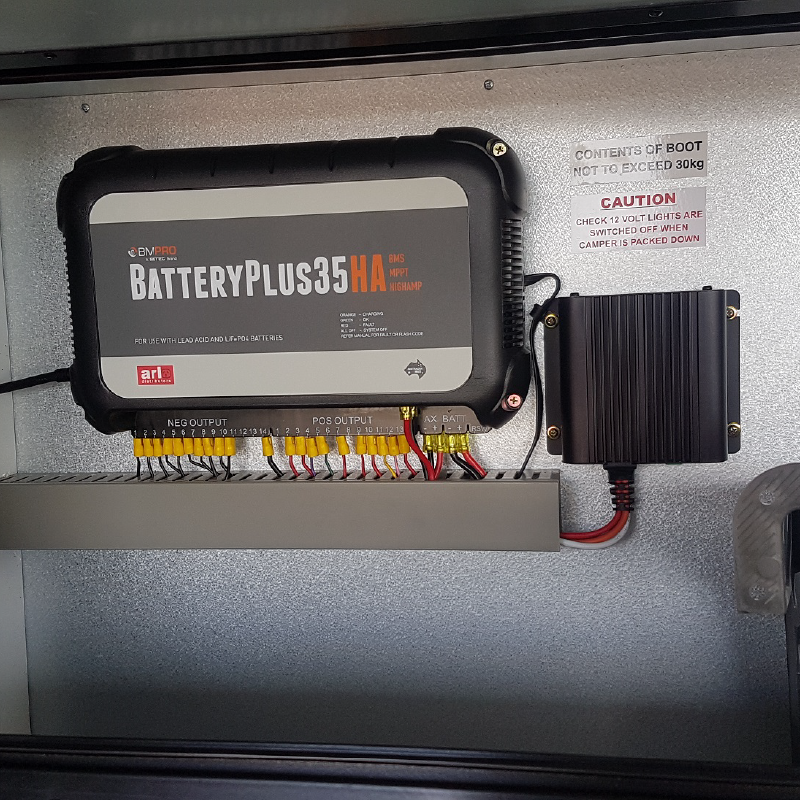

Designed for installation with BP35, J35 & ASPERO

LiFePO4 (lithium) compatible when installed with a BP35-II-HA and solar

In-vehicle 12V DC-DC charger for your RV

BMPRO’s Miniboost DC-DC charger is a critical component of complete BMPRO Power Management solutions and is capable of charging Lithium batteries in conjunction with a BP35HA, J35 or ASPERO with integrated solar capability.

MiniBoost is a compact DC-DC charger /booster for RVs. It is specially designed to work with BMPRO’s BatteryPlus35, J35 & ASPERO systems.  Charge your caravan or camper trailer’s house battery from the towing vehicle’s electrical system, even if the voltage delivered from the tow vehicle is lower than required for a recharge.

Need more power for charging whilst driving? Refer to the MiniBoostPRO 30Amp DC-DC charger. Compatible with all battery chemistries and includes the power of solar.

The MiniBoost is not a power supply and must be connected to a battery.

To get more out of your solar panels while driving, or to use the DC-DC charger with a lithium battery, refer to 30A DC-DC charger MiniBoostPRO.

Input Voltage Range 10V – 15V
Output Current Boost Mode – 20A, Bypass Mode – 30A
Output Voltage Boost Mode – 14.4V, Bypass Mode – <1V less than input voltage
Output Ripple Voltage <150mV
Output Current Protection Boost Mode – 21A (electronic), Bypass Mode – 31A (fuse)
Start Voltage 12.2V – 12.9V
Disconnect Voltage 9.1V – 10.5V
Battery Drain <20mA
Efficiency >80%
Battery Chemistry AGM, Gel, Calcium, Wet and Lithium LiFePO4*
Ambient Temperature 0°C – 50°C
Standards RCM Approval, EMC CISPR 11, CFR 47 FCC Part 15
Weight 0.8kg

*Lithium LiFePO4 support only when installed with a BP35-II-HA and solar.
