LANDCRUISER 80 DIESEL (1990-1998) REDARC UNDER BONNET DUAL BATTERY COMPLETE PACKAGE
LANDCRUISER 80 DIESEL (1990-1998) REDARC UNDER BONNET DUAL BATTERY COMPLETE PACKAGE
SKU:DBUB-LANDCRUISER80DBCDCPK
Couldn't load pickup availability
| This Package Includes: |
| 1 x DELKOR M27 MARINE & LEASURE BATTERY |
| 1 x PROJECTA HDBT102 BATTERY TRAY |
| 1 x REDARC BCDC1225D 25A DUAL BATTERY CHARGER |
| 1 x REDARC BCDCMB-002 BCDC MOUNTING BRACKET |
| 3 Meters 8MM SINGLE CORE RED CABLE |
| 3 Meters 8MM SINGLE CORE BLACK CABLE |
| 6 Meters 8MM TWINCORE CABLE |
| 2 x MIDI FUSE HOLDERS |
| 2 x 40A MIDI FUSES |
| 4 x 10-6mm CABLE LUGS |
| 4 x 10-8mm CABLE LUGS |
| 4 x 10-10mm CABLE LUGS |
| 1 x DUAL BATTERY ZIP TIE AND HEATSHRINK PACK |
Suits: Landcruiser 80 Series Diesel 1HZD / 1HDT / 1HDFT TD
Models: Auto/Manual
Years: 1990-1998
Max Battery Size (mm): L304 x W174 x H225
Max Battery Weight: 23Kg
Suits Battery: N70

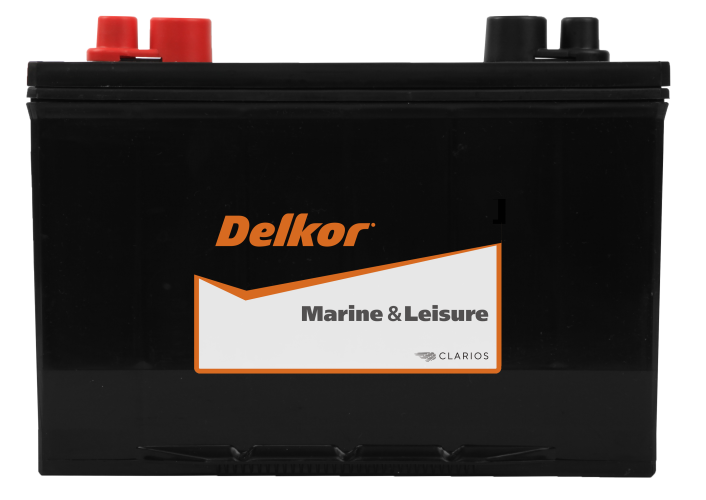

DELKOR M27 MARINE & LEISURE
Perfect for recreational vehicles and dual battery systems. Perfect for the well-deserved leisure time you've been waiting for.
Key Benefits
- Convenient maintenance-free battery, no topping up of fluid required
- Reliable electrical performance with wrought grid plates
- Added strength and vibration resistance with anchor bonding
- Increased durability with high-strength polypropylene case
- Enhanced safety with heat-sealed covers and built-in spark arrestor
- Ideal for dual-power applications
| MODEL | M27 |
| CCA | 680 |
| AH(20HR) | 97 |
| LENGTH | 305 |
| WIDTH | 172 |
| HEIGHT | 225 |
| VOLTAGE | 12v |
| GROUP SIZE | GP27 |
REDARC DC-DC 25A BATTERY CHARGER (BCDC1225D)
| BATTERY CHEMISTRY | Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only |
|---|---|
| POWER TYPE - AC DC | DC TO DC |
| NOMINAL OUTPUT POWER | 375W |
| INPUT FUSE RATING | 40A |
| SOLAR SWITCH ON VOLTAGE | 9V |
| SUITABLE FOR 12V SYSTEMS | Yes |
| SUITABLE FOR 24V SYSTEMS | Yes |
| SOLAR INPUT VOLTAGE | 9 - 32V |
| MPPT SOLAR REGULATOR | Yes |
| CABIN/ CANOPY INSTALL | Yes |
| NO LOAD CURRENT | <100mA |
| TRAILER INSTALL | Yes |
| ENGINE BAY INSTALL | Yes |
| MAX. CHARGING VOLTAGE | 15.3V |
| OUTPUT FUSE RATING | 40 |
| OPERATING TEMPERATURE | -15°C to 80°C |
| OUTPUT VOLTAGE | 12V DC |
| MAX. RATED OUTPUT CURRENT | 25A |
| INPUT VOLTAGE | 9 - 32V |
| STANDBY CURRENT | <8mA |
| CONNECTOR TYPE | Bare wire |
| WEIGHT | 1 kg |
| WIDTH | 120 mm |
| HEIGHT | 37 mm |
| DEPTH | LENGTH | 165 mm |
REDARC BCDC MOUNTING BRACKET (BCDCMB-007)
The BCDCMB-007 is a Universal Mounting Bracket allowing a REDARC BCDC In-vehicle battery charger to be mounted in a vehicle’s engine bay when a model-specific mounting bracket is not available.
PROJECTA HEAVY-DUTY DUAL BATTERY TRAY (HDBT102)
Projecta latest heavy-duty battery trays provide the ideal solution when mounting an auxiliary battery into a vehicle engine bay. The range has been engineered to fit specific vehicle types meaning the battery trays can be installed without the inconvenience of having to modify the battery tray or parts of the vehicle.
