LANDCRUISER 70 4.5L V8 TURBO DIESEL (2007-SEP 2016) REDARC UNDER BONNET DUAL BATTERY COMPLETE PACKAGE
LANDCRUISER 70 4.5L V8 TURBO DIESEL (2007-SEP 2016) REDARC UNDER BONNET DUAL BATTERY COMPLETE PACKAGE
SKU:DBUB-LANDCRUISER704.5LTDBCDCPK
Couldn't load pickup availability

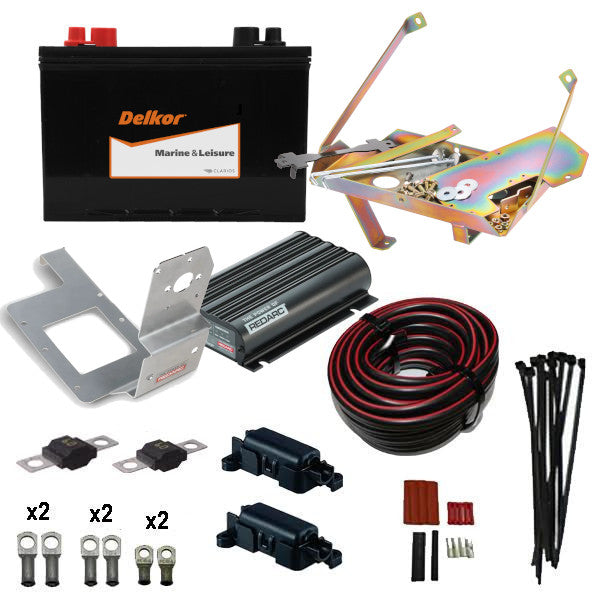

| This Package Includes: |
| 1 x DELKOR M27 MARINE & LEASURE BATTERY |
| 1 x PROJECTA HDBT100 BATTERY TRAY |
| 1 x REDARC BCDC1225D 25A DUAL BATTERY CHARGER |
| 1 x REDARC BCDCMB-002 BCDC MOUNTING BRACKET |
| 3 Meters 8MM SINGLE CORE RED CABLE |
| 3 Meters 8MM SINGLE CORE BLACK CABLE |
| 6 Meters 8MM TWINCORE CABLE |
| 2 x MIDI FUSE HOLDERS |
| 2 x 50A MIDI FUSES |
| 4 x 10-6mm CABLE LUGS |
| 4 x 10-8mm CABLE LUGS |
| 4 x 10-10mm CABLE LUGS |
| 1 x DUAL BATTERY ZIP TIE AND HEATSHRINK PACK |
Suits: Landcruiser 70 Series 1VD-FTV, 4.5 Litre V8 Turbo Diesel (ABS) Wagon/Ute
Models: Manual
Years: 2007–September 2016
Location: Engine Bay
Max Battery Size (mm): L300 x W175 x H220
Max Battery Weight: 24Kg
Suits Battery: N70
DELKOR M27 MARINE & LEISURE
Perfect for recreational vehicles and dual battery systems. Perfect for the well-deserved leisure time you've been waiting for.
Key Benefits
- Convenient maintenance-free battery, no topping up of fluid required
- Reliable electrical performance with wrought grid plates
- Added strength and vibration resistance with anchor bonding
- Increased durability with high-strength polypropylene case
- Enhanced safety with heat-sealed covers and built-in spark arrestor
- Ideal for dual-power applications
| MODEL | M27 |
| CCA | 680 |
| AH(20HR) | 97 |
| LENGTH | 305 |
| WIDTH | 172 |
| HEIGHT | 225 |
| VOLTAGE | 12v |
| GROUP SIZE | GP27 |
REDARC DC-DC 25A BATTERY CHARGER (BCDC1225D)
| BATTERY CHEMISTRY | Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only |
|---|---|
| POWER TYPE - AC DC | DC TO DC |
| NOMINAL OUTPUT POWER | 375W |
| INPUT FUSE RATING | 40A |
| SOLAR SWITCH ON VOLTAGE | 9V |
| SUITABLE FOR 12V SYSTEMS | Yes |
| SUITABLE FOR 24V SYSTEMS | Yes |
| SOLAR INPUT VOLTAGE | 9 - 32V |
| MPPT SOLAR REGULATOR | Yes |
| CABIN/ CANOPY INSTALL | Yes |
| NO LOAD CURRENT | <100mA |
| TRAILER INSTALL | Yes |
| ENGINE BAY INSTALL | Yes |
| MAX. CHARGING VOLTAGE | 15.3V |
| OUTPUT FUSE RATING | 40 |
| OPERATING TEMPERATURE | -15°C to 80°C |
| OUTPUT VOLTAGE | 12V DC |
| MAX. RATED OUTPUT CURRENT | 25A |
| INPUT VOLTAGE | 9 - 32V |
| STANDBY CURRENT | <8mA |
| CONNECTOR TYPE | Bare wire |
| WEIGHT | 1 kg |
| WIDTH | 120 mm |
| HEIGHT | 37 mm |
| DEPTH | LENGTH | 165 mm |

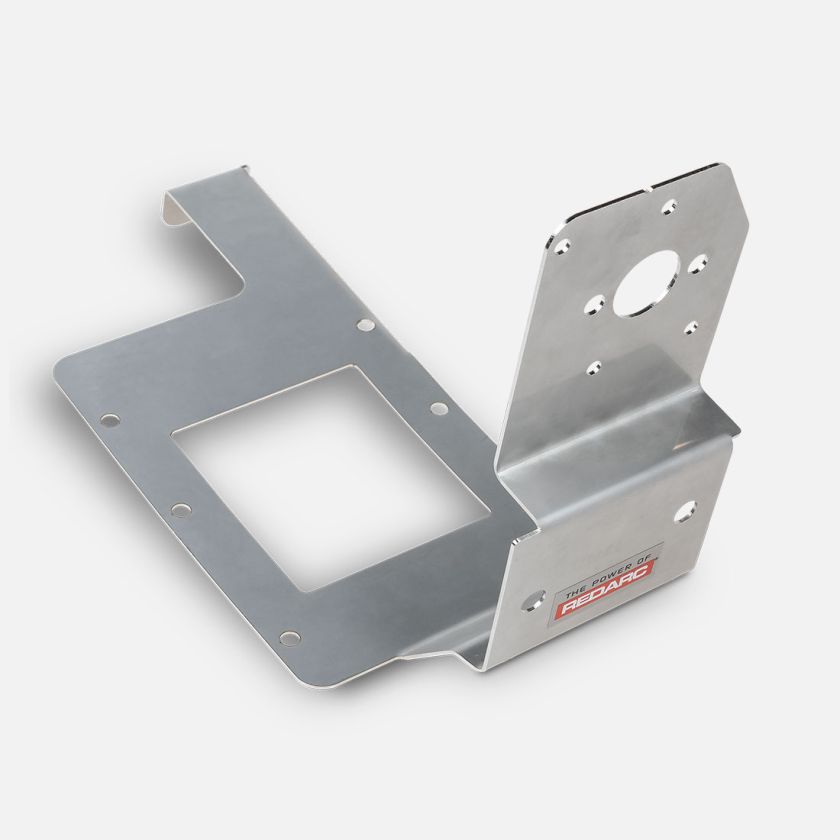

REDARC BCDC MOUNTING BRACKET (BCDCMB-002)

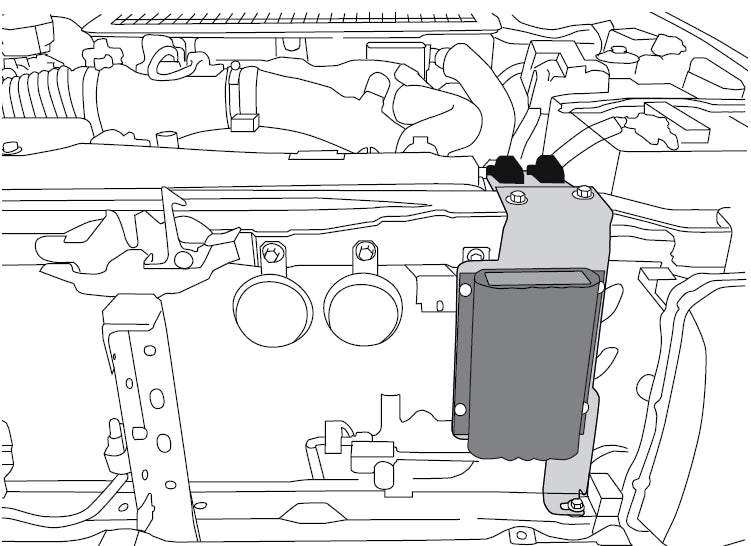

The REDARC BCDCMB-002 is a Mounting Bracket for REDARC’s BCDC DC-DC charger range, it is designed for installations of REDARC’s dc to dc chargers into engine bays of the Toyota 70 series Landcruiser built from March 2007 onwards.
This bracket is designed to be used with REDARC’s range of BCDC In-vehicle charger's, constructed from sturdy 304 stainless steel and will fit in the existing mounting points found in the Toyota 70 series vehicle’s engine bay.
This bracket allows installation into the front of the vehicle allowing for cooler airflow, away from high-temperature areas and ensuring optimal performance.
Included in this kit is the mounting bracket, fasteners and instructions to complete its installation.

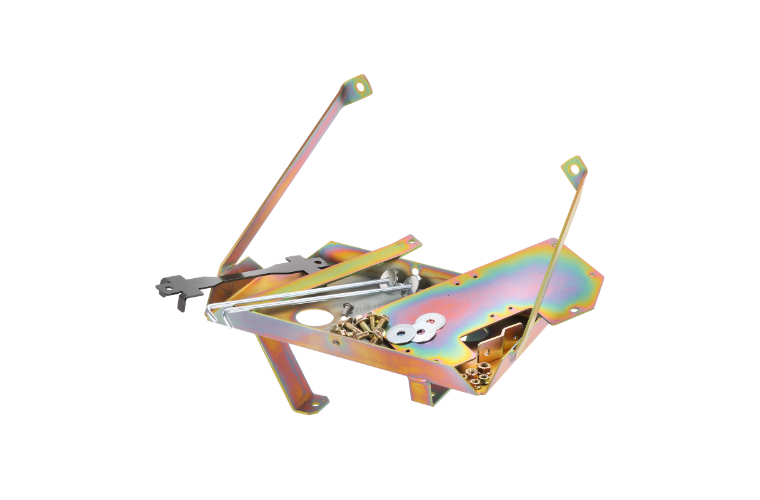

PROJECTA HEAVY-DUTY DUAL BATTERY TRAY (HDBT100)
Projecta latest heavy-duty battery trays provide the ideal solution when mounting an auxiliary battery into a vehicle engine bay. The range has been engineered to fit specific vehicle types meaning the battery trays can be installed without the inconvenience of having to modify the battery tray or parts of the vehicle.
