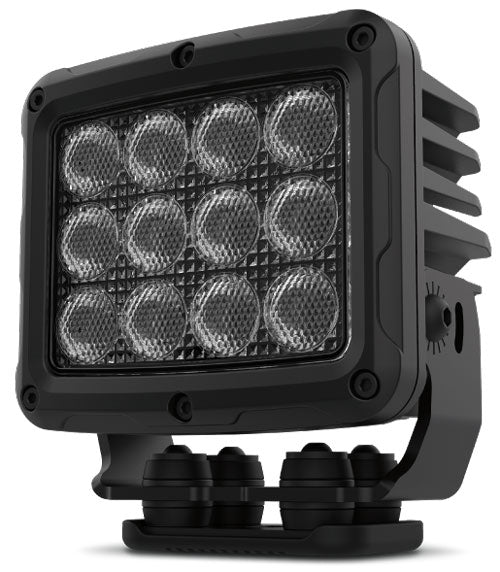

51 SERIES HEAVY DUTY 149W LED FLOOD BEAM WORK LIGHT

ROADVISION’s RWL51 Series Flood LED Heavy Duty work lamps are the some of the most powerful work lamps in our line up reaching up to a maximum 12000lm. The RWL51 Series are equipped with thermal management technology – smart adjusting to the environmental temperature to balance optimal performance and overheating prevention. Featuring a new look and anti-vibration bracket these heavy duty work lamps are water and dust proof to IP67, providing worry free operation in the toughest conditions.

• RWL51 Series LED work lamps produce up to 12000lm of instant light output
• 36 x 5W Osram LED’s, each reflector feature 3 x 5W Osram LED’s
• Anti-vibration bracket
• Multi-volt 10-30V DC input
• 50,000 hour LED lifespan with solid state technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP67 rated
• Simple 2 wire installation
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved.

	MULTI-VOLT 10-30 VDC
	POLYCARB LENS
	COLOUR TEMP
	WATER & DUST PROOF
	OVER/UNDER VOLTAGE PROTECTION
	DEUTSCH CONNECTOR
	REVERSE POLARITY PROTECTION
	OSRAM LEDS
	RADIO INTERFERENCE APPROVED
	7 YEAR WARRANTY

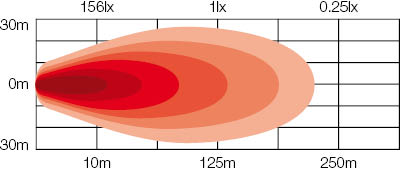

BEAM PATTERN

Part Number	RWL5180F
Description	Work Lamp LED 149W Square Heavy Duty Mount
Beam Pattern	Flood Beam
Maximum Lumens	12000lm
Maximum Watts	149W
Number of LED's	36 X 5W Osram LED's
Maximum Lux @10m	156 Lux
Lens Construction	Polycarbonate
Housing Construction	Aluminium
Input Voltage	10-30V
Current Draw Amps	12.4A @ 13.8V DC
Wiring	Integrated Deutsch Connector

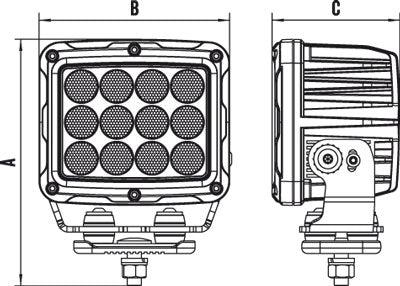

Dimensions AxBxC	155x135x91mm
