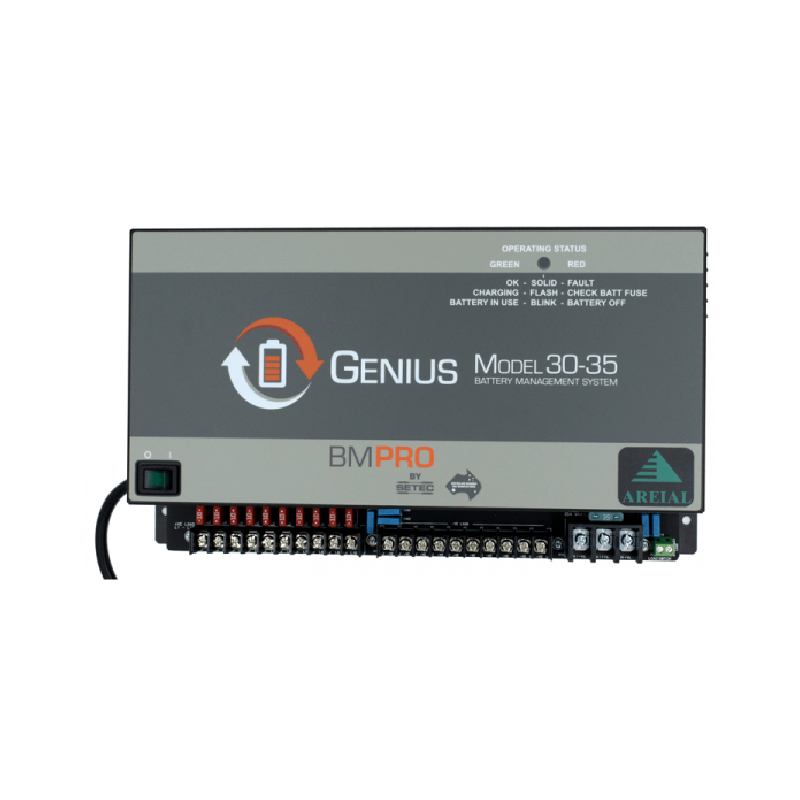

GENIUS 30-35 RV POWER SUPPLY

GENIUS 30-35 RV POWER SUPPLY

SKU:GENIUS11HA

Regular price $799.00
Regular price Sale price $799.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

KEY FEATURES

  • Suitable for high-amperage applications
  • Various charge modes
  • Battery protection features include – reverse, current limit, over-voltage, voltage current limit and fuse protection
  • Compatible with all lead acid-type batteries
  • Distribution board
  • Auxiliary input

FASTER CHARGE OF MULTIPLE DEEP CYCLE BATTERIES

The Genius is an RV power supply providing the following features/functions:

  • AC input (240V nominal)
  • DC input (13.6V nominal)
  • Smart Battery Charger (Lead Acid)
  • Load LVD switch
  • Remote Load Isolating Switch Input
  • DC distribution for 10 loads with fuse protection (Terminal Block)
  • Temperature controlled fan

Designed and manufactured in Australia, the slim and sturdy Genius 30-35 chargers multiple deep cycle batteries faster.

To ensure that batteries are optimally charged and ready to use, the Genius has enhanced management capabilities such as boost charge, float charge, store charge and trickle charge modes. To ensure problem free charging, this device can also accept charge through an optional DC input.

The Genius has a range of battery protection features. They include reverse battery protection, battery current limit, over voltage protection, voltage current limit and fuse protection. The low voltage disconnect facility protects the battery against excessive draw. This device also hosts a thermally controlled fan to make sure that noise levels are kept to a minimum.

Input Voltage Range

240V AC ± 10% (nominal), 50-60Hz

Input Surge

<40A (cold start)

Holdup Time

<10ms

Output Current

35A continuous (load + battery current)

Factory Set Voltage

13.65V ± 0.1V (float voltage)

Load Regulation

<2%

Output Ripple Voltage

<150mV

Overvoltage Protection

<17V

Overcurrent Protection

35A – 38A (load + battery current)

Battery Current Limit

30A ± 3A

Battery Connect

11.5 ± 0.2V

Disconnect

10.0 ± 0.2V

Battery Drain

<3mA

Efficiency

>84%

Cooling Fan

Thermally-controlled

Ambient Temperature

0°C to 50°C

Weight

3.7kg
