BMPRO

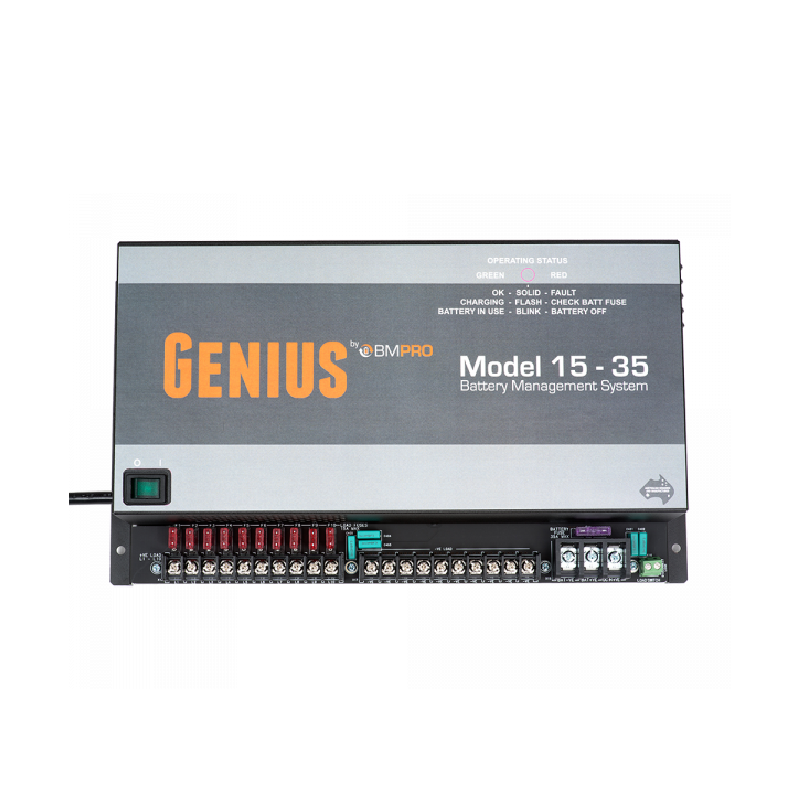

GENIUS 15-35 CARAVAN POWER SUPPLY

GENIUS 15-35 CARAVAN POWER SUPPLY

SKU:GENIUS11A

Regular price $699.00
Regular price Sale price $699.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

KEY FEATURES

  • Various charge modes
  • Battery protection features include – reverse, current limit, over-voltage, voltage current limit and fuse protection
  • Compatible with all lead acid-type batteries
  • Distribution board
  • Auxiliary input

Charge and Maintain Deep Cycle Batteries

The Genius is a revolutionary caravan Power Management System, offering complete power solution for RV applications. Designed and manufactured in Australia, the slim and sturdy Genius is fully equipped to charge the current generation of deep cycle batteries.

To ensure that batteries are optimally charged and ready to use, the Genius has enhanced management capabilities such as boost charge, float charge, store charge and trickle charge modes. To ensure problem free charging, this device can also accept charge through an optional DC input.

The Genius has a range of battery protection features. They include reverse battery protection, battery current limit, over voltage protection, voltage current limit and fuse protection. The low voltage disconnect facility protects the battery against excessive draw. This device also hosts a thermally controlled fan to make sure that noise levels are kept to a minimum.

Input Voltage Range

240V AC ± 10% (nominal), 50-60Hz

Input Surge

<40A (cold start)

Holdup Time

<10ms

Output Current

35A continuous (load + battery current)

Factory Set Voltage

13.65V ± 0.1V (float voltage)

Load Regulation

<2%

Output Ripple Voltage

<150mV

Overvoltage Protection

<17V

Overcurrent Protection

35A – 38A (load + battery current)

Battery Current Limit

15A ± 3A

Battery Connect

11.5 ± 0.2V

Disconnect

10.0 ± 0.2V

Battery Drain

<3mA

Efficiency

>84%

Cooling Fan

Thermally-controlled

Ambient Temperature

0°C to 50°C

Weight

3.7kg
