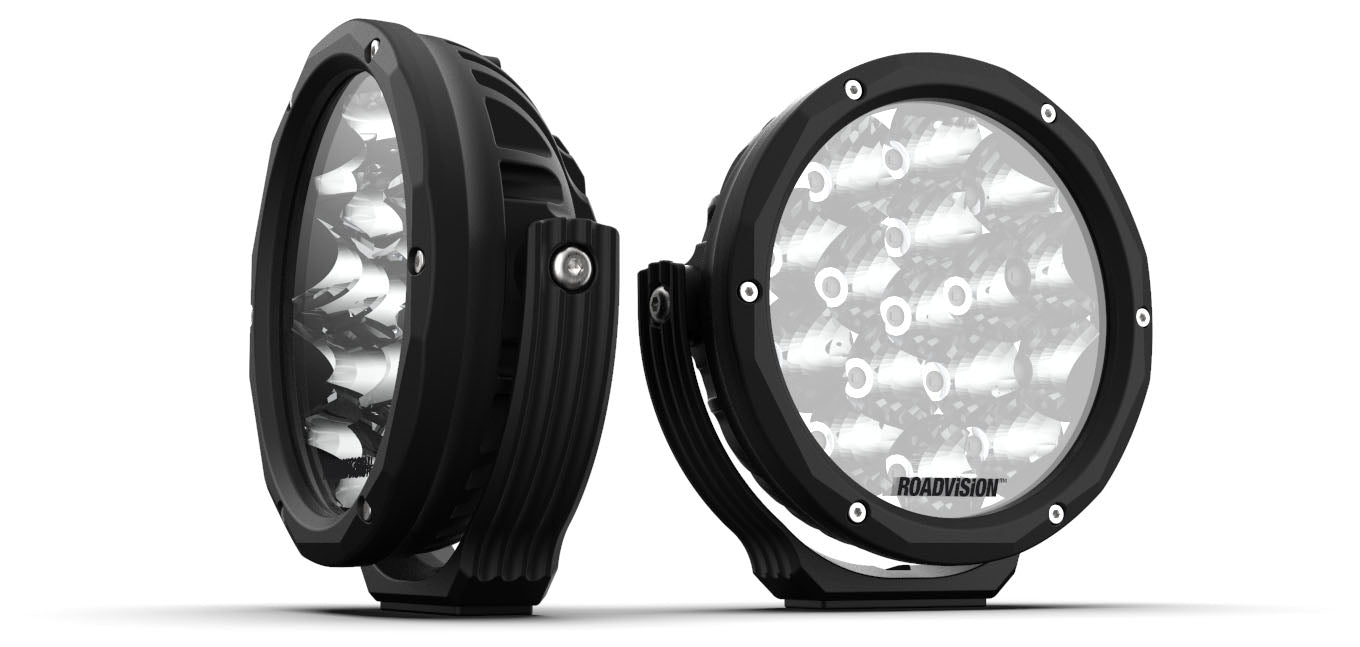

DOMINATOR SLIM LINE SERIES DRIVING LIGHTS (PAIR)

The Dominator Slim Line Series by Roadvision lives up to its name, with exceptional lighting performance, in a compact yet rugged package. Producing 4320lm of instant light output from 16 premium 3W Osram LED’s, packaged in a tough yet light weight die-cast aluminium housing & polycarbonate lens, the Dominator Series provide superior performance and durability. Perfect for smaller SUV’s and passenger vehicles, the 7” slim line design allows installation into even the tightest applications without compromising on lighting performance.

• Dominator Slim Line Series driving lamps produce 4320lm of instant light output
• Super slim line housing 70mm deep
• Advanced optics produces 1045m driving beam
• 16 x 3W Osram LED’s produce super white light close to daylight
• Multi-volt 9-32V DC input
• Super low current draw of 3.9A
• 50,000 hour LED lifespan with solid state technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP67 rated
• Simple 2 wire installation with Deutsch plug
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

	MULTI-VOLT 9-32 VDC
	POLYCARB LENS
	COLOUR TEMP
	WATER & DUST PROOF
	OVER/UNDER VOLTAGE PROTECTION
	DEUTSCH CONNECTOR
	REVERSE POLARITY PROTECTION
	3W OSRAM HI-LUX LEDS
	RADIO INTERFERENCE APPROVED
	7 YEAR WARRANTY

Part Number	RDL27D
Description	SL Series 7” Round 16 LED
Beam Type	Spot Beam
Lumens Light Output (Effective)	4320lm
Beam Distance	1045m
Total Watts	48W
Light Source	16x3W Osram Hi-Lux LED’s
Voltage Input	9-32V DC
Current Draw Amps	3.90 Amps

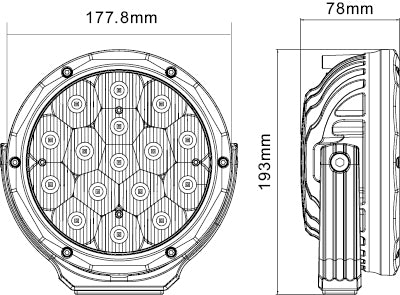

Dimensions	178x193x78mm
Lamp Diameter	7” (178mm)
Wiring	2 Pin Deutsch Plug
Beam Pattern Type	Spot

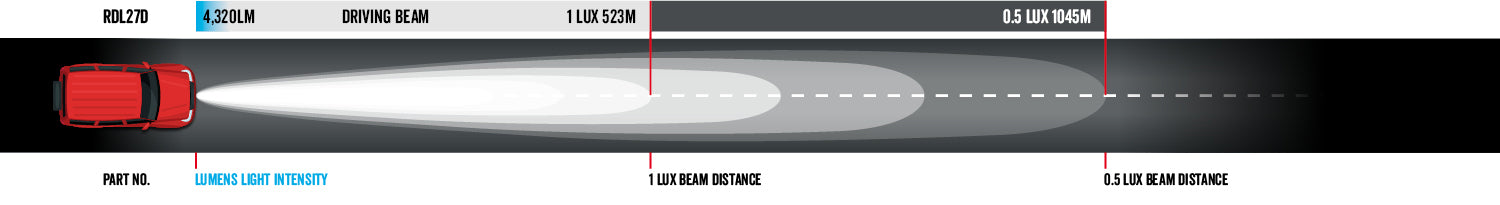

Lux @ 10m	2730 Lux
Meters @ 1 Lux	522m
Meters @ 0.5 Lux	1045m
