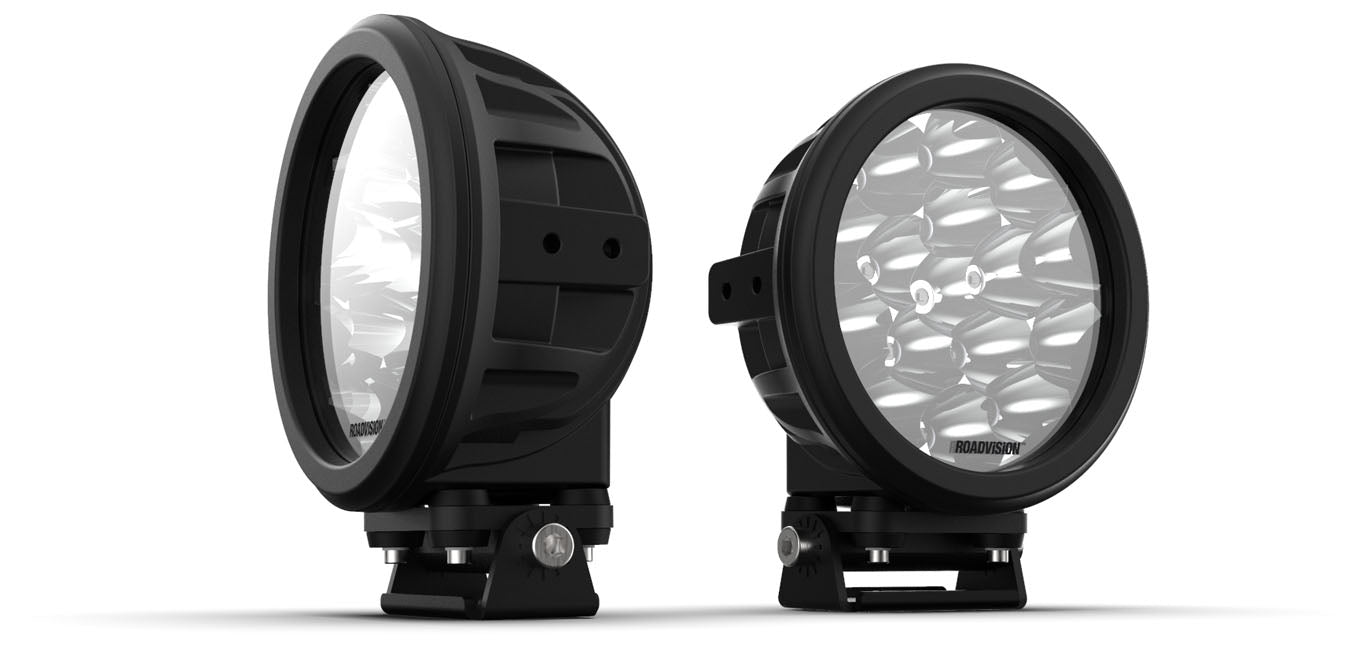

DOMINATOR 37 SERIES DRIVING LIGHTS (PAIR)

Producing a massive 6400lm of instant super white light output, the Dominator Series by Roadvision delivers a spot beam that reaches a whopping 936m, using 16 x 5W Cree LED’s and  advanced optical technology. Not only do they outperform, they outlast. Constructed with heavy duty die cast aluminium housings, an impact resistant polycarbonate lens and vibration resistant mounting, the Dominator Series are built for everything extreme.

• Dominator Series driving lamps produce 6400m of instant light output
• Available in spot or driving beams
• Advanced optics produces 936m spot beam
• 16 x 5W Cree LED’s produce super white light close to daylight
• Multi-volt 9-32V DC input
• Super low current draw of 5.4A
• 50,000 hour LED lifespan with solid state technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP67 rated
• Simple 2 wire installation with Deutsch plug
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

	MULTI-VOLT 9-32 VDC
	POLYCARB LENS
	COLOUR TEMP
	WATER & DUST PROOF
	OVER/UNDER VOLTAGE PROTECTION
	DEUTSCH CONNECTOR
	REVERSE POLARITY PROTECTION
	5W CREE LEDS
	RADIO INTERFERENCE APPROVED
	5 YEAR WARRANTY

Part Number	RDL37S	RDL37D
Description	37 Series 7” Round 16 LED Spot	37 Series 7” Round 16 LED Driving
Beam Type	Spot Beam	Driving Beam
Lumens Light Output (Effective)	6400lm	6400lm

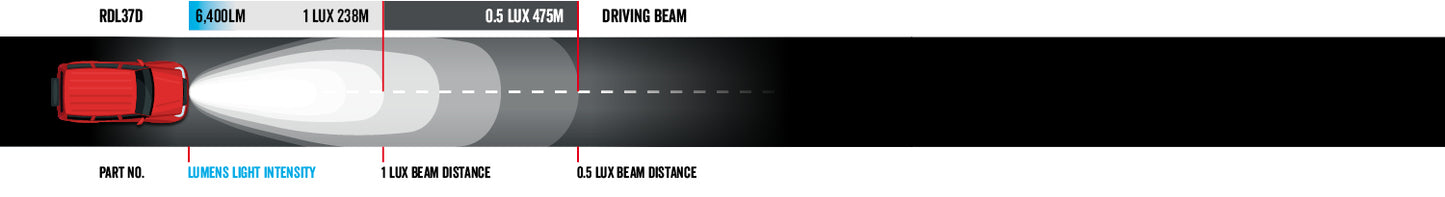

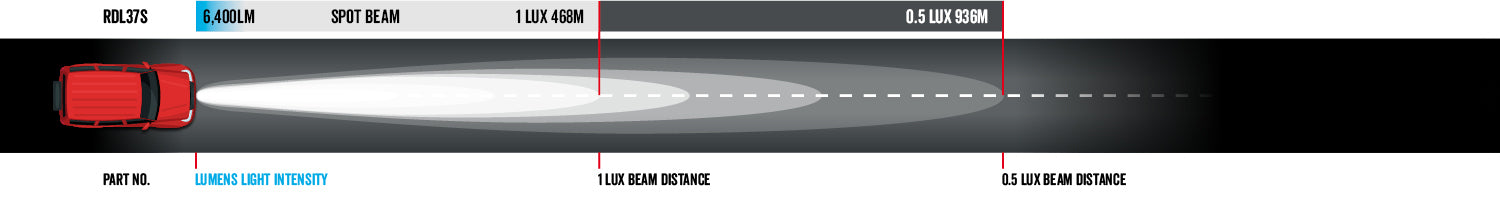

Beam Distance	936m	475m
Total Watts	80W	80W
Light Source	16x5 Watt Cree LED’s	16x5 Watt Cree LED’s
Voltage Input	9-32V DC	9-32V DC
Current Draw Amps	5.4A @ 13.8V	5.4A @ 13.8V

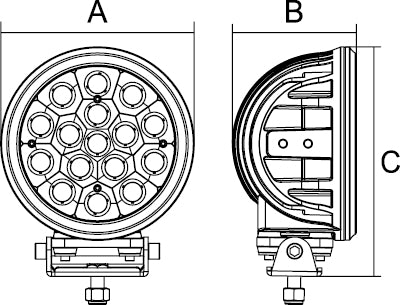

Dimensions AxBxC	179x114x212mm	179x114x212mm
Lamp Diameter	7” (179mm)	7” (179mm)
Wiring	2 Pin Deutsch Plug	2 Pin Deutsch Plug
Beam Pattern Type	Spot	Driving
Lux @ 10m	2190 Lux	565 Lux
Meters @ 1 Lux	468m	234m
Meters @ 0.5 Lux	936m	475m
