DC2 SERIES LIGHT BARS

The Roadvision DC² Series are the next generation in dual row LED light bars. Producing up to a massive 25920lm of light output, the DC² Series deliver brute power and intense light output with a perfect match of advanced optical design and 3W Osram Hi-Lux LEDs. Featuring the latest soft start, PWM dimming and advanced thermal management technology from Roadvision, the DC² Series is available in combination beam patterns from 8” to 50” providing a perfect mix of forward penetration and roadside illumination. Supplied with both low profile adjustable slide mounts and Roadvision’s new 9 position adjustable anti-vibration mounting system, the DC² Series also features a new ultra slim 65mm deep housing providing greater mounting flexibility. The DC² Series by Roadvision, brute power from the biggest bars in our line-up.

• DC² Series dual row LED bar lamps produce up to 25920lm of instant light output

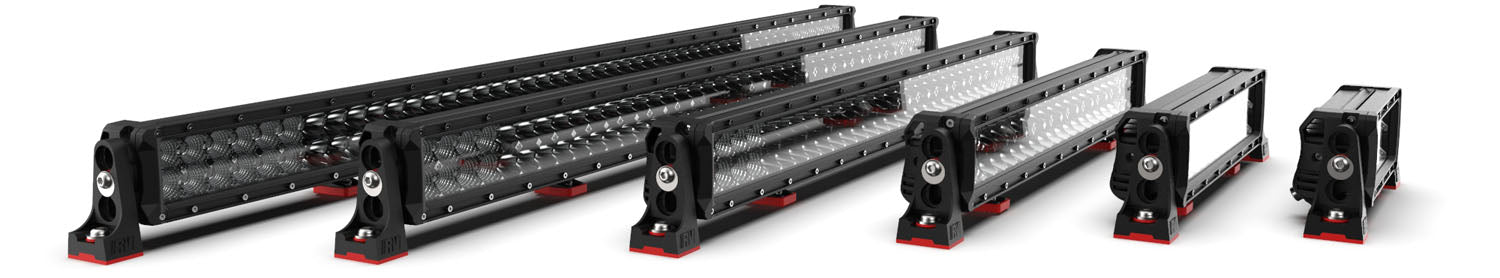

• Available in 8” to 50” models
• 3W Osram Hi-Lux LED’s produce super white light close to daylight
• Multi-volt 10-30V DC input & super low current draw
• 50,000 hour LED lifespan with solid state technology
• Soft start, PWM dimmable & advanced thermal management technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP67 rated
• Simple 2 wire installation with Deutsch/ATP plug & optional plug & play dimming controller

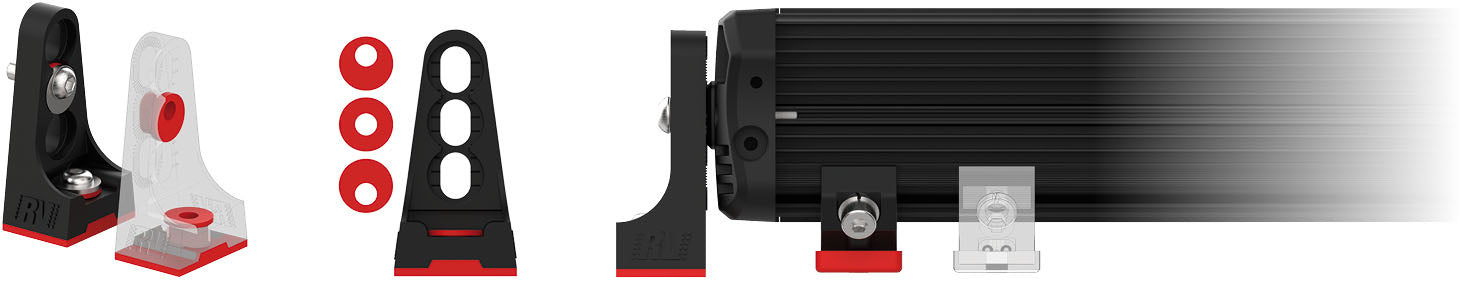

• 9 position adjustable anti-vibration end mount system & low profile slide mounts
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

	MULTI-VOLT 10-30 VDC
	POLYCARB LENS
	COLOUR TEMP
	WATER & DUST PROOF
	OVER/UNDER VOLTAGE PROTECTION
	DEUTSCH/ATP CONNECTOR
	REVERSE POLARITY PROTECTION
	3W OSRAM HI-LUX LEDS
	RADIO INTERFERENCE APPROVED
	ADJUSTABLE DUAL MOUNTS
	7 YEAR WARRANTY

Part Number	RBL5080C	RBL5140C	RBL5220C	RBL5320C	RBL5420C	RBL5500C
Description	8" Bar 12 LED	14" Bar 24 LED	22" Bar 40 LED	32" Bar 60 LED	42" Bar  80 LED	50" Bar 120 LED
Beam Type	Combo Beam	Combo Beam	Combo Beam	Combo Beam	Combo Beam	Combo Beam
Lumens Light Output (Effective)	3240lm	6480lm	10800lm	16200lm	21600lm	25920lm
Beam Distance	382m	624m	787m	891m	1031m	1089m
Total Watts	36W	72W	120W	180W	240W	288W
Light Source	12x3 Watt Osram LED's	24x3 Watt Osram LED's	40x3 Watt Osram LED's	60x3 Watt Osram LED's	80x3 Watt Osram LED's	120x3 Watt Osram LED's
Voltage Input	10-30V DC	10-30V DC	10-30V DC	10-30V DC	10-30V DC	10-30V DC
Current Draw Amps	1.8A @ 13.8V	3.5A @ 13.8V	6.7A @ 13.8V	10.0A @ 13.8V	13.3A @ 13.8V	14.1A @ 13.8V

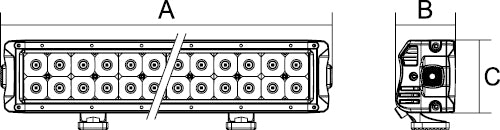

Dimensions AxBxC	206 x 65 x 78.5mm	358 x 65 x 78.5mm	563 x 65 x 78.5mm	818 x 65 x 78.5mm	1073 x 65 x 78.5mm	1273 x 65 x 78.5mm
Bar Length	8" (206mm)	14" (358mm)	22" (563mm)	32" (818mm)	42" (1073mm)	50" (1273mm)
Wiring	2 Pin Deutsch Plug	2 Pin Deutsch Plug	2 Pin Deutsch Plug	2 Pin ATP Plug	2 Pin ATP Plug	2 Pin ATP Plug

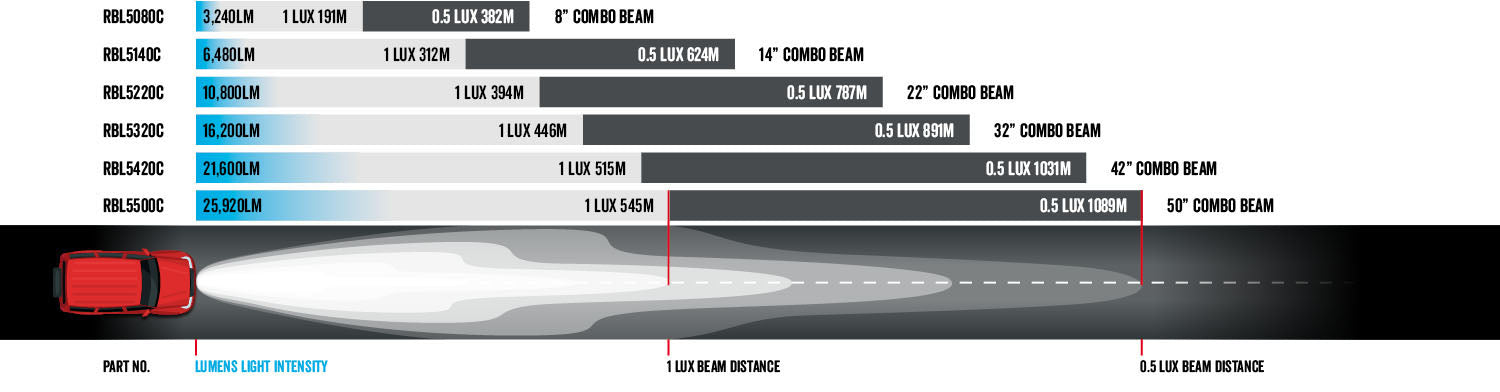

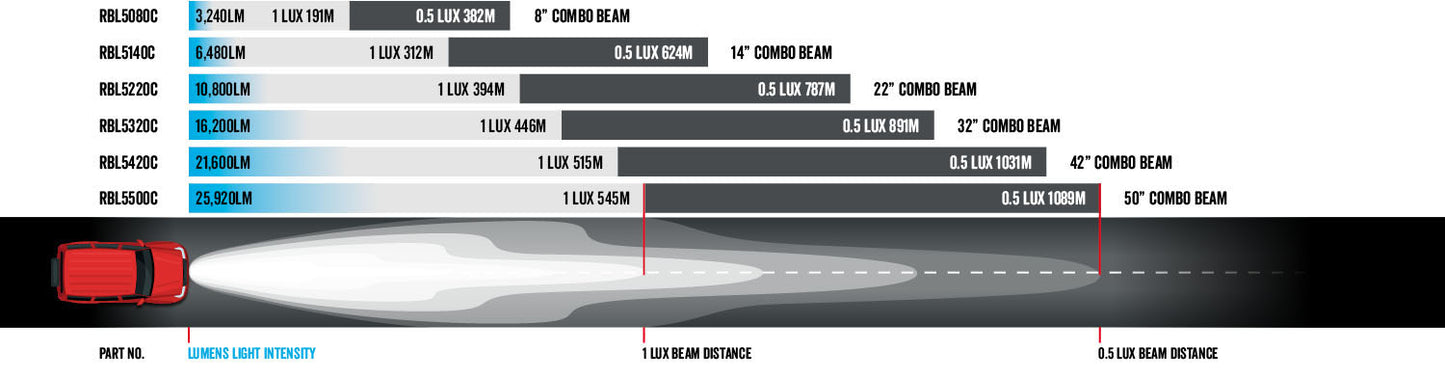

Lux @ 10m	365 Lux	974 Lux	1549 Lux	1986 Lux	2656 Lux	2966 Lux
Meters @ 1 Lux	191m	312m	394m	446m	515m	545m
Meters @ 0.5 Lux	382m	624m	787m	891m	1031m	1089m
