REDARC
BCDC CLASSIC UNDER BONNET 25A DC BATTERY CHARGER
BCDC CLASSIC UNDER BONNET 25A DC BATTERY CHARGER
SKU:BCDC1225D
Regular price
$485.00
Regular price
Sale price
$485.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

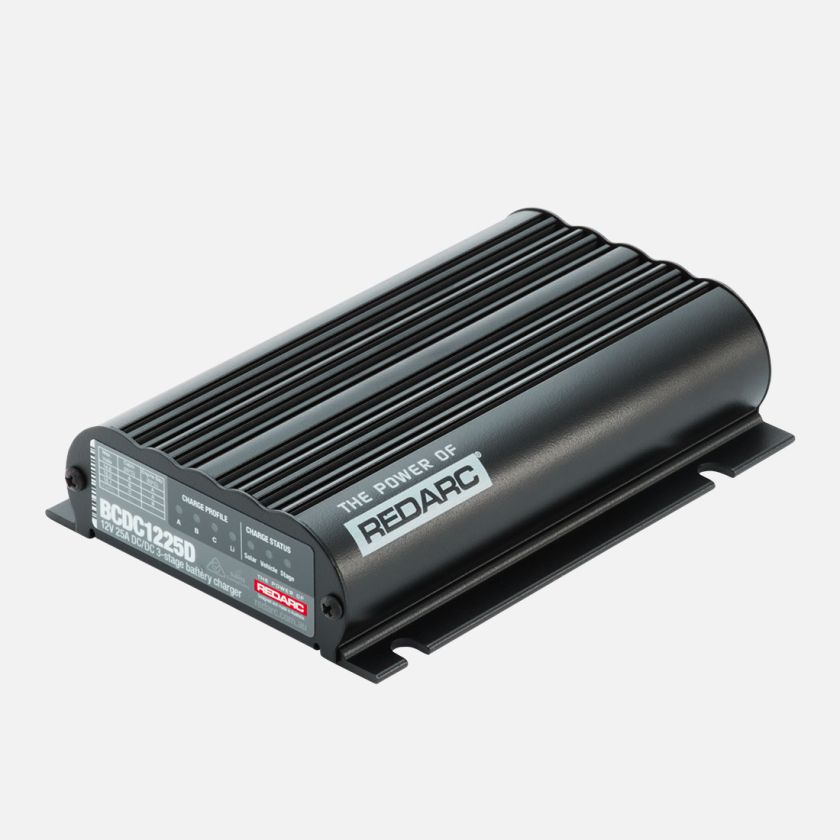

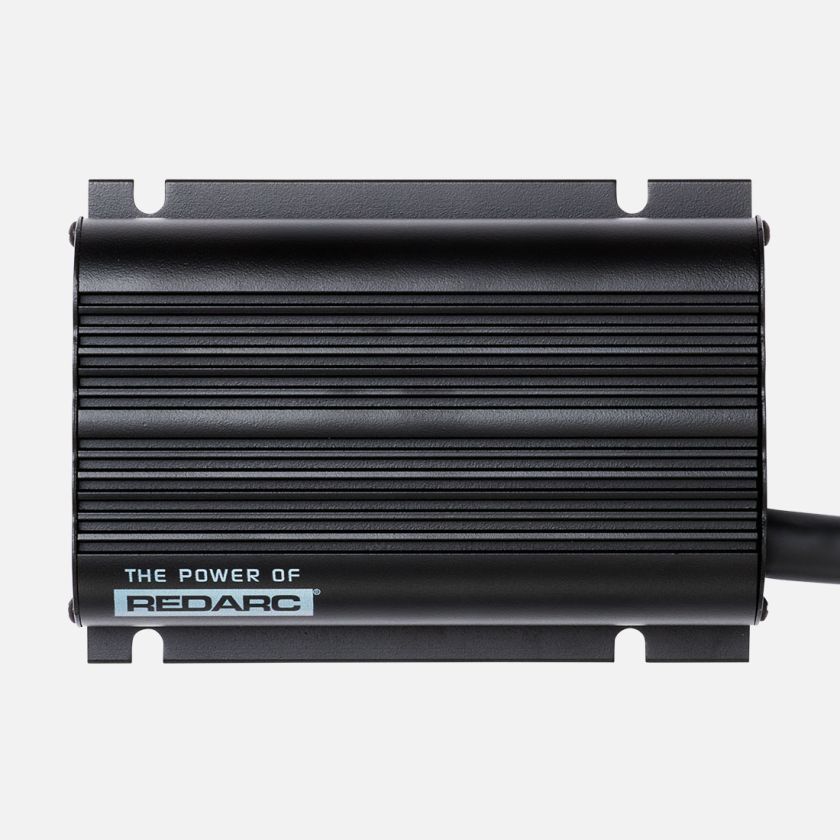

The REDARC BCDC1225D In-vehicle Dual Battery Charger is a 12 volt, 25A in-vehicle DC-DC battery charger designed to charge your secondary battery banks to 100% state of charge while on the move.
Features
- Separate DC and solar charging inputs
- Maximises the performance and life of your auxiliary battery
- Simultaneous DC and solar charging with Green Power Priority
- Suits 12V/24V standard and variable voltage/smart alternators
- Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
- Suitable for use on vehicles with conventional alternator charging systems
| WARRANTY | 2 Years |
| BATTERY CHEMISTRY | Standard Lead Acid, Calcium content, Gel, AGM or LiFePO4 type only |
| POWER TYPE - AC DC | DC TO DC |
| NOMINAL OUTPUT POWER | 375W |
| INPUT FUSE RATING | 40A (Not supplied) |
| SOLAR SWITCH ON VOLTAGE | 9V |
| SUITABLE FOR 12V SYSTEMS | Yes |
| SUITABLE FOR 24V SYSTEMS | Yes |
| SOLAR INPUT VOLTAGE | 9 - 32V |
| MPPT SOLAR REGULATOR | Yes |
| CABIN/ CANOPY INSTALL | Yes |
| NO LOAD CURRENT | <100mA |
| TRAILER INSTALL | Yes |
| ENGINE BAY INSTALL | Yes |
| MAX. CHARGING VOLTAGE | 15.3V |
| OUTPUT FUSE RATING | 40A (Not supplied) |
| OPERATING TEMPERATURE | -10°C to 80°C |
| OUTPUT VOLTAGE | 12V DC |
| MAX. RATED OUTPUT CURRENT | 25A |
| INPUT VOLTAGE | 9 - 32V |
| STANDBY CURRENT | <8mA |
| CONNECTOR TYPE | Bare wire |
| WEIGHT | 1 kg |
| WIDTH | 120 mm |
| HEIGHT | 37 mm |
| LENGTH | 165 mm |
