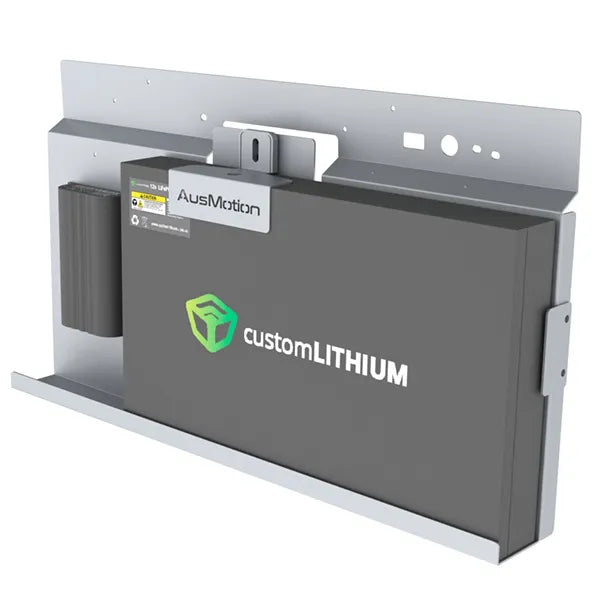

BATTERY MOUNT – HILUX (GEN 8 / N80) SUIT CUSTOM LITHIUM 100AH ULTRA SLIM BATTERY

Made to order – Please allow 3 weeks.

Custom Lithium Version

This version has been designed to fit the Custom Lithium 100Ah Ultra-Slim battery with either plastic or metal case.

Thanks to the Custom Lithium battery being more compact than some other brands, A DCDC charger (Not Included) is mounted on the back plate alongside the battery rather than on the end of the plate.

Vehicle Compatibility

Suitable for Toyota Hilux 2015+ (Gen8 AN120, AN130)

Installation Notes

Installed on the driver-side of the cab back wall.

The back plate includes pre-cut holes for two twin-midi fuse holders or two single-midi fuse holders (fuse holders not included).

No-drill installation, using original thread inserts and holes in the vehicle cab wall. No cutting of metalwork is necessary.

One hole in the cab wall cross-member needs to be tapped to convert it from a 5mm hole to an M6 bolt hole. An M6 thread tap can be purchased from hardware stores or online with fast delivery from Amazon by clicking here.

The contoured carpet panel on the back wall must be removed for installation. Once the battery is mounted you may decide to cut the panel and re-fit the remaining parts, but there will be little remaining on the driver side.

Installation of the battery mounting bracket takes around 30 minutes.

New bolts included.

Material

Stainless steel.
