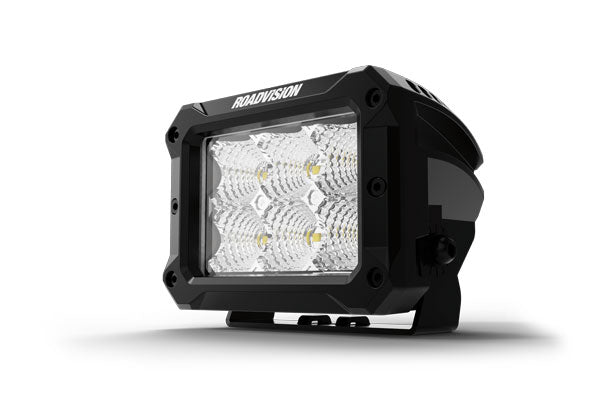

30 SERIES 30W LED FLOOD BEAM WORK LIGHT

ROADVISION’s RWL30 Series is a mid-size work lamp offering uncompromised performance and energy efficiency in an easy to install package. This versatile work lamp is small enough to fit most applications yet big enough to pack a punch, producing 2160lm of instant light. The RWL30 Series feature a super durable light weight diecast housing and polycarbonate lens, water and dust proof to IP67, allowing for worry free operation in even the toughest conditions.

• RWL30 Series LED work lamps produce up to 2160lm of instant light output
• 6 x 5W LED’s produce super white light close to daylight
• Multi-volt 10-30V DC input
• Super low current draw
• 50,000 hour LED lifespan with solid state technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP67 rated
• Simple 2 wire installation
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved

	MULTI-VOLT 10-30 VDC
	POLYCARB LENS
	ALUMINIUM HOUSING
	WATERPROOF
	DEUTSCH CONNECTOR
	5 YEAR WARRANTY

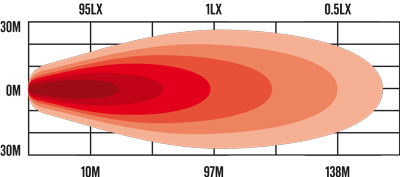

BEAM PATTERN

Part Number	RWL30F
Description	LED Work Lamp Flood Beam 10-30V
Beam Pattern	Flood
Maximum Lumens	2160lm
Input Voltage	10-30 VDC
Maximum Watts	30W
Maximum Lumens	2160lm
Number of LEDS	6 x 5W Osram LED’s
Current Draw @ 13.8V	2.32 Amps
Lux @ 10m	95LX
Distance @ 1 Lux	97m
Lens Construction	Polycarbonate
Housing Construction	Aluminium

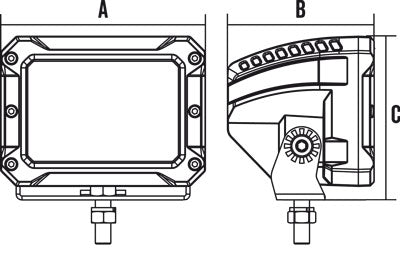

Dimensions AxBxC	106 x 78 x 85mm
Wiring	2 Pin Deutsch Plug
