REDARC

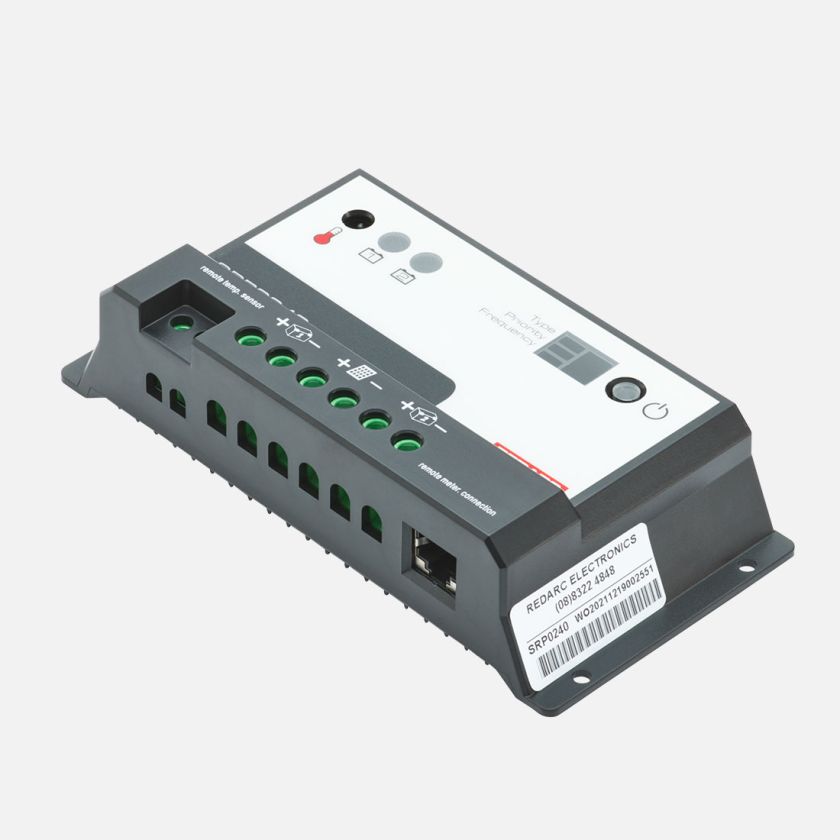

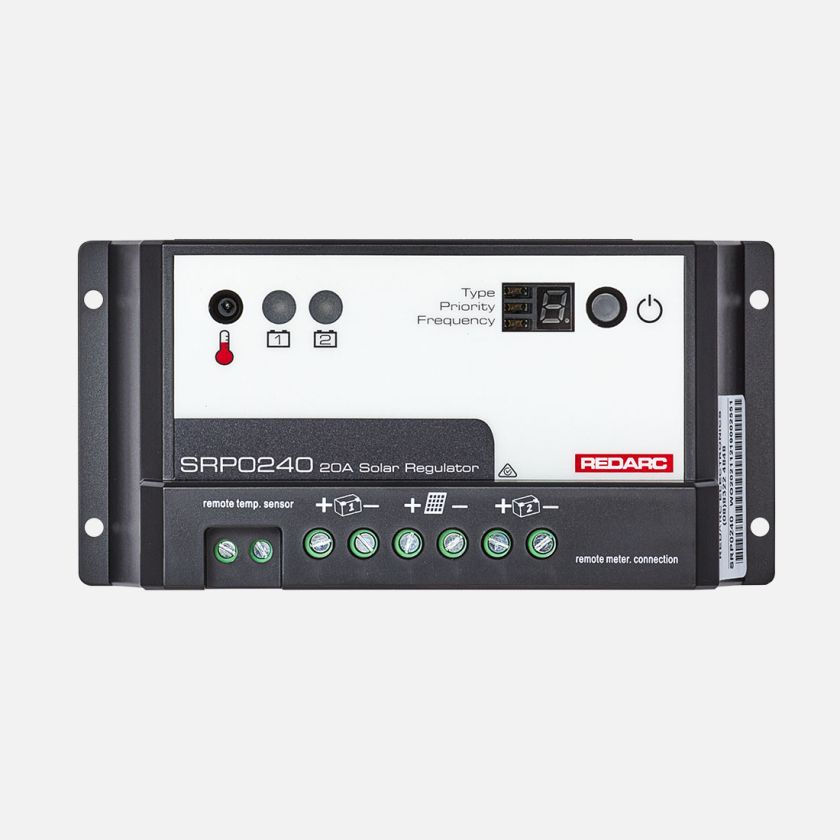

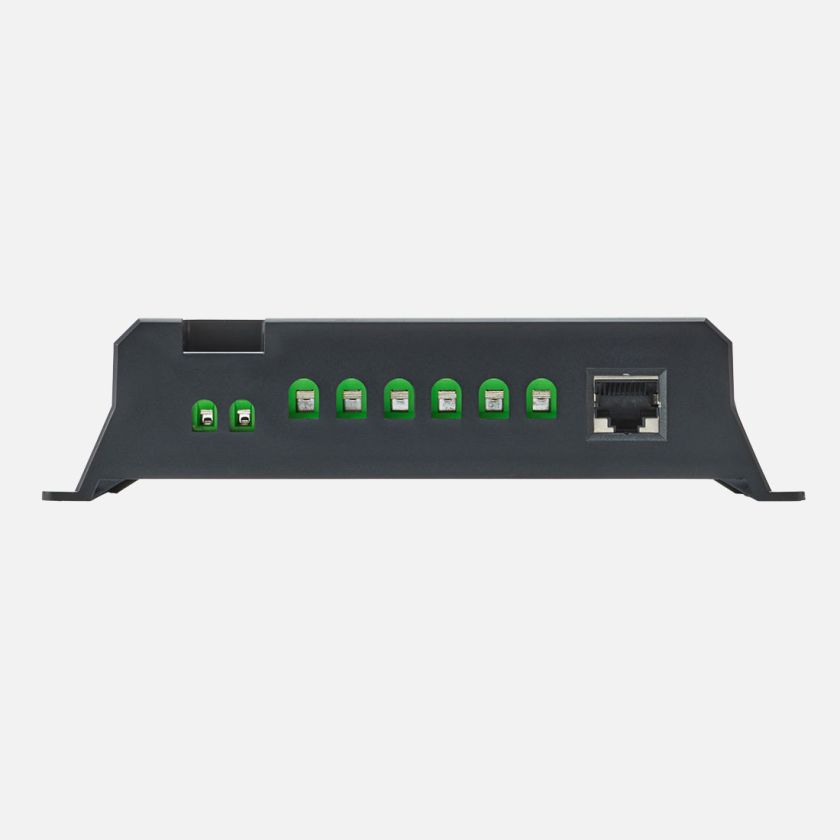

20A SOLAR REGULATOR

20A SOLAR REGULATOR

SRP0240

$145.00
$145.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

The REDARC 20A Solar Regulator ensures that the power supplied by 12 volt or 24 volt solar panels is regulated to the right voltage to charge auxiliary batteries.

FEATURES

  • Multi-stage charging
  • Dual battery outputs
  • LED indication
  • Remote monitor (optional)
  • Remote temperature sensor (optional)
  • 2 year warranty
CURRENT RATING  20A
STANDBY CURRENT <4mA
WEIGHT 240 g
HEIGHT 37 mm
WIDTH 76 mm
LENGTH 153 mm
WARRANTY 2 Years
SYSTEM VOLTAGE 12V / 24V DC
INPUT VOLTAGE 12V / 24V
MAX. CHARGING VOLTAGE 14.8V / 29.6V
MAX. RATED OUTPUT CURRENT 20A
