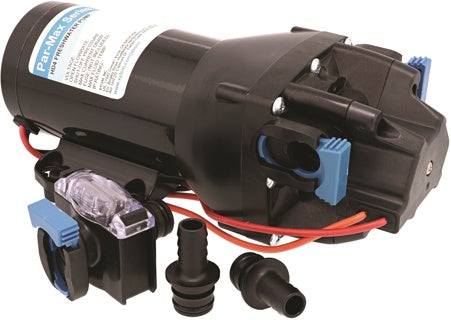

12V PAR MAX 4 HD FRESH WATER PUMP (15LPM)

These Heavy Duty (HD) Par-Max 4 freshwater pressure pumps offer robust construction and high performance. These new modern design pumps have a 4 chamber quad design pump head and offer pressure up to 60PSI. These heavy Duty (HD) models include a heavy duty wider diameter motor with a powder coated shell, cast aluminium end bells and lower housing - to improve pressure capability and offer longer life and exceptional performance. The ideal robust heavy duty pump for providing freshwater automatically to up to 4 outlets on pleasure craft up to approx the 13 metre (40 Ft) range. Includes a 40 mesh plug-in inlet strainer in the box with the pump. HD Quad 4 chamber automatic pressure pump gives flow up to 4 US Gallons per minute (15.2 litres per minute) and pressure up to 60 PSI. Serves up to 4 x 12mm outlets including galley, shower and additional faucet. The Par-Max 4.0 HD gives very smooth water flow even at low demand due to its built-in pulsation dampening by-pass valve which controls unwanted cycling and reduces noise. Inlet filter, corrosion resistant motor, soft rubber vibration dampening mounts and quick connect plug-in hose ports included - 2 x 12mm barbed for hose. 12 volt or 24 volt in 40PSI or 60 PSI cut-out pressure versions

Features and Benefits

• Fully automatic operation with built-in pressure switch
• Pressure switch 40PSI or 60PSI cut off
• Up to 15.2 litres 4 US gallons per minute flow
• Serves up to 4 x 12mm (1/2) outlets on board simultaneously
• Modern 4 chamber design gives smooth flow and quiet operation
• Built-in internal by-pass lowers water pulsation
• Self primes to 2.4 metres (8 feet)
• Can be installed vertically or horizontally
• Can be run dry for short periods without damage
• Powerful heavy duty ignition protected motor with thermal protection TCO
• Vibration dampening base plate & feet for quiet efficient operation
• Available in both 12 volt & 24 volt in both 40PSI & 60PSI versions
