12V 400Ah Stackable LiFePO4 Battery

🔋 VanLiFe 12V 400Ah Stackable LiFePO4 Battery

LiFePO4 12.8V | 300A BMS | Stackable Steel Case | Built for Serious Off-Grid Power

The VanLiFe 12V 400Ah Stackable Lithium Battery is designed for high-demand 12V power systems where large capacity, strong discharge performance, and clean installation are essential.

With a powerful 300A continuous charge and discharge BMS, this battery is capable of supporting serious inverter setups, making it ideal for caravans, motorhomes, 4WD builds, marine systems, off-grid solar, and mobile power applications.

Built inside a sealed zinc-plated, powder-coated steel enclosure, the VanLiFe 400Ah features a vent outlet, integrated mounting holes, and a stackable design for clean, secure system expansion.

⚡ Key Features

🔋 Massive 400Ah Capacity
Delivers serious usable power for large 12V setups, including fridges, inverters, lighting, pumps, appliances, and full off-grid systems.

⚡ Supports High-Power Inverter Systems
Designed to power demanding setups, including inverter systems up to 3500W when correctly installed with suitable cabling, fusing, and charging equipment.

🔌 300A Continuous Discharge
Built for heavy loads and high-current applications.

🔋 300A Continuous Charge Capability
Supports fast charging from compatible lithium chargers, solar systems, and DC-DC charging systems.

⚖️ Active + Passive Cell Balancing
Helps maintain cell health, improve efficiency, and support long-term battery reliability.

🛡️ Advanced BMS Protection
Protects against over-current, over-voltage, under-voltage, high temperature, and low temperature conditions.

🧰 Stackable Steel Enclosure
Designed with mounting holes for secure installation and stacking multiple units.

📘 AS/NZS3001.2:2022 Installation-Focused Design
Includes vent outlet and protection features required for modern compliant installation setups.

🔥 Built for Serious Applications

The VanLiFe 400Ah Stackable is ideal for running:

✔ Large inverters
✔ Caravan power systems
✔ Fridges and freezers
✔ Induction cooking
✔ Coffee machines
✔ Pumps and lighting
✔ Solar storage systems
✔ Off-grid touring setups
✔ Mobile business power systems

🔒 BMS Protection Specifications

🌡️ Temperature Protection

🔌 Charging Profile

For best performance, use a lithium-compatible charger with the following settings:

• Bulk Charge: 14.2V – 14.6V
• Ideal Bulk Charge: 14.4V
• Absorption: 14.2V – 14.6V
• Ideal Absorption: 14.4V
• Float: 13.4V – 13.6V
• Ideal Float: 13.5V

🔄 Long Cycle Life

The automotive-grade cells used in this battery are designed to withstand 3000 cycles at 80% depth of discharge under heavy electric vehicle use.

That means daily cycling from full charge down to 20% state of charge would take approximately 8.2 years to reach 3000 cycles. In lighter applications such as caravan, RV, and storage systems, service life may be even longer.

📊 Technical Specifications

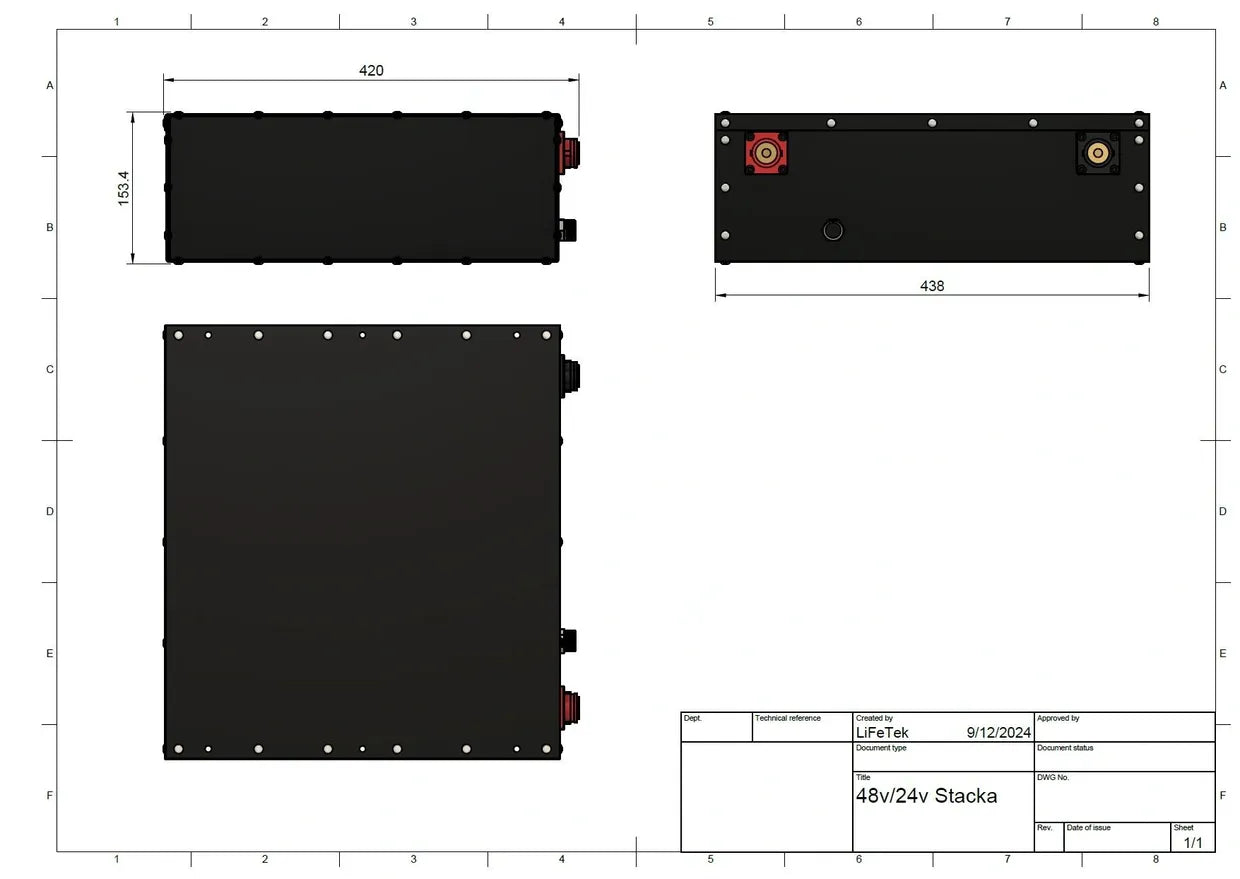

📏 Dimensions

• Length: 438mm
• Width: 420mm
• Height: 153.4mm

🏕️ Ideal Applications

🚐 Caravans & motorhomes
🚙 4WD canopy systems
☀️ Off-grid solar storage
⛵ Marine power systems
🏕 Camper trailers
🔌 High-output inverter setups
🚚 Mobile business power systems
🏡 Backup power systems

✅ Why Choose the VanLiFe 400Ah Stackable?

✔ Huge 400Ah lithium capacity
✔ Powerful 300A continuous charge and discharge capability
✔ Suitable for high-demand inverter systems
✔ Active and passive cell balancing
✔ Durable powder-coated steel case
✔ Stackable design for expandable systems
✔ Vent outlet for compliant installation setups
✔ Long-life automotive-grade lithium cells
✔ Designed for serious off-grid and mobile power applications

🛒 Build a Stronger 12V Power System

Upgrade to the VanLiFe 12V 400Ah Stackable Lithium Battery and power your setup with high-capacity, high-output lithium performance built for demanding conditions.
