THUMPER

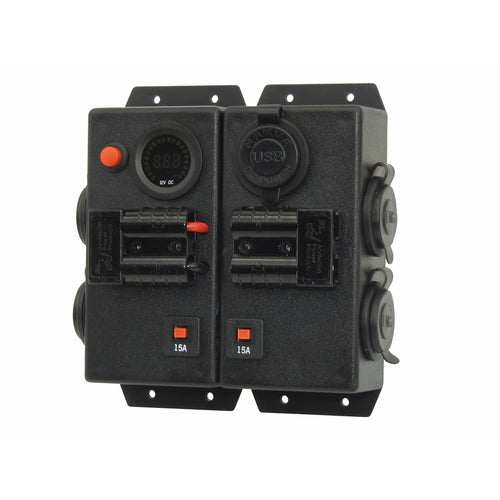

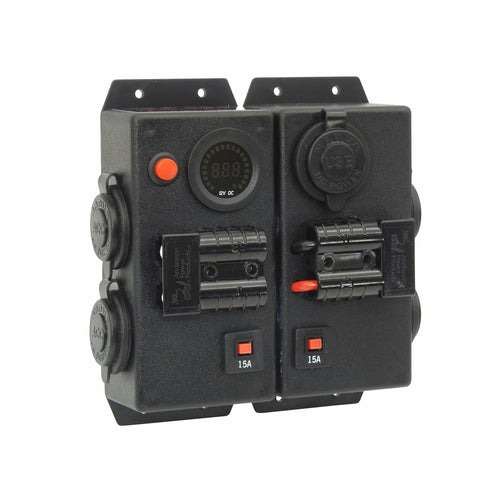

12V/24V DOUBLE CONTROL BOX - 2X CIGARETTE 2X ENGEL 1X DUAL USB 2X ANDERSON
12V/24V DOUBLE CONTROL BOX - 2X CIGARETTE 2X ENGEL 1X DUAL USB 2X ANDERSON
SKU:DCBV-2A-M-E-U
Couldn't load pickup availability
- 2 x Marine Grade Cigarette sockets (12 Volt 16Amps / 24 Volt 8 Amps)
- 2 x Engel Fridge outlet socket (12 Volt and 24 Volt)
*** THIS SOCKET WILL NOT FIT CIGARETTE PLUGS ***
- 1 x DUAL USB outlet - rated to min of 2.4Amps
- 2 x Genuine 50Amp Anderson connector (not fused within box)
- 1 x Digital Volt meter (2.5V ~ 30V) current (consumption < 30mA) -Fully sealed
This gauge will more accurately read the voltage of both Lithium and lead acid batteries
2 x 15Amp Manuel reset circuit breaker - connected to outlets sockets

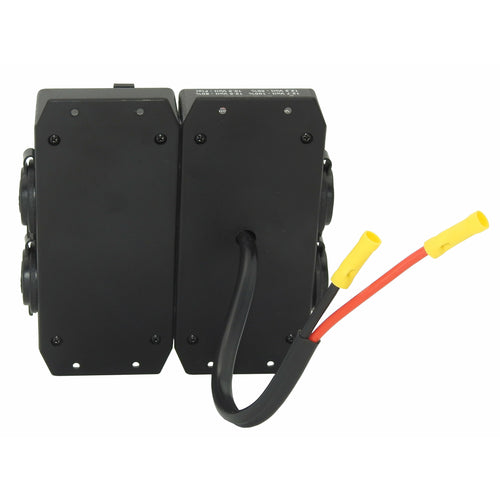

- 1 x approx. 250mm length 6mm Twin core cable with yellow crimp joiners
* Please note: It is recommended to install an in line fuse or circuit breaker in line of the positive cable feeding back to the battery. This box is not fused
Dimensions:
Width across face of both boxes - 135 mm
Depth including sockets - 55 mm
Height (including all terminals) - 160 mm
** All measurements include sockets **
2 Year Warranty
