VICTRON ENERGY

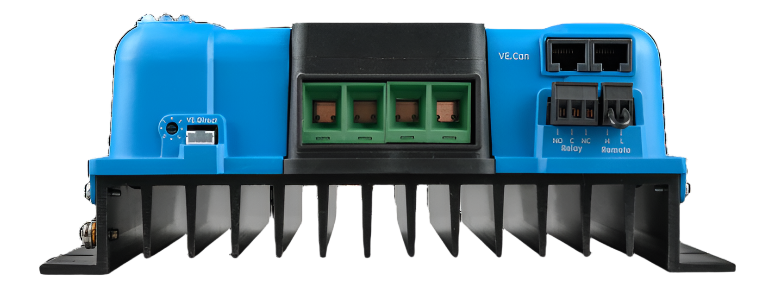

SMARTSOLAR MPPT 150/70-TR VE.CAN
SMARTSOLAR MPPT 150/70-TR VE.CAN
SKU:SCC115070411
Regular price
$640.50
Regular price
$782.00
Sale price
$640.50
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
A solar charger gathers energy from your solar panels and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
Optional SmartSolar Control Display
By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.
| Battery voltage | 12 / 24 / 48 V Auto Select (software tool needed to select 36 V) |
| Rated charge current | 70 A |
| Nominal PV power @ 12V (A) | 1000 W |
| Nominal PV power @ 24V (A) | 2000 W |
| Nominal PV power @ 36V (A) | 3000 W |
| Nominal PV power @ 48V (A) | 4000 W |
| Max. PV short circuit current (B) | 50 A |
| Maximum PV open circuit voltage | 150 V absolute maximum coldest conditions 145 V start-up and operating maximum |
| Maximum efficiency | 98 % |
| Charge voltage 'absorption' | 14,4 / 28,8 / 43,2 / 57,6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'float' | 13,8 / 27,6 / 41,4 / 55,2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth) |
| Charge voltage 'equalization' | 16,2 V / 32,4 V / 48,6 V / 64,8 V (adjustable) |
| Charge algorithm | multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Data communication port | VE.Can, VE.Direct and Bluetooth |
| Remote on/off | Yes (2 pole connector) |
| Parallel operation | Yes: up to 10 units can be synchronized with Bluetooth |
| Weight | 3 kg |
| Dimensions (h x w x d) | 185 x 250 x 95 mm |
| Data stored | Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
| Number of days trends data is stored |
46 |
(A) If more PV power is connected, the controller will limit input power.
The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
(B) A PV array with a higher short circuit current may damage the controller.
