VICTRON ENERGY

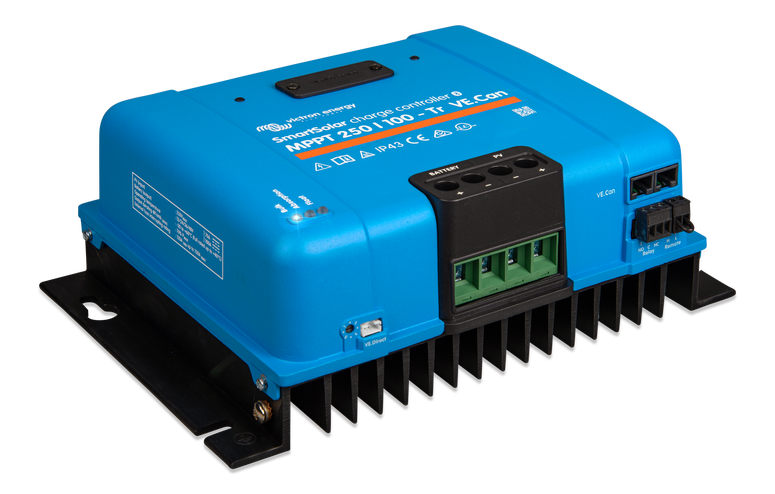

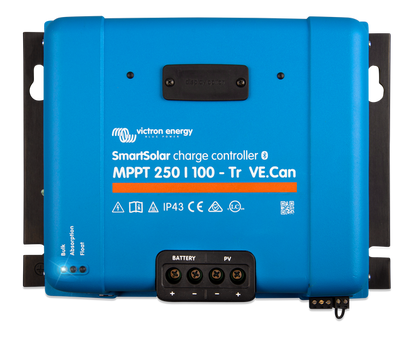

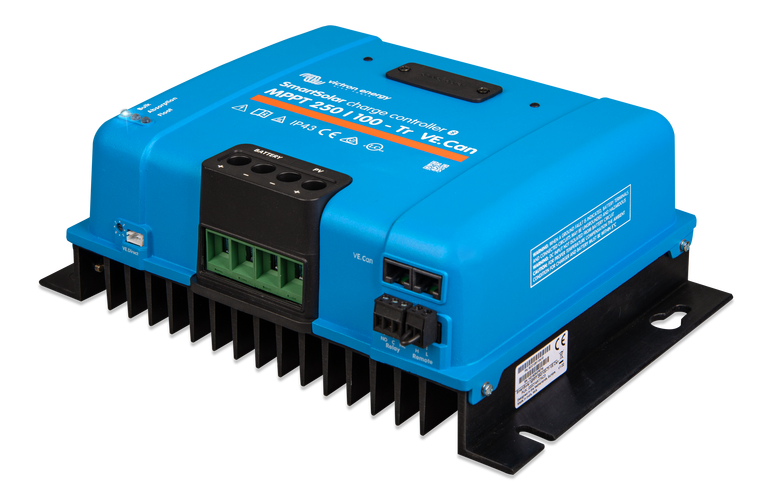

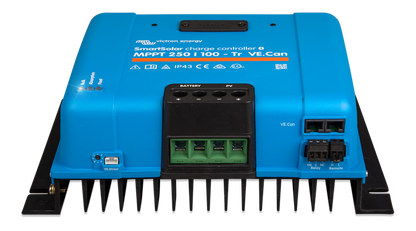

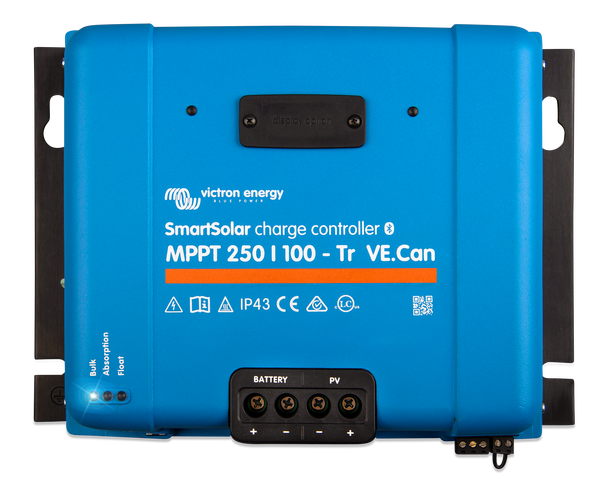

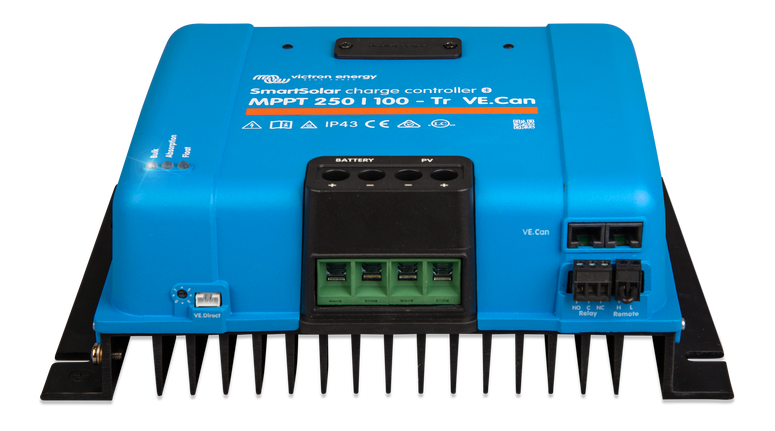

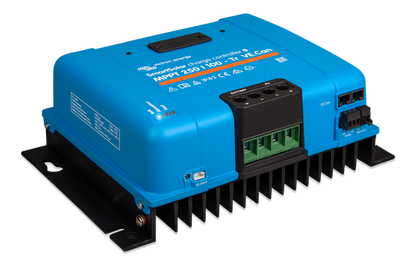

BLUESOLAR MPPT 250/100-TR VE.CAN
BLUESOLAR MPPT 250/100-TR VE.CAN
SKU:SCC125110441
Regular price
$941.50
Regular price
$1,149.50
Sale price
$941.50
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
MPPT: Ultra Fast Maximum Power Point Tracking
By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.
Remote Monitoring and Control
Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.
| Battery voltage | 12 / 24 / 48 V Auto Select (software tool needed to select 36 V) |
| Rated charge current | 100 A |
| Nominal PV power @ 12V (A) | 1450 W |
| Nominal PV power @ 24V (A) | 2900 W |
| Nominal PV power @ 36V (A) | 4350 W |
| Nominal PV power @ 48V (A) | 5800 W |
| Max. PV short circuit current (B) | 70 A |
| Maximum PV open circuit voltage | 150V resp. 250V absolute maximum coldest conditions 145V resp. 245V start-up and operating maximum |
| Maximum efficiency | 99 % |
| Charge voltage 'absorption' | Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct) |
| Charge voltage 'float' | Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable: rotary switch, display, VE.Direct) |
| Charge voltage 'equalization' | Default setting: 16,2V / 32,4V / 48,6V / 64,8V (adjustable) |
| Charge algorithm | multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Data communication port | VE.Direct and VE.Can |
| Remote on/off | Yes (2 pole connector) |
| Parallel operation | Yes, parallel synchronised operation with VE.Can (max. 25 units) |
| Weight | 4.5 kg |
| Dimensions (h x w x d) | 216 x 295 x 103 mm |
(A) If more PV power is connected, the controller will limit input power.
The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.
(B) A PV array with a higher short circuit current may damage the controller.
