BLUE APPLE
BLUE APPLE 165W TRI FOLD SOLOR PANEL
BLUE APPLE 165W TRI FOLD SOLOR PANEL
SKU:BA165TRI
Regular price
$529.00
Regular price
Sale price
$529.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Blue Apple Mono crystalline portable 165 watt Tri fold solar panel is made with the highest quality A - grade silicon cells and come with a full 25 year performance warranty and 10 year structural warranty.
Mono crystalline panels make for fantastic portable panels due to the all rounded efficiency with all levels of light, working extremely well in areas of high light and even maintaining a fantastic output in low light or overcast conditions.
The 165 watt Tri fold has the ability to harness up to 10 Amps per hour (with an average output of 8-9 Amps)
This neat design consists of 3 x 55 watt panels hinged together; two panels fold inwards (glass facing one another) and one panel faces out. Once folded, the panel can slide straight into the provided carry bag, allowing for easy transport.
Portable panels can allow the user to harness up to a massive 12 hours of sunlight a day (depending on your location and the time of the year).
This means that the 165 watt Tri fold panel CAN produce up to 95 Amps per day! In most cases the 165 watt Tri fold panel would allow the user to continuously keep up with the draw of an 80-110Lt compressor type fridge plus more (when combined with approx a 60-80 Ah battery).
The input power of a portable panel is largely dependent on the user of the panel. Keep in mind that if like your late mornings and you do not put your panel in the sun until the afternoon, you may need to consider a larger panel to compensate for the time you would miss in the mornings.
Every Blue Apple panel is fitted with diode protection, eliminating the chance for the solar cells to rob power from one another when in the shade. The diode protection will also eliminate any chance of power being robbed from the batteries at night.
DIMENSIONS - UNFOLDED
Length – 2230mm
Height – 535mm
Depth – 30mm
DIMENSIONS - FOLDED
Length – 698mm
Height – 535mm
Width - 100mm
10 Year Structural Warranty
25 Year Performance Warranty
Mono crystalline panels make for fantastic portable panels due to the all rounded efficiency with all levels of light, working extremely well in areas of high light and even maintaining a fantastic output in low light or overcast conditions.
The 165 watt Tri fold has the ability to harness up to 10 Amps per hour (with an average output of 8-9 Amps)
This neat design consists of 3 x 55 watt panels hinged together; two panels fold inwards (glass facing one another) and one panel faces out. Once folded, the panel can slide straight into the provided carry bag, allowing for easy transport.
Portable panels can allow the user to harness up to a massive 12 hours of sunlight a day (depending on your location and the time of the year).
This means that the 165 watt Tri fold panel CAN produce up to 95 Amps per day! In most cases the 165 watt Tri fold panel would allow the user to continuously keep up with the draw of an 80-110Lt compressor type fridge plus more (when combined with approx a 60-80 Ah battery).
The input power of a portable panel is largely dependent on the user of the panel. Keep in mind that if like your late mornings and you do not put your panel in the sun until the afternoon, you may need to consider a larger panel to compensate for the time you would miss in the mornings.
Every Blue Apple panel is fitted with diode protection, eliminating the chance for the solar cells to rob power from one another when in the shade. The diode protection will also eliminate any chance of power being robbed from the batteries at night.
BYPASS REGULATOR OPTION:
The 165 watt Tri fold panel is fitted with BYPASS Andersons.
The 165 watt Tri fold panel is fitted with BYPASS Andersons.

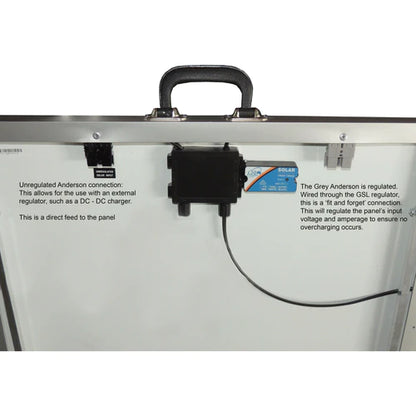

This means that the Grey 50 Amp Anderson is REGULATED and wired to the GSL regulator that is fitted to the panel. This connection will control the input charge from the solar panel and will ensure no overcharging occurs.
What if you have another regulator you would like to use?
No Problem!
This panel is fitted with a unique UNREGULATED Anderson (Black). This option allows a DIRECT feed to the panel and will allow you to use an external regulator (such as a DC - DC charger!)
Each panel is equipped with its own set of heavy duty anodized aluminum legs which can be adjusted to allow the panel to sit at any angle allowing for optimum performance to be achieved. At the bottom of each aluminum leg there are rubber feet fitted which will prevent the panel from slipping on smooth surfaces.
- 165 watt Tri Fold Mono crystalline panel
- GSL 12 Amp solar waterproof regulator

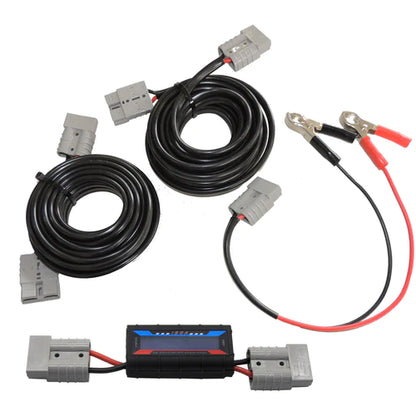

- 2 x 5 meters 6mm Twin core cable with Anderson
- Anderson to Alligator clips
- Heavy Duty Canvas Carry Bag
- Amp meter and Extension lead kit - see photo
- Regulated Anderson (Grey)
- Unregulated Anderson (Black)
Panel Type BA - 165TRI
Maximum Power (Pmax) 165W
Voltage at Pmax (Vmp) 19.5V
Current at Pmax (Imp) 8.25A
Open Circuit Voltage (Voc) 21.50V
Short Circuit Current (Isc) 9.15A
Normal Operating Cell
Temp(NOCT) 48±2⁰C
Max System Voltage 1000V
DIMENSIONS - UNFOLDED
Length – 2230mm
Height – 535mm
Depth – 30mm
DIMENSIONS - FOLDED
Length – 698mm
Height – 535mm
Width - 100mm
10 Year Structural Warranty
25 Year Performance Warranty
